Cape Point 2429-5E

Over 2,000 Sq. Ft.

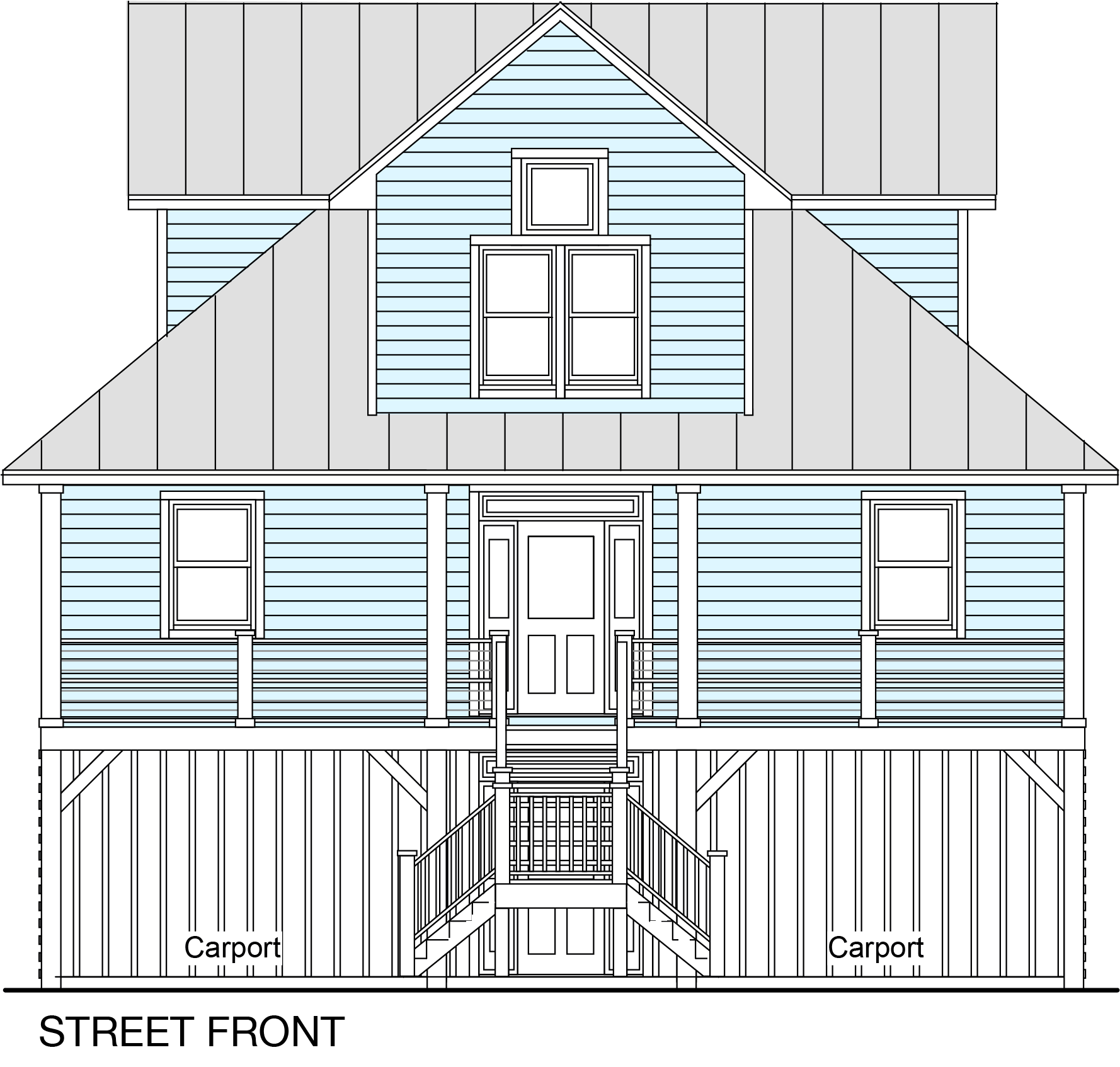

Drawing of the front elevation of a two-story house featuring a porch with stairs, railings, and columns, windows on both floors, and a steeply pitched roof with multiple sections. The house is labeled as 'STREET FRONT' with two carports at ground le

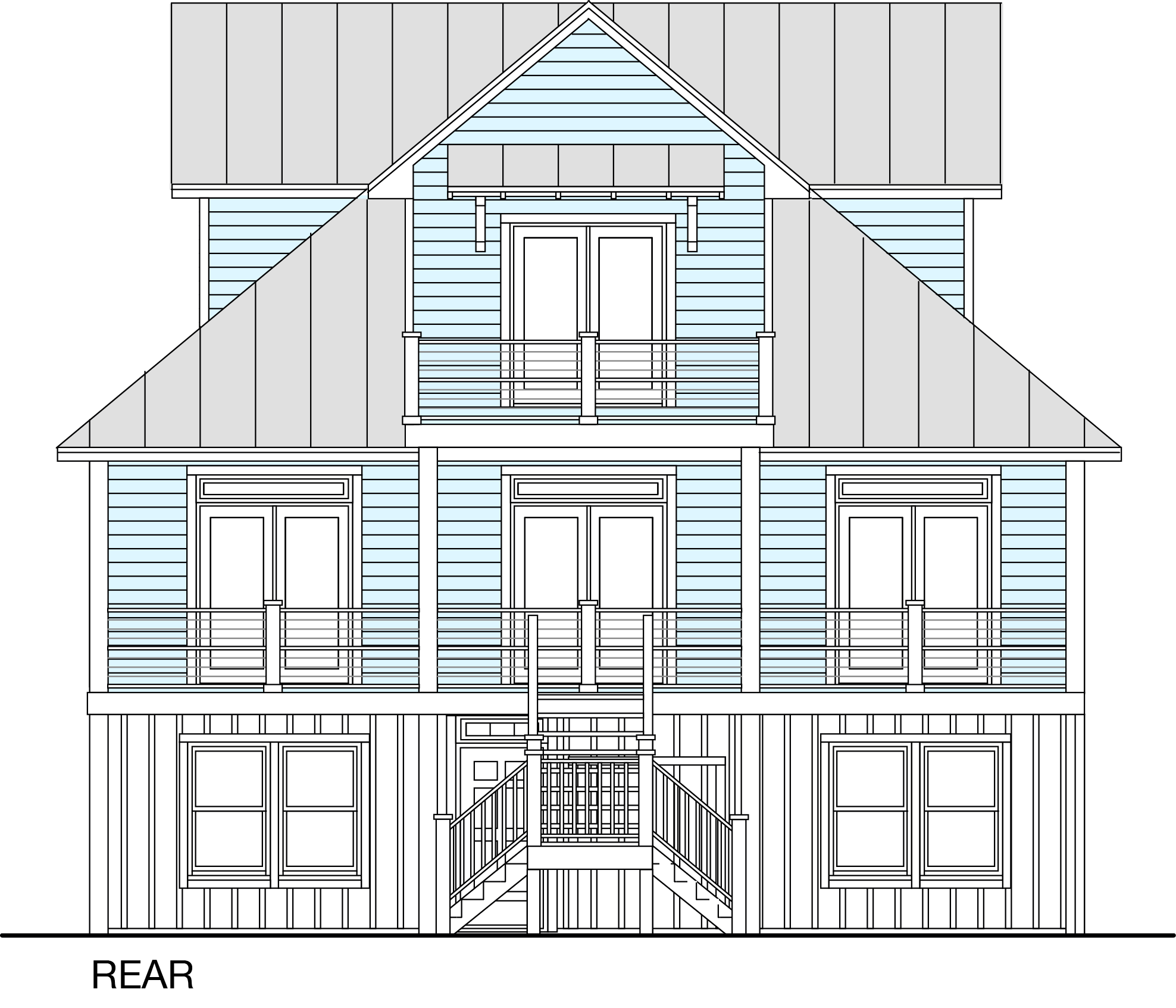

Blueprint illustration of a three-story house rear view, highlighting exterior features like windows, doors, balconies, stairs, and siding in shades of blue, gray, and white.

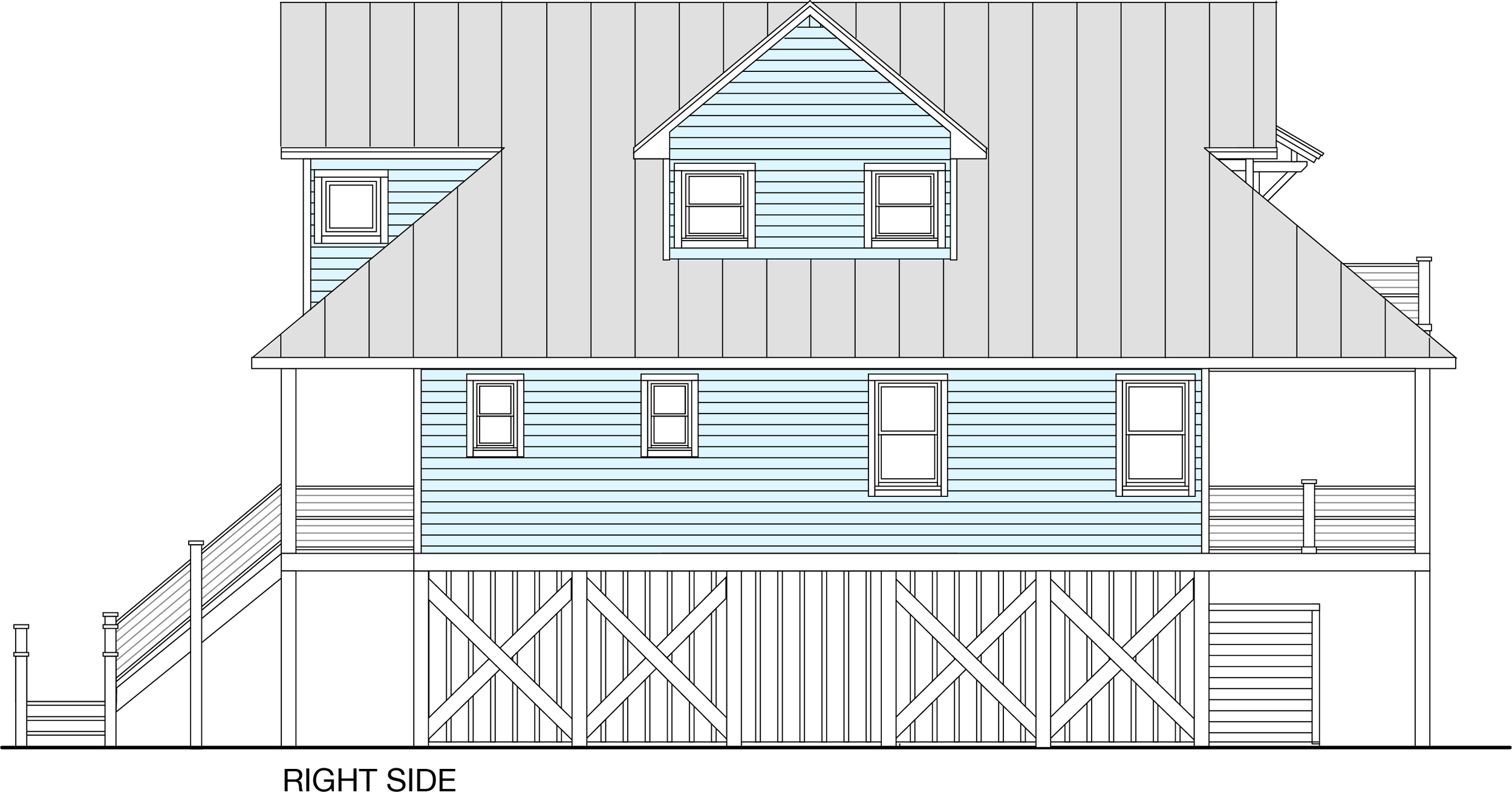

Architectural drawing of the right side of a house with blue siding, multiple windows, and a steep gable roof.

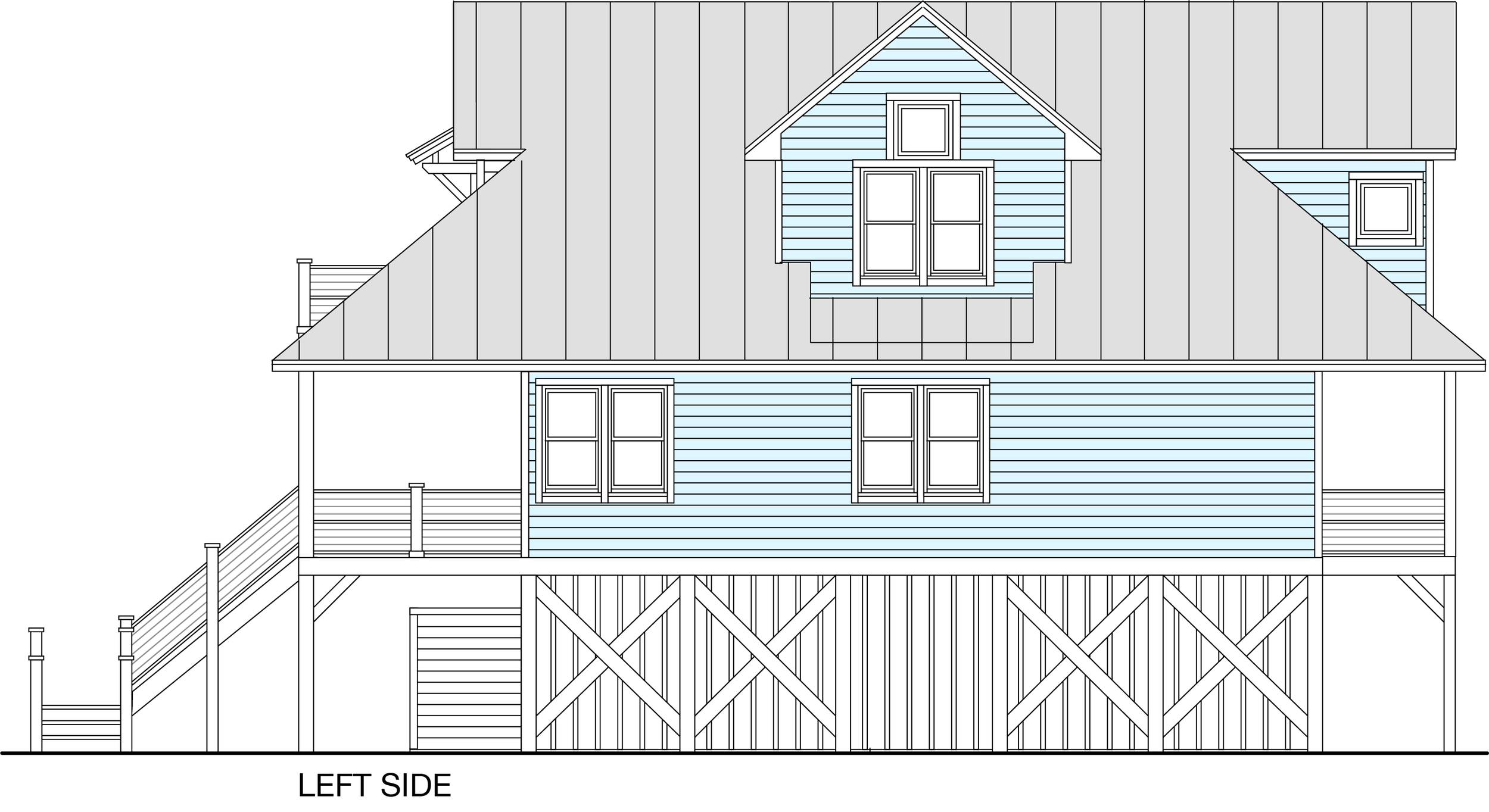

Line drawing of a house's left side, showing windows, balcony, staircase, and supporting beams.

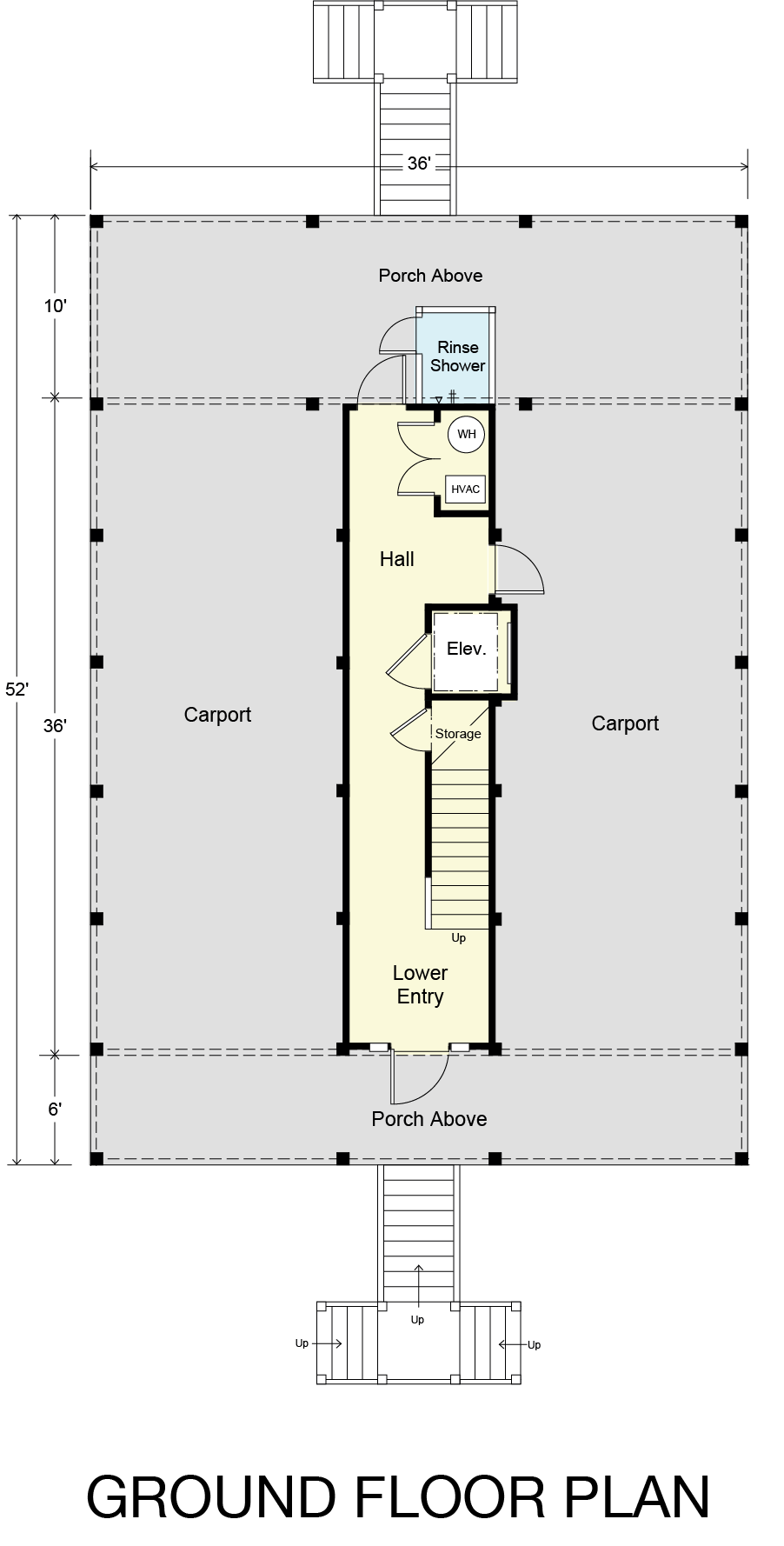

Ground floor plan of a house with porches, carports, a main hall, stairway, storage, elevator, and utility area with a rinse shower.

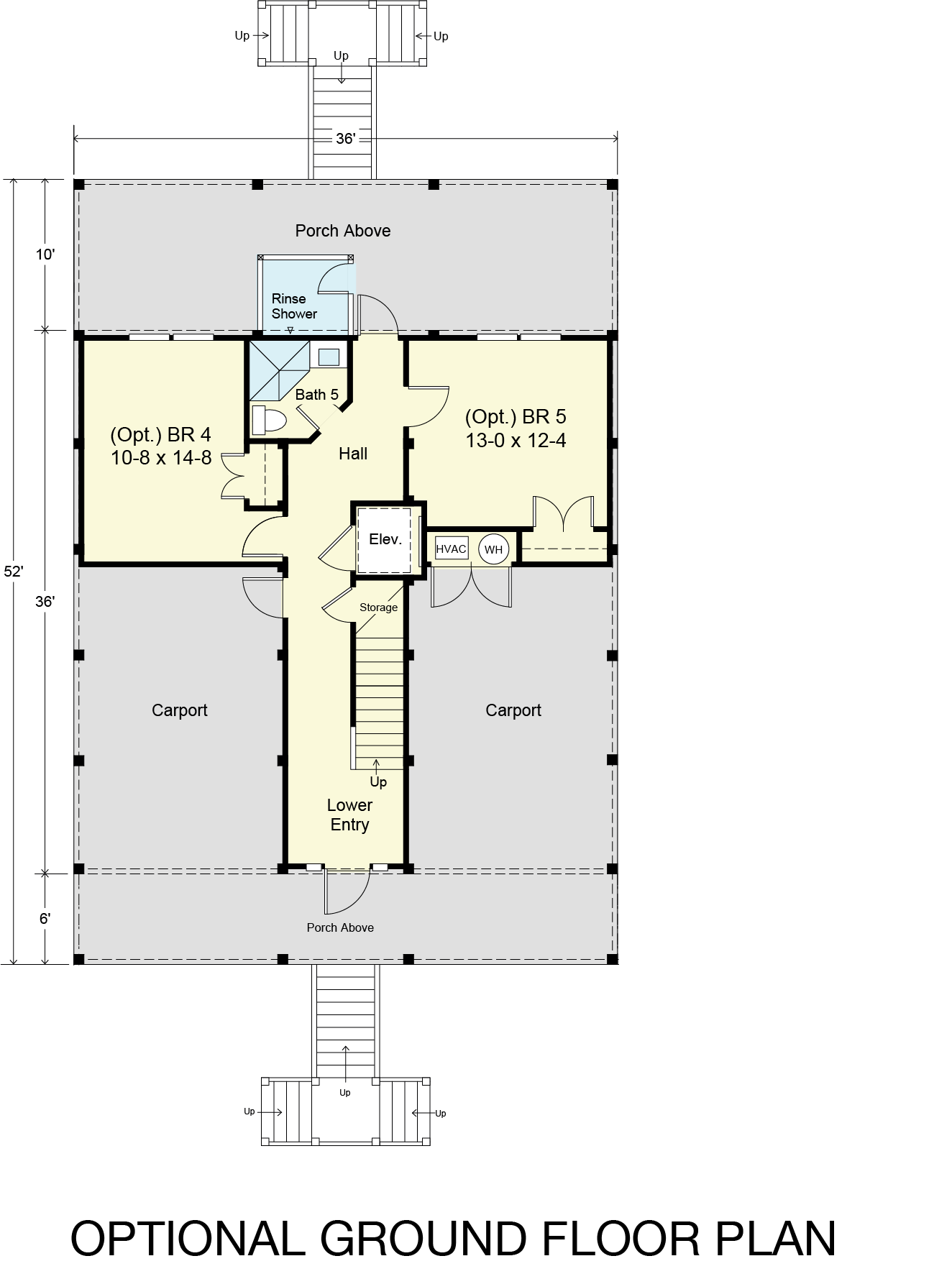

Floor plan of a house's optional ground level with two carports, a stairway to a porch above, a lower entry, an elevator, storage, a hall, two optional bedrooms, a bathroom, a porch above with a rinse shower, and mechanical rooms.

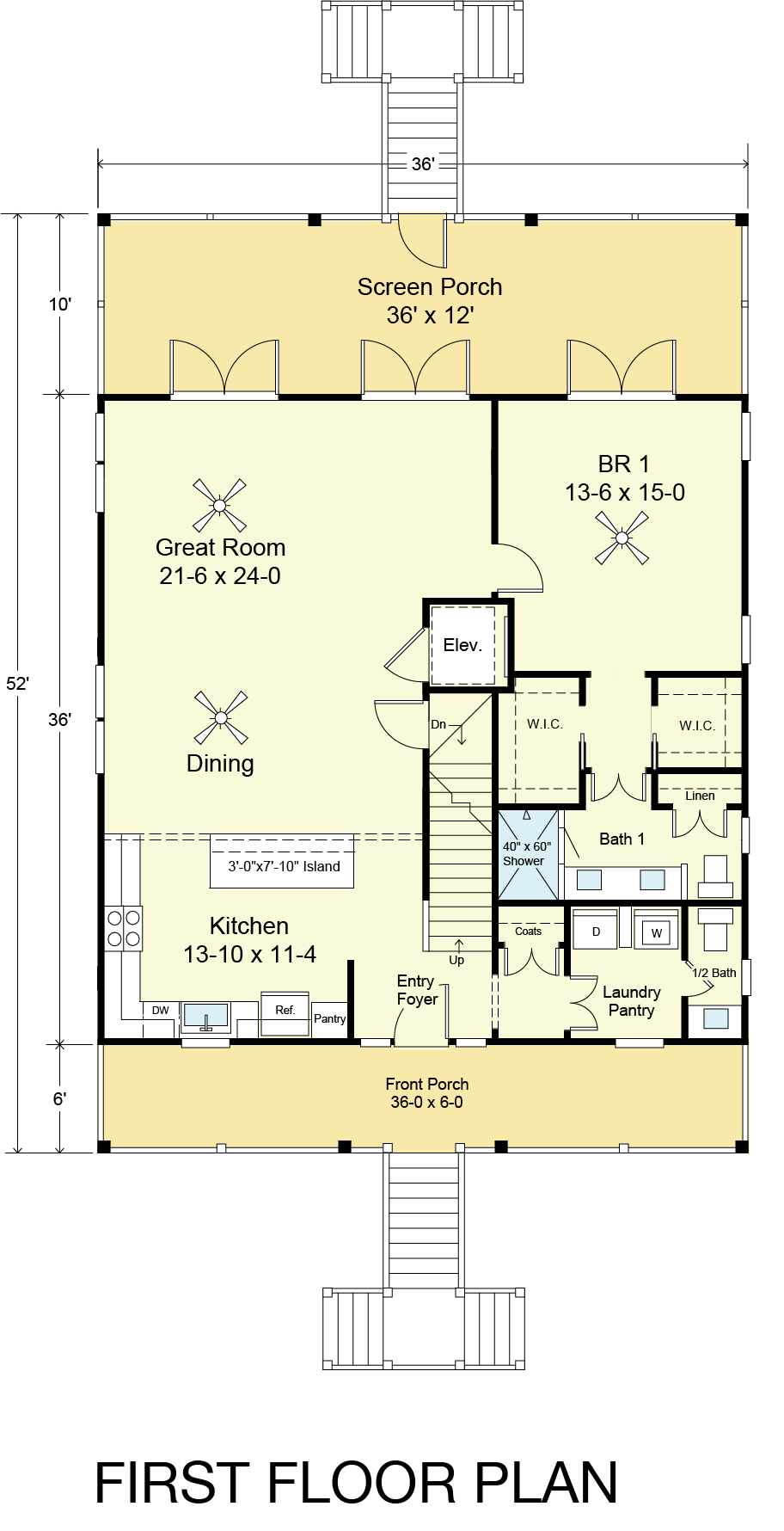

Detailed first floor house plan showing front porch, entry foyer, kitchen, dining, great room, bedroom, bathroom, laundry, porch, staircase, and various rooms with dimensions.

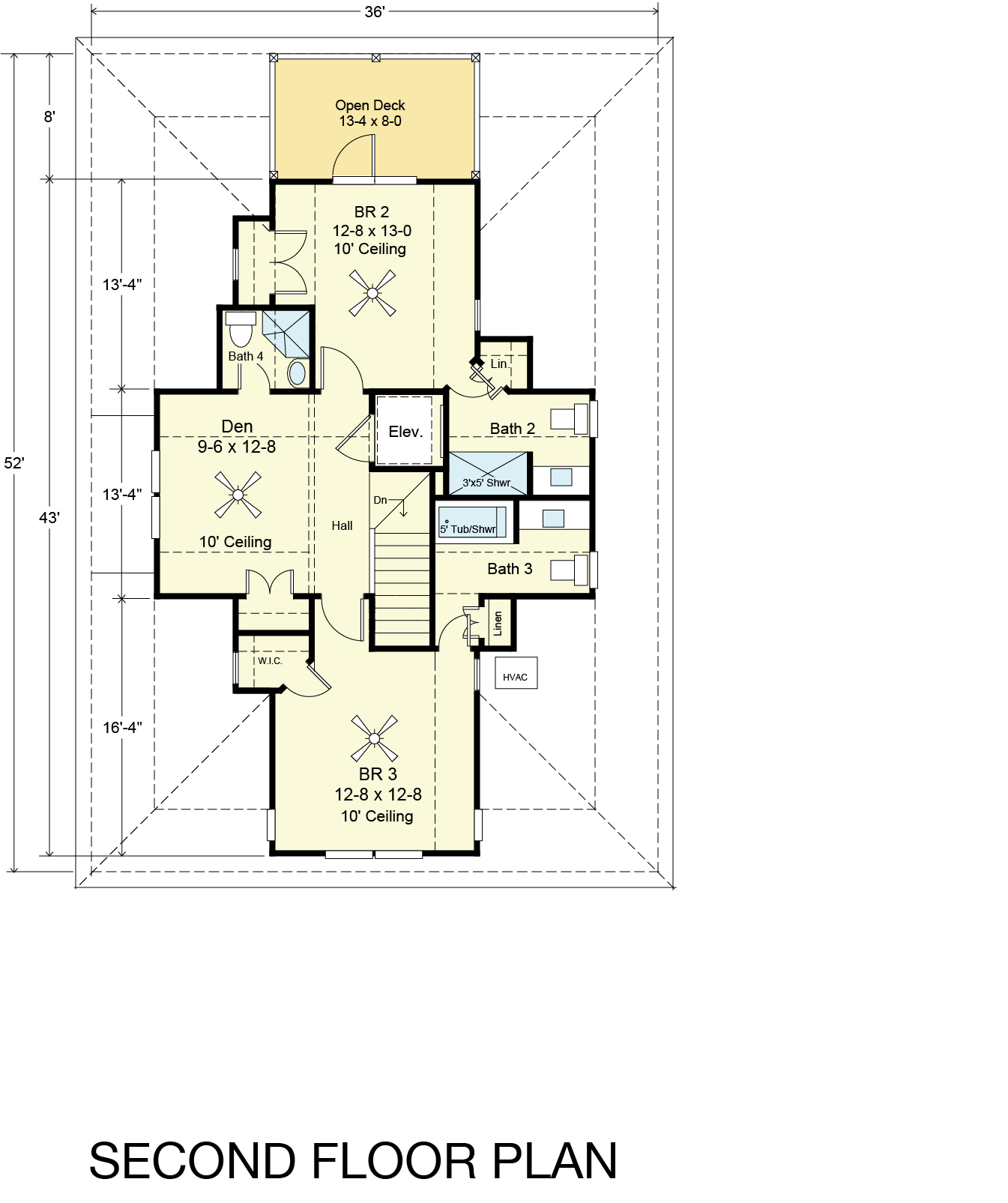

Second floor house plan with bedrooms, bathrooms, open deck, den, and staircases.

Square Feet

2429.4 to 2838.1

Elevation

34’-8”

Number of Floors

3

Elevator

Yes

Bathrooms

3 to 4

Bedrooms

3 to 5

Dimensions

36’-0” wide x 52’-0” deep x 34’-8” high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

9'-0"

Second Floor Ceiling Height

8'-0" to 10'-0"

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Cape Point 2429-5E is a beautiful beach cottage with three to five bedrooms, out of which two bedrooms are optional on the ground floor. It also has three to four full bathrooms and a spacious living area of 2429.4 to 2838.1 square feet, which includes an elevator. This cottage has an excellent floor plan for empty-nesters, where all features are conveniently located on the first floor. The ground floor can either have an open carport or an enclosed garage. This cottage is perfect for those who want an extensive plan in a compact space that also fits under any 35' height requirements.
