Driftwood 1632-4E

Under 2,000 Sq. Ft.

Architectural drawing of a multi-story house's front elevation, featuring two levels of balconies with railings, multiple windows, a gabled roof, and designated areas for carports on the ground level.

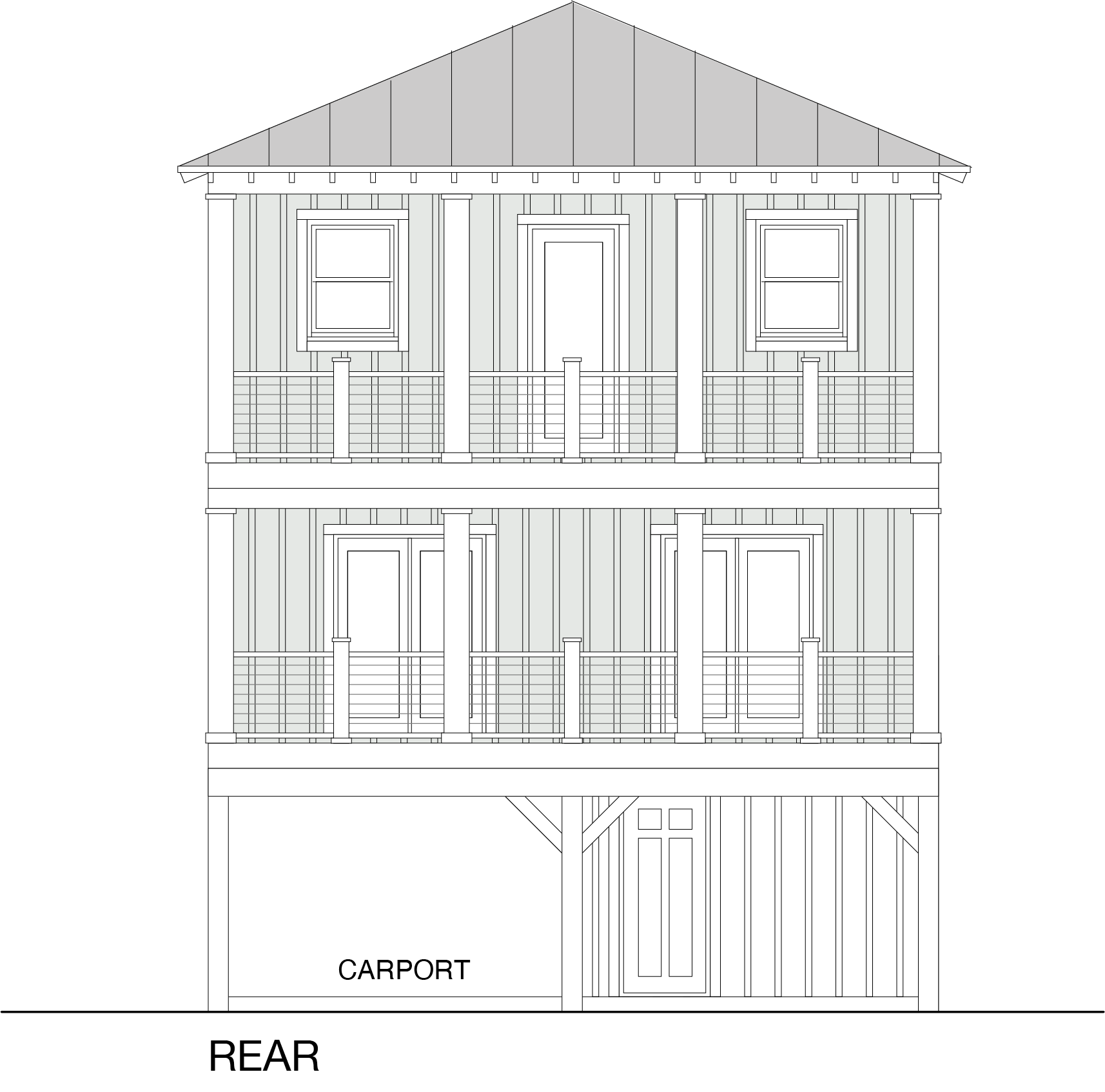

Architectural blueprint of the rear view of a two-story house with two balconies, including a carport at the bottom, and detailed windows, doors, and railings.
Architectural drawing of the right side of a three-story wooden building with a sloped roof, balconies with railings, and multiple windows, including a barn door at the bottom.

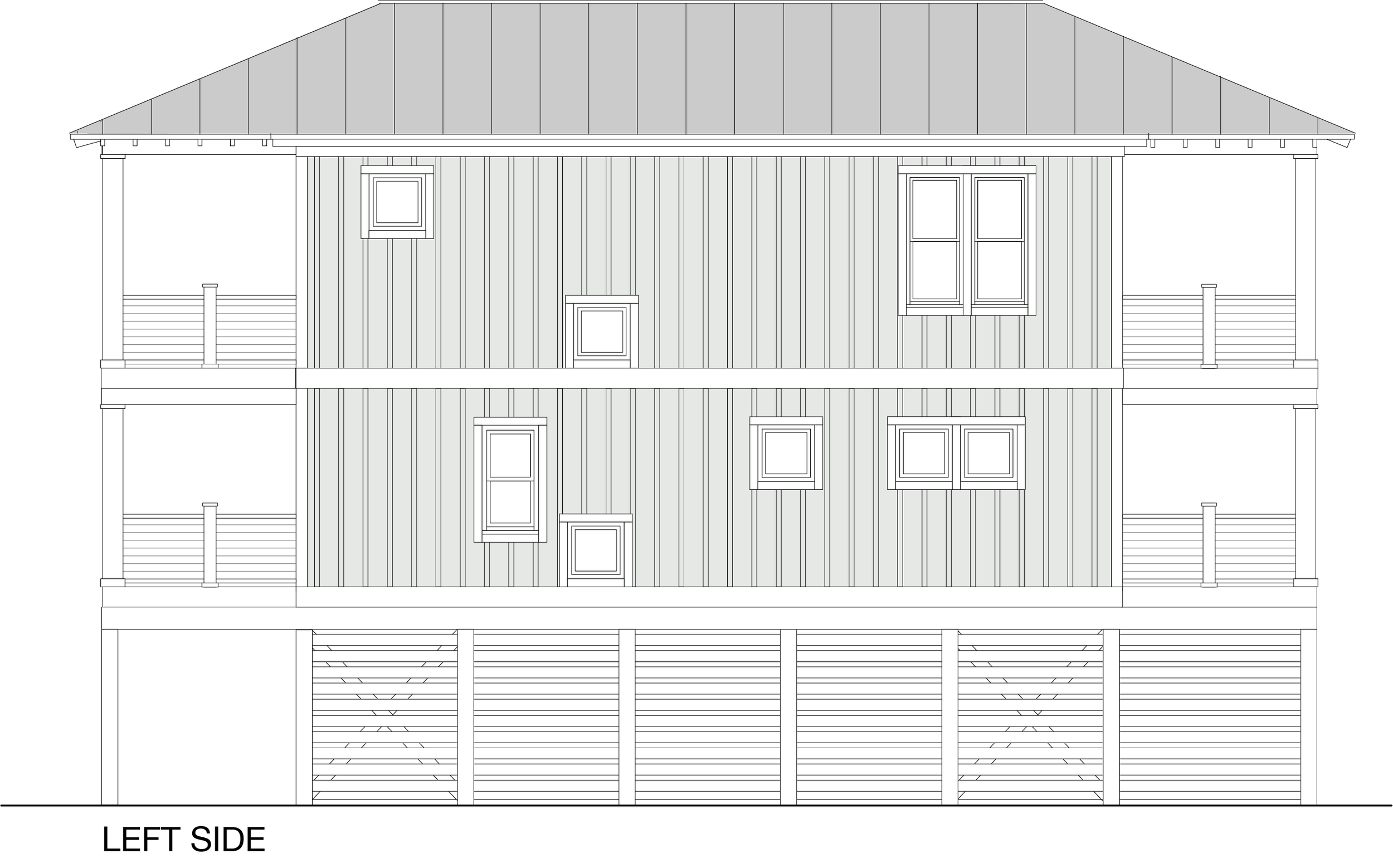

Line drawing of the left side of a multi-story house with a sloped roof, featuring several windows, balconies, and a fenced area at the bottom.

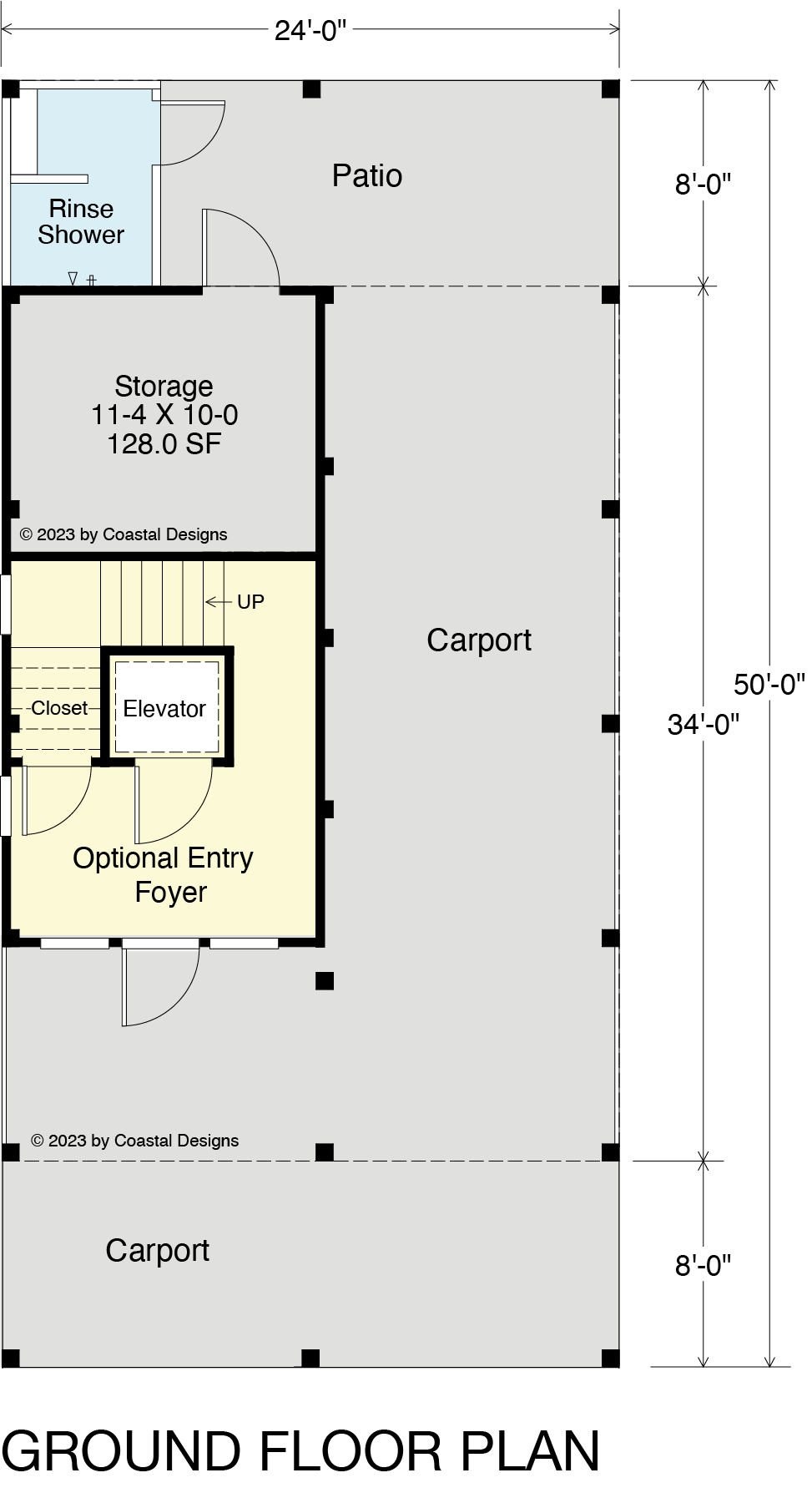

Ground floor plan with a carport at the front, an entry foyer with a closet and elevator, a storage room, a rinse shower, a patio, and an additional carport at the back.

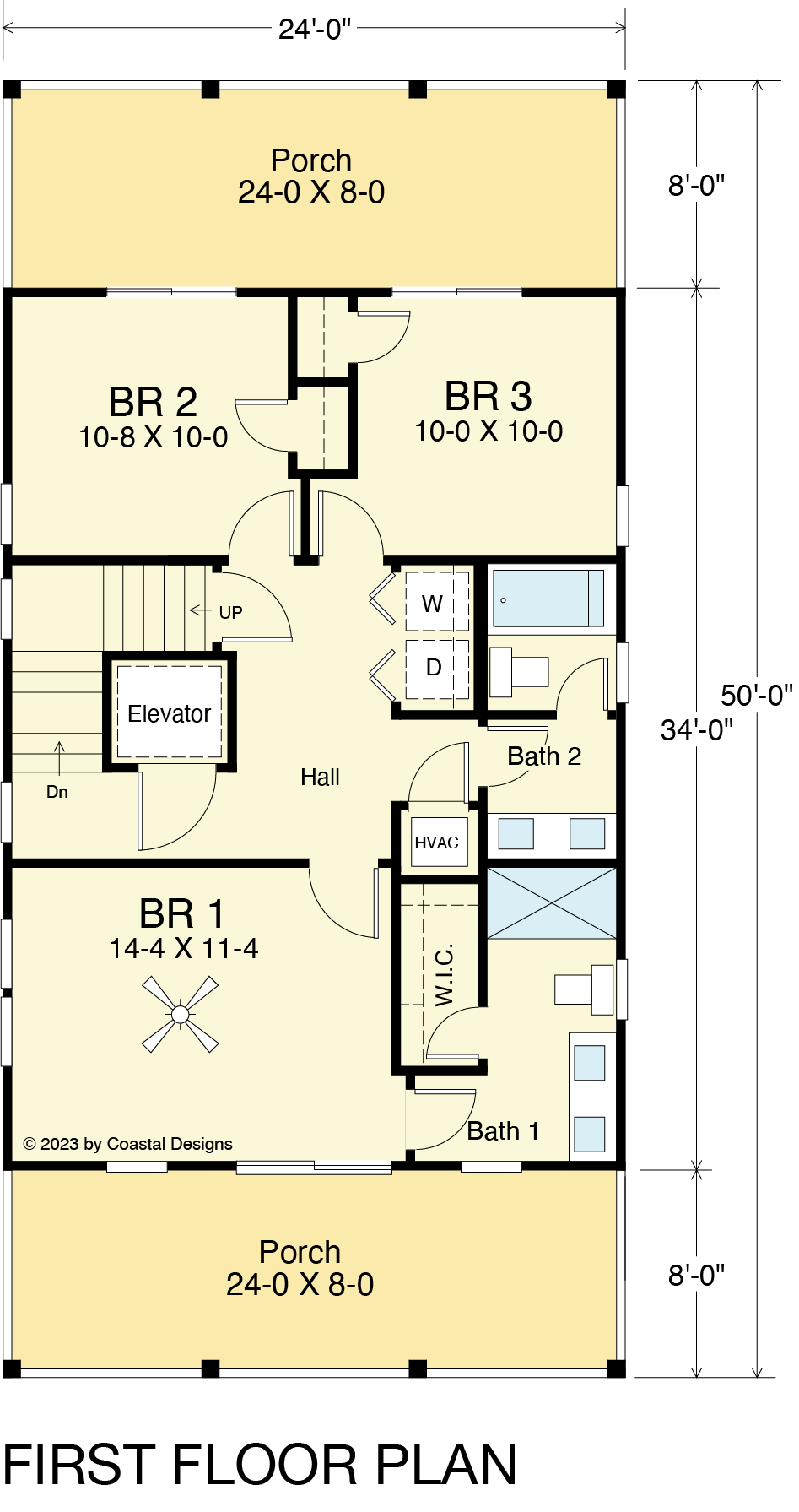

Detailed floor plan of a house's first floor showing three bedrooms, two bathrooms, a hall, a walk-in closet, an elevator, a laundry area, and two porches.

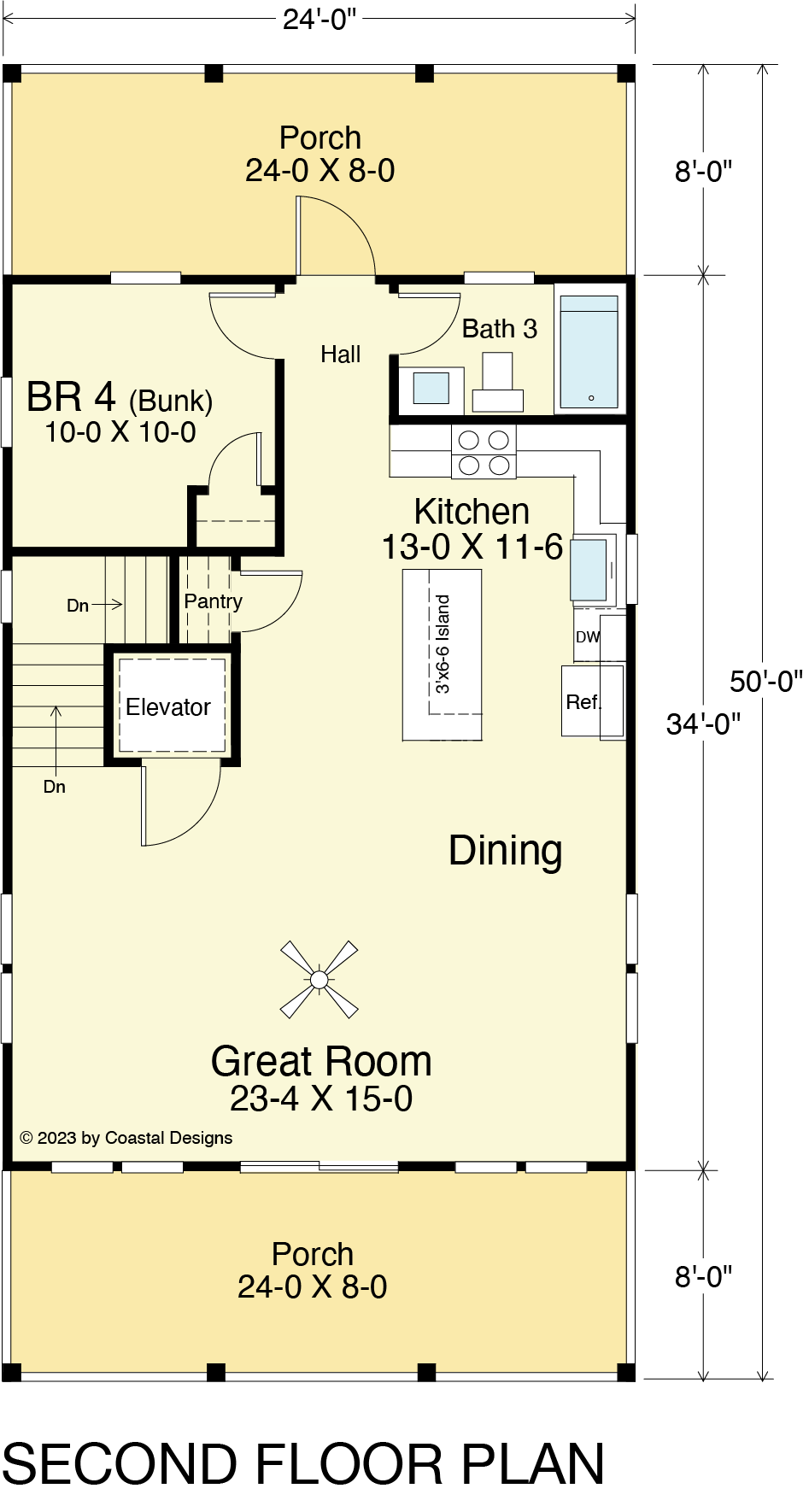

Second floor plan of a house with a porch, great room, dining area, kitchen, hall, bathroom, bedroom with a bunk bed, pantry, elevator, and stairs.

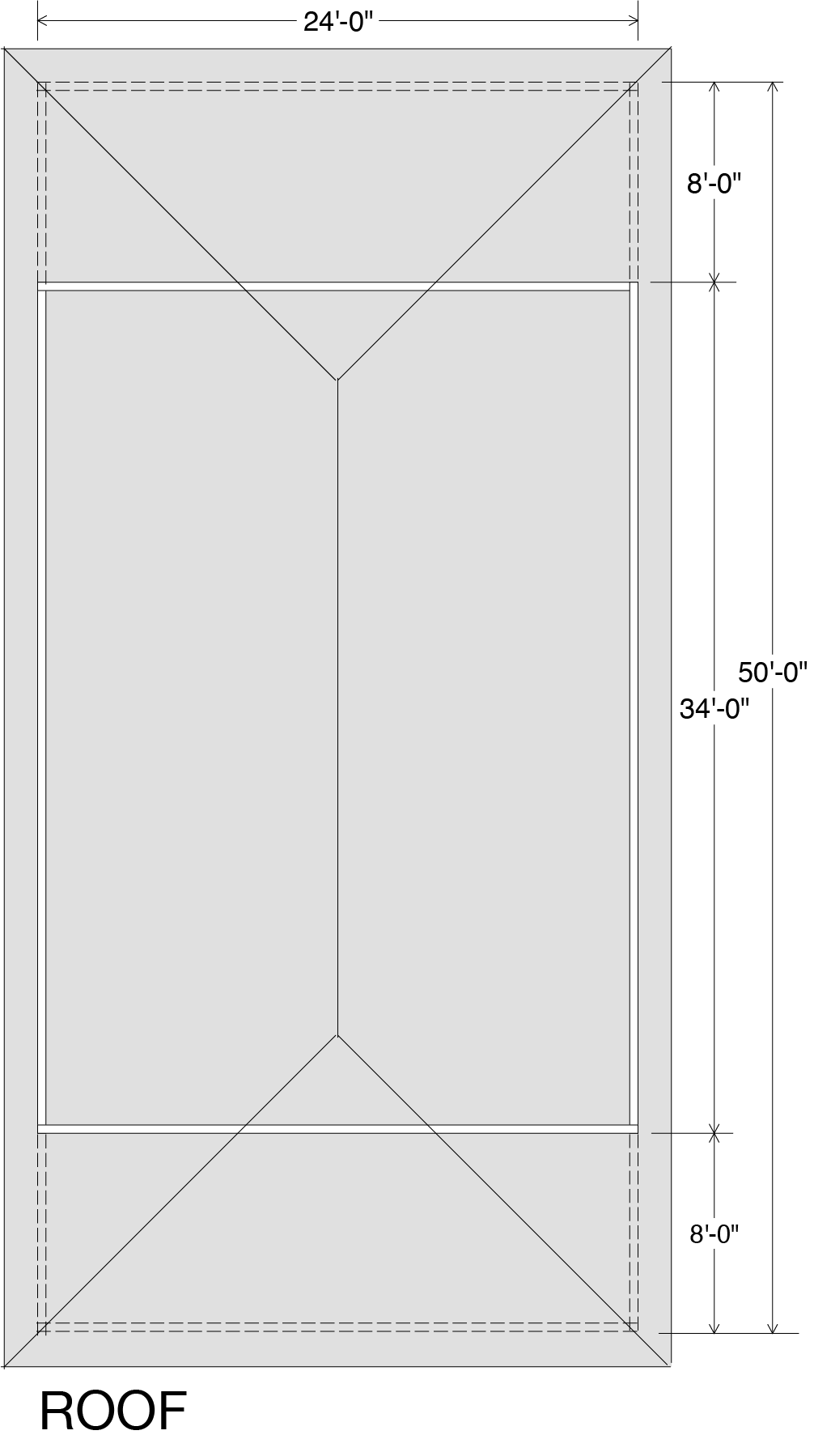

Architectural drawing of a roof plan with dimensions, including 24 feet by 50 feet overall measurement, and additional measurements of 8 feet for roof overhangs and 34 feet for the main roof span.

Square Feet

1632

Elevation

33’-6”

Number of Floors

3

Elevator

Yes

Bathrooms

3

Bedrooms

4

Dimensions

24’-0” wide x 50’-0” deep x 33’-6” high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

8’-0”

Second Floor Ceiling Height

9’-0”

Third Floor Ceiling Height

9’-0” (Roof)

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Driftwood 1632-4E cottage is remarkable, offering a range of features often only found in larger cottages. This cottage has four bedrooms, three full baths, and an impressive living space. The top-floor Great Room offers stunning views and features dramatic vaulted ceilings typically seen in larger properties.

DETAILED LAYOUT

Ground Floor: This level includes a carport, storage area, patio, rinse shower, and an optional entry foyer.

First Floor: On this floor, you'll find porches at the front and back of the cottage, with the main bedroom located at the front. The main bedroom features an ensuite bathroom and a walk-in closet, adding a touch of luxury. There's a washer/dryer closet in the hall, two guest bedrooms, and a shared bathroom.

Second Floor: The second floor comprises porches at the front and back, a spacious great room located at the front, a dining area, and a kitchen complete with an island and pantry. This floor also includes an additional bedroom (bunk room) and another shared bathroom.
