Ketch 2856-7E

Over 2,000 Sq. Ft.

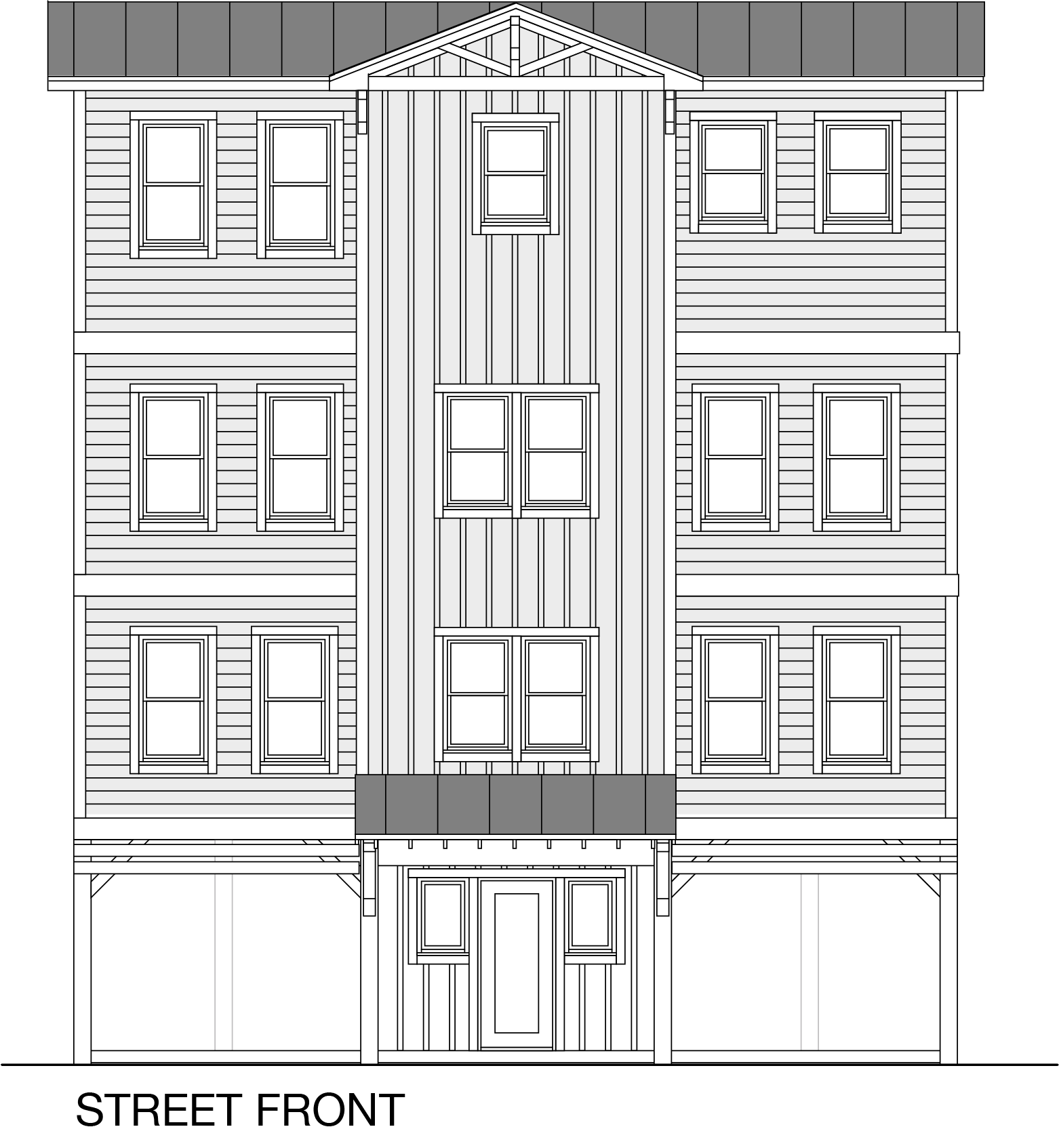

Black and white blueprint drawing of a three-story house with a gable roof, multiple windows, and a front door. The house has horizontal and vertical siding details and is labeled 'Street Front' at the bottom.

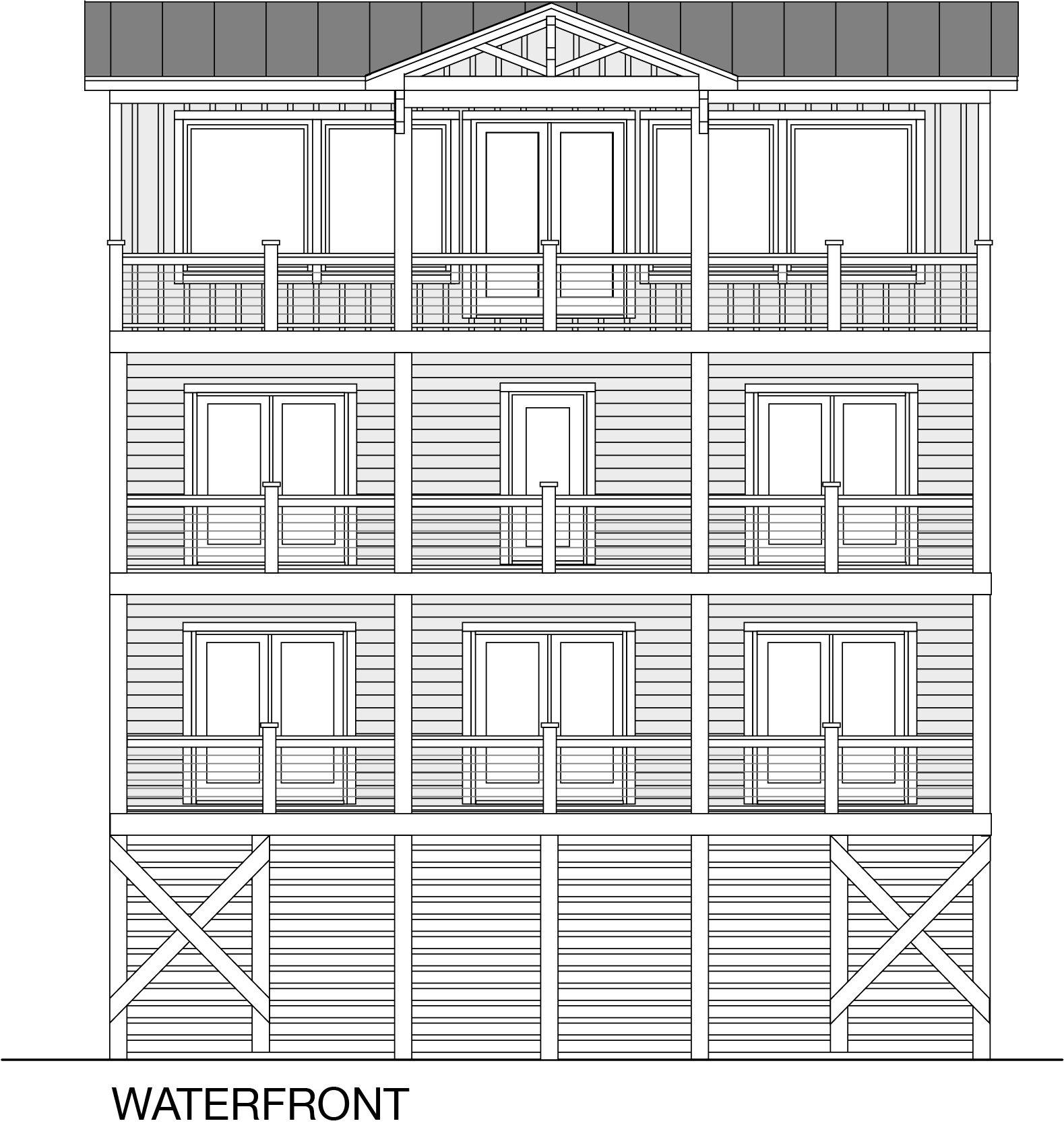

Blueprint of a waterfront multi-story house with wooden siding, multiple sliding doors leading to balconies with railings, a gabled roof, and support beams at the base.

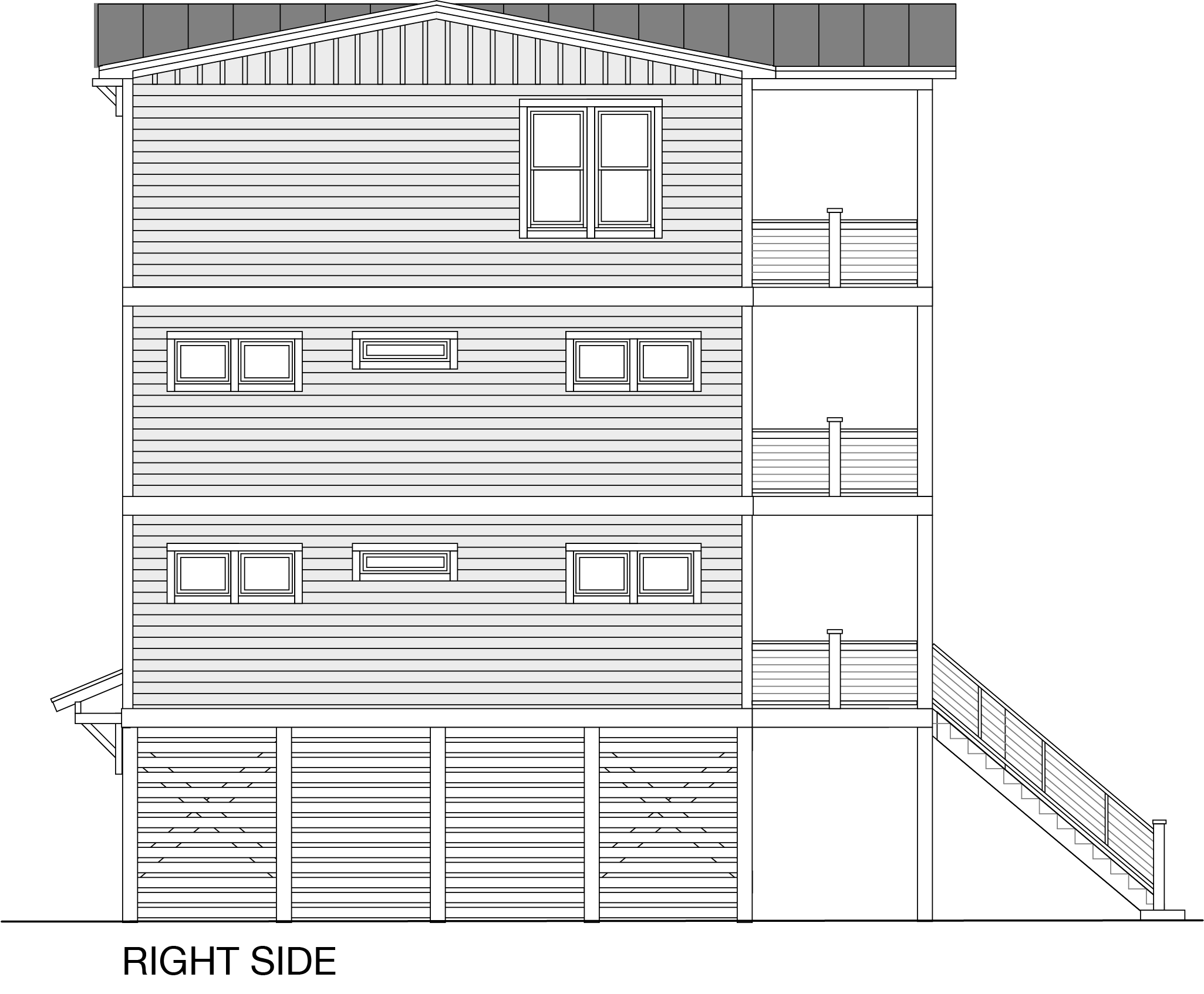

Line drawing of the right side elevation of a multi-story house, featuring horizontal siding, multiple windows on each floor, a staircase at the far right, and a garage or storage area at the bottom with slatted openings.

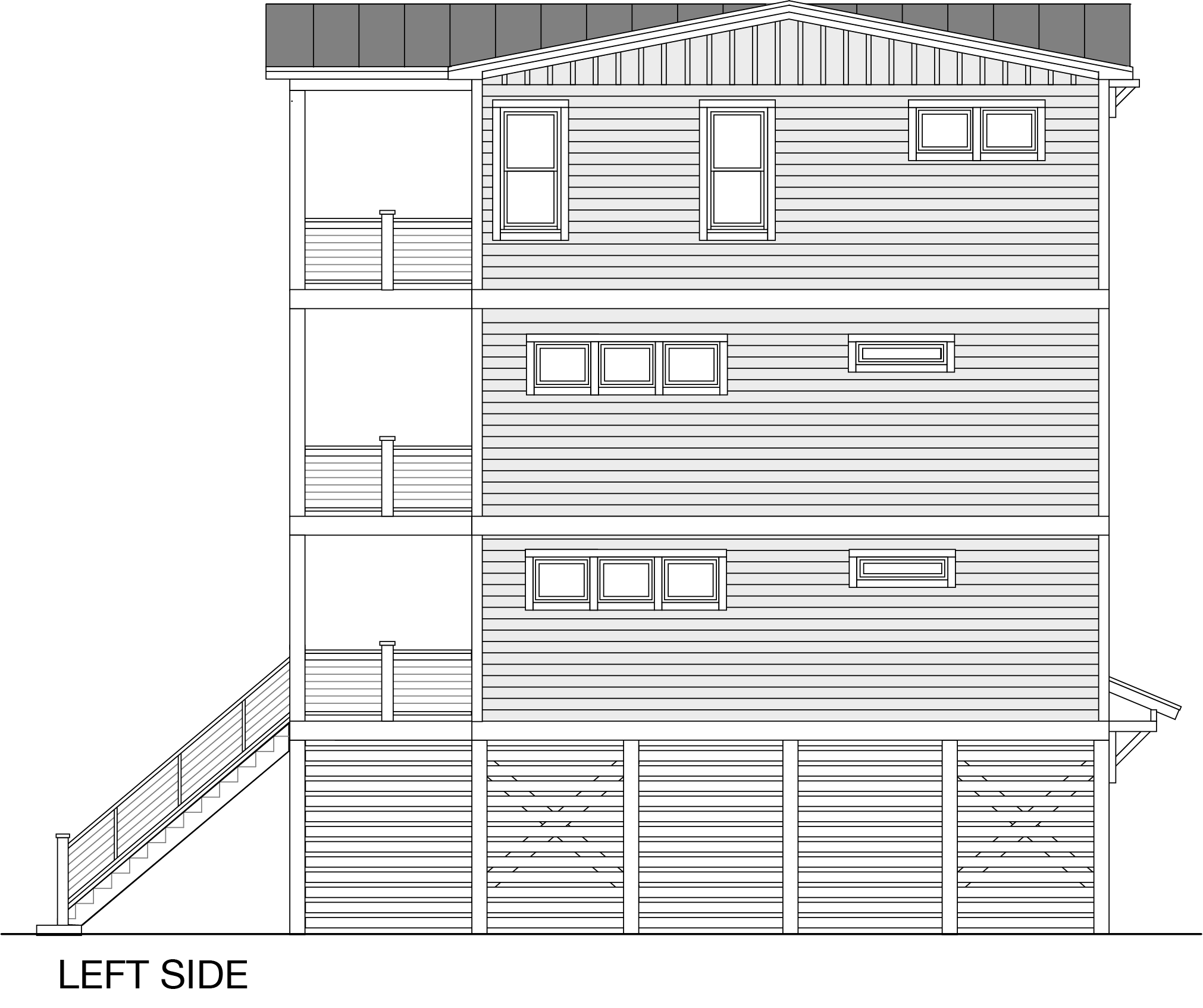

Architectural drawing of the left side of a three-story house with horizontal siding, multiple windows, a staircase on the left leading to a porch, and a fenced ground level.

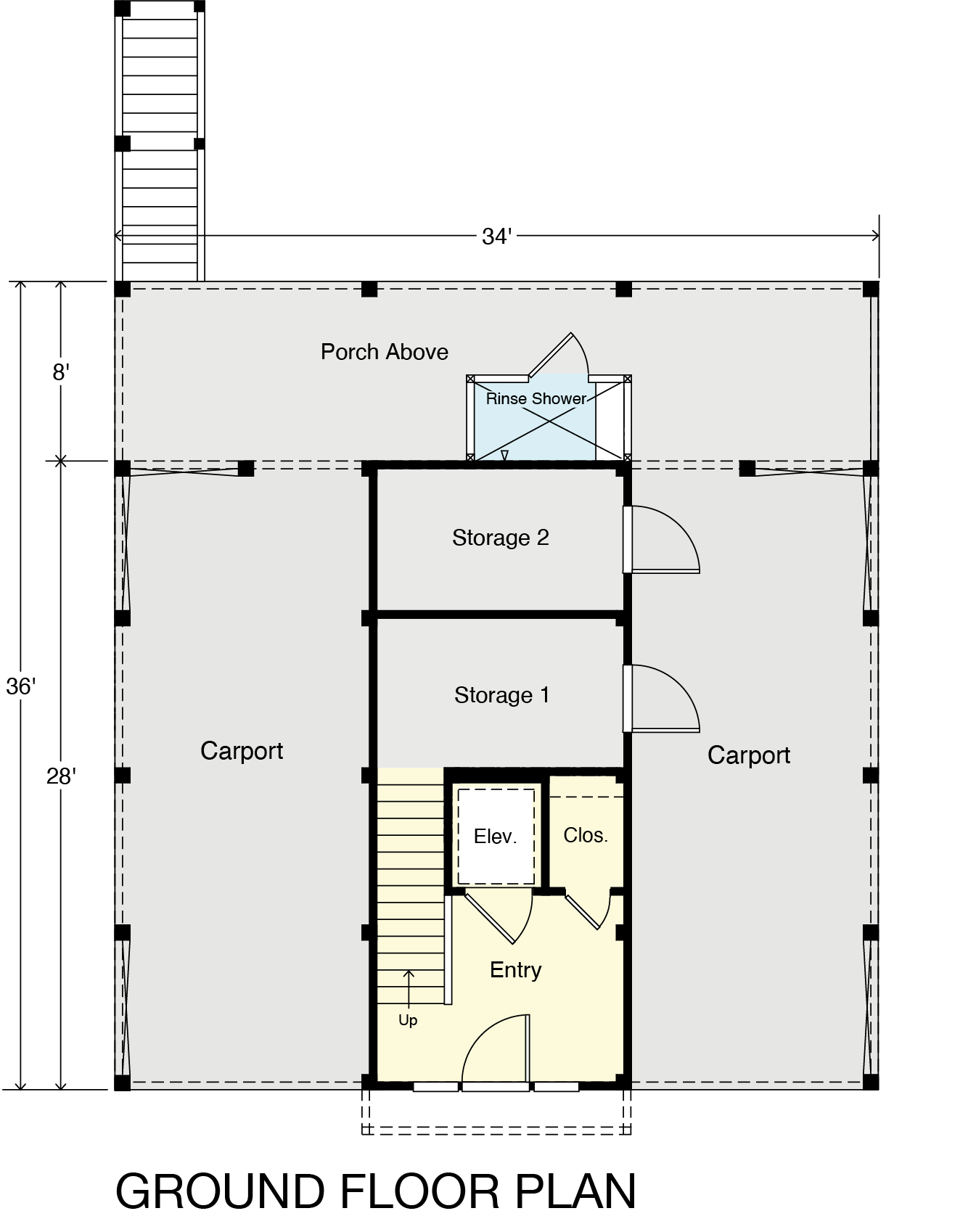

Architectural drawing of a ground floor plan showing an entry with stairs, two storage rooms, and two carports. A porch above with a rinse shower, and a stairway leading to an upper level. The plan includes measurements and labels for different areas

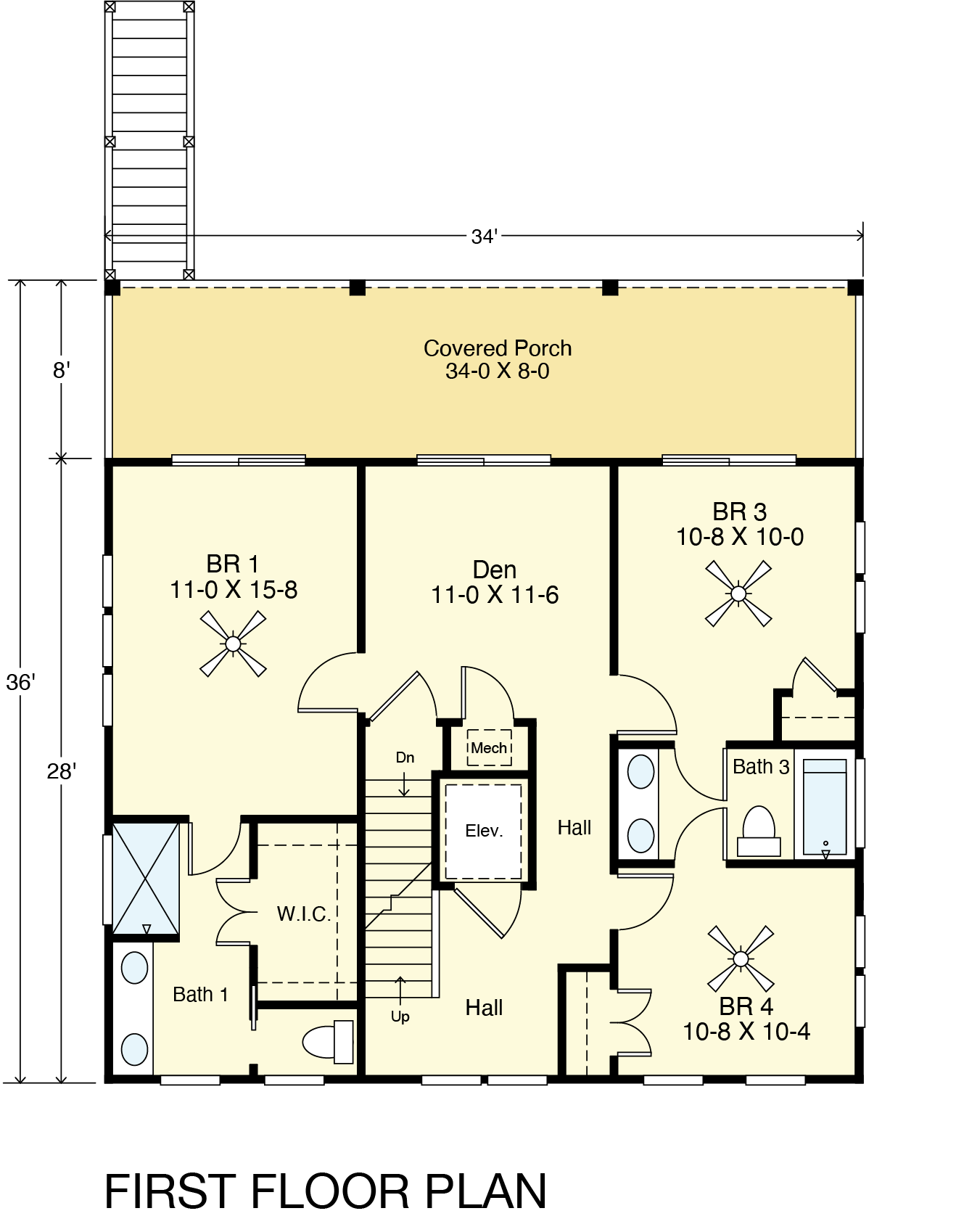

First floor plan of a house featuring a covered porch, three bedrooms, a den, two bathrooms, a walk-in closet, a mechanical room, an elevator, and a staircase.

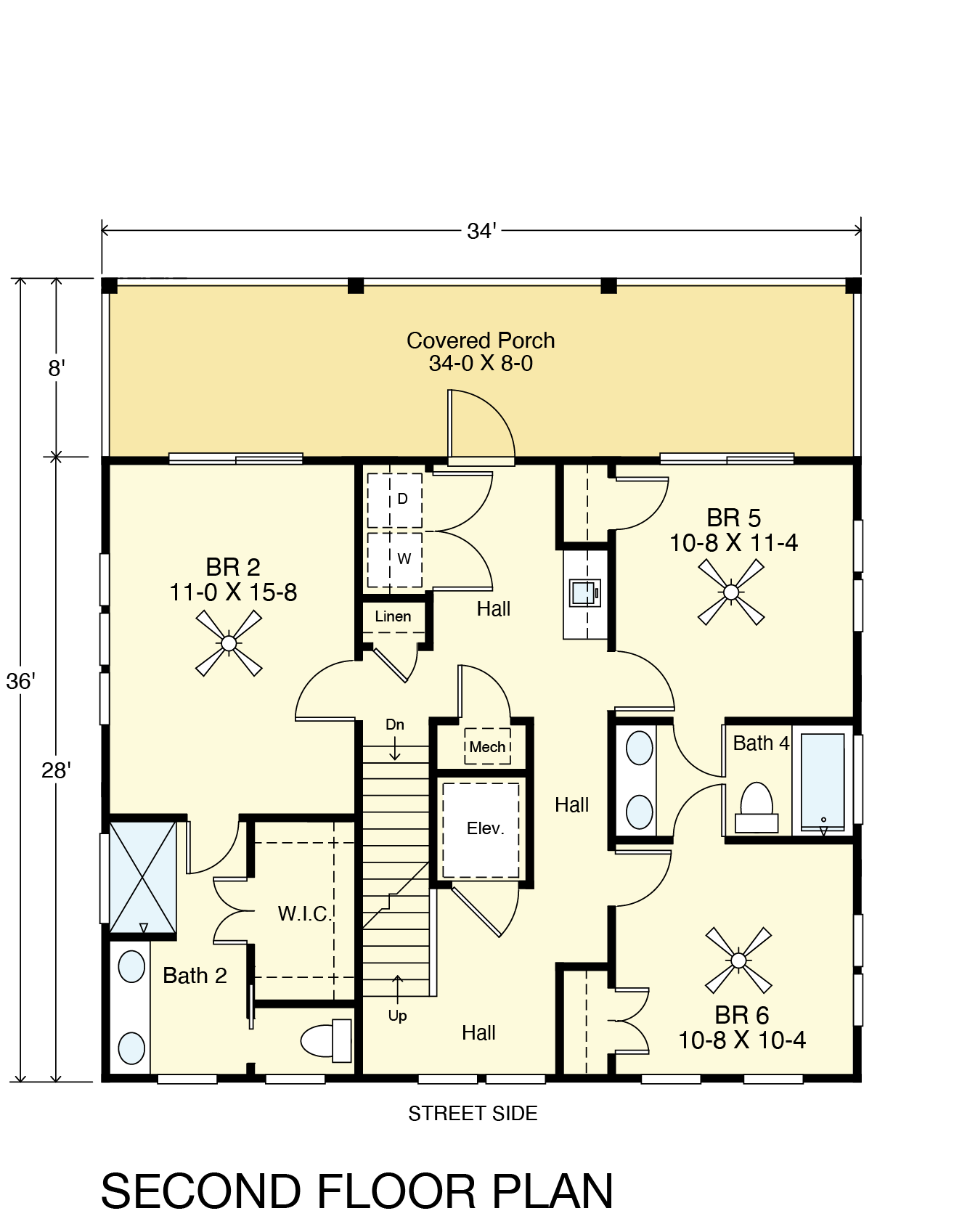

Second floor house plan with bedrooms, bathrooms, hallways, a covered porch, and an elevator.

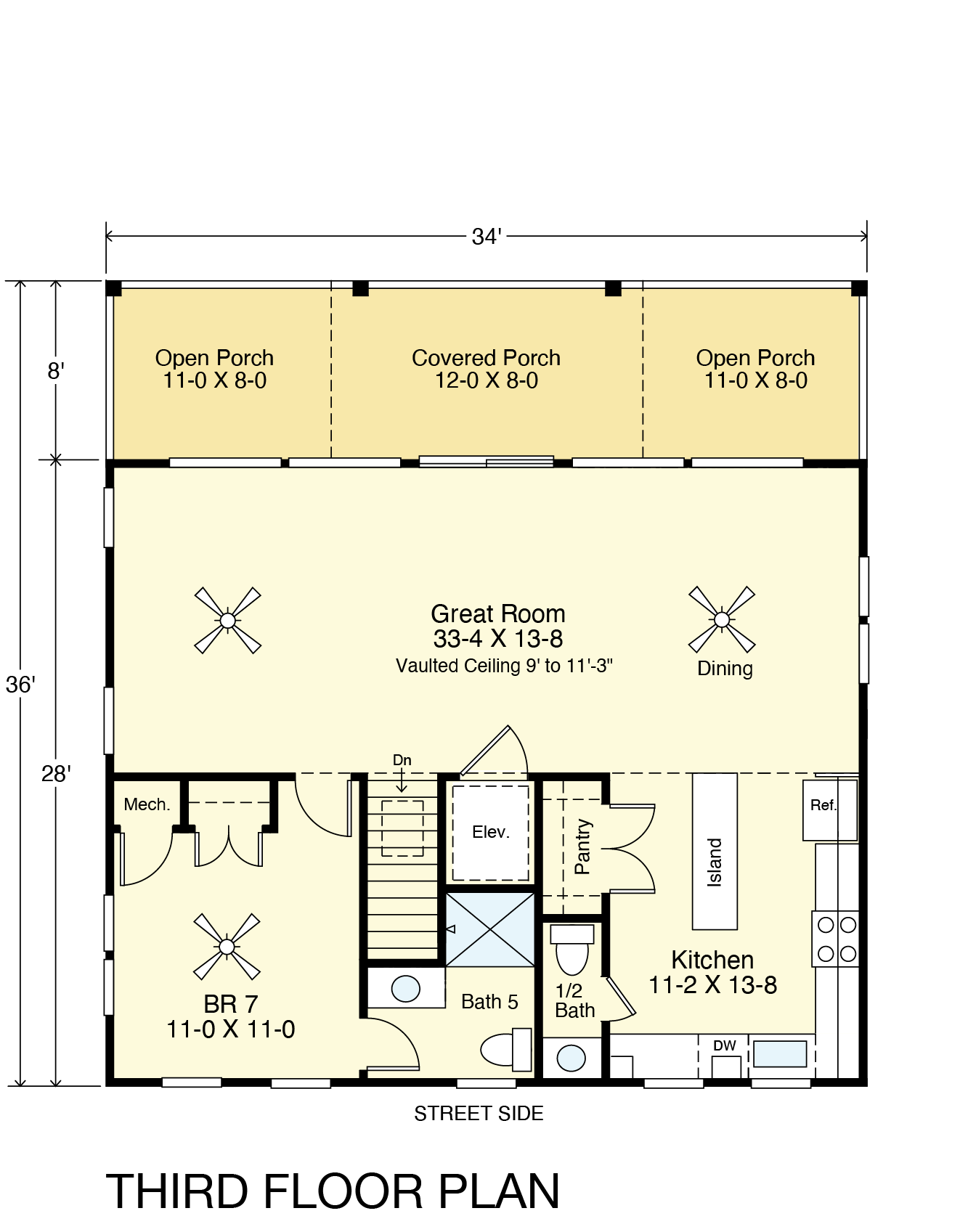

Third-floor house plan showing a great room, kitchen, bedroom, bathrooms, pantry, staircase, elevator, mechanical room, and open and covered porches.

Square Feet

2856

Elevation

40’-10”

Number of Floors

4

Elevator

Yes

Bathrooms

5.5

Bedrooms

7

Dimensions

34'-0" wide x 36'-0" deep x 40'-10" high

Ground Floor Ceiling Height

8'-1 ½"

First Floor Ceiling Height

8'-1 ½"

Second Floor Ceiling Height

8'-1 ½"

Third Floor Ceiling Height

9'-1 ½" Flat & Vaulted

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Ketch 2856-7E house plan has 2,856 sq. ft. of living area, seven bedrooms, five and a half baths, and an elevator. It can be built on the oceanfront or first row.

Features:
• Three-levels on piers
• 7 bedrooms
• 5 1/2 baths
• Walk-in pantry
• Den on the first floor
• Two main bedroom suites
• Five secondary bedrooms with shared baths
• Can be built on the oceanfront or first row
• Metal roof
• Outdoor shower
• Elevator
• Vaulted ceilings on the top floor
