Lumina Watch 3789-6E

Over 2,000 Sq. Ft.

Drawing of a three-story house with a garage on the ground level, balconies on the second and third floors, and a gabled roof. The house features blue siding with white trim and black railings on the balconies.
Architectural drawing of the rear elevation of a multi-story house with blue and white exterior, multiple windows, doors, and a small balcony.

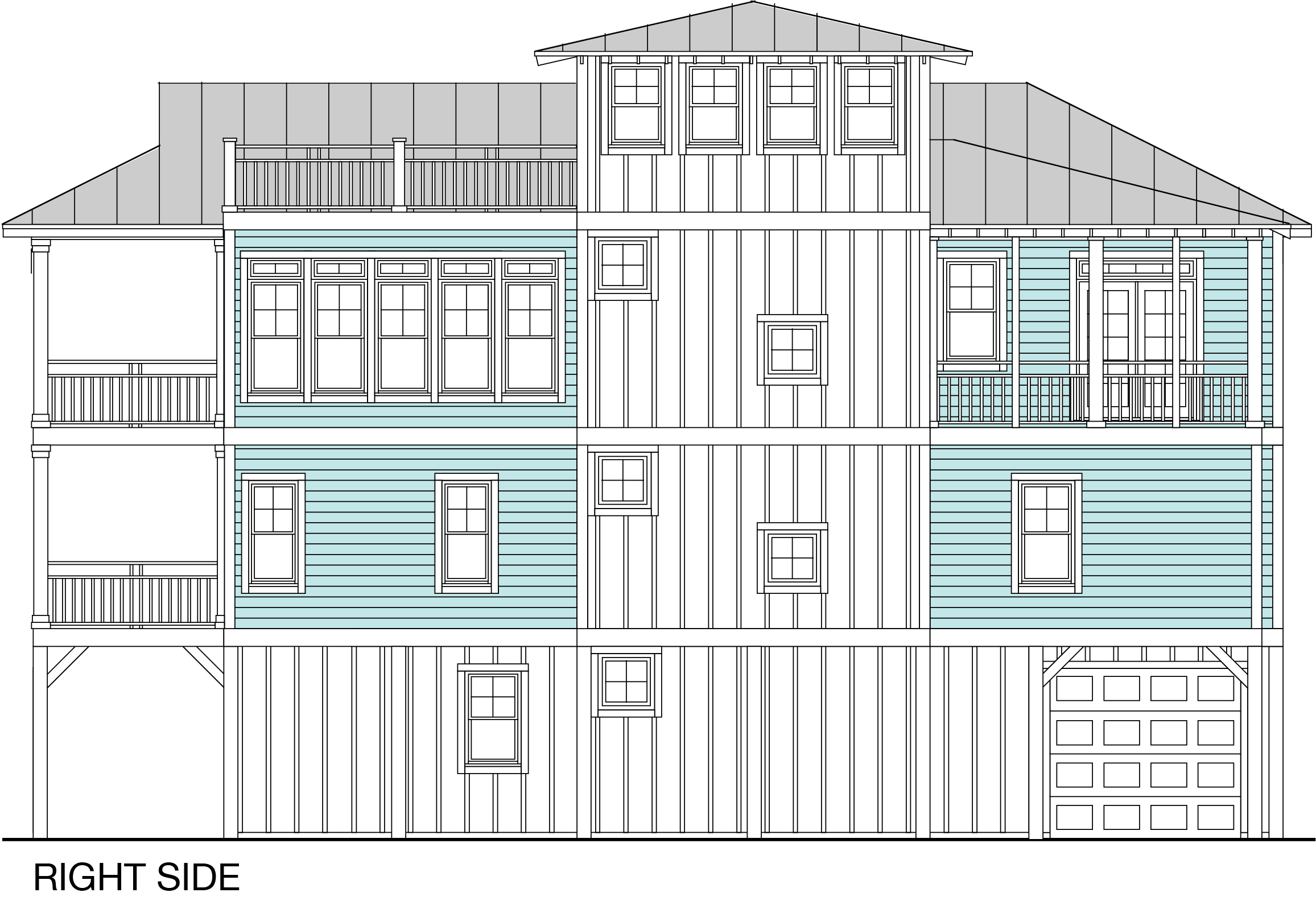

Architectural drawing of a three-story house's right side, showing a garage, windows, balconies, and exterior siding with some areas shaded blue.
Architectural drawing of the left side of a three-story house with blue siding, multiple windows, and balconies on the upper floors, with a gray metal roof.
Ground floor plan of a building showing a boat garage, two garages for two cars each, an entry foyer, an elevator, and an outdoor porch area.
A detailed architectural floor plan of a house's first floor, including bedrooms, bathrooms, utility areas, and a porch with measurements.

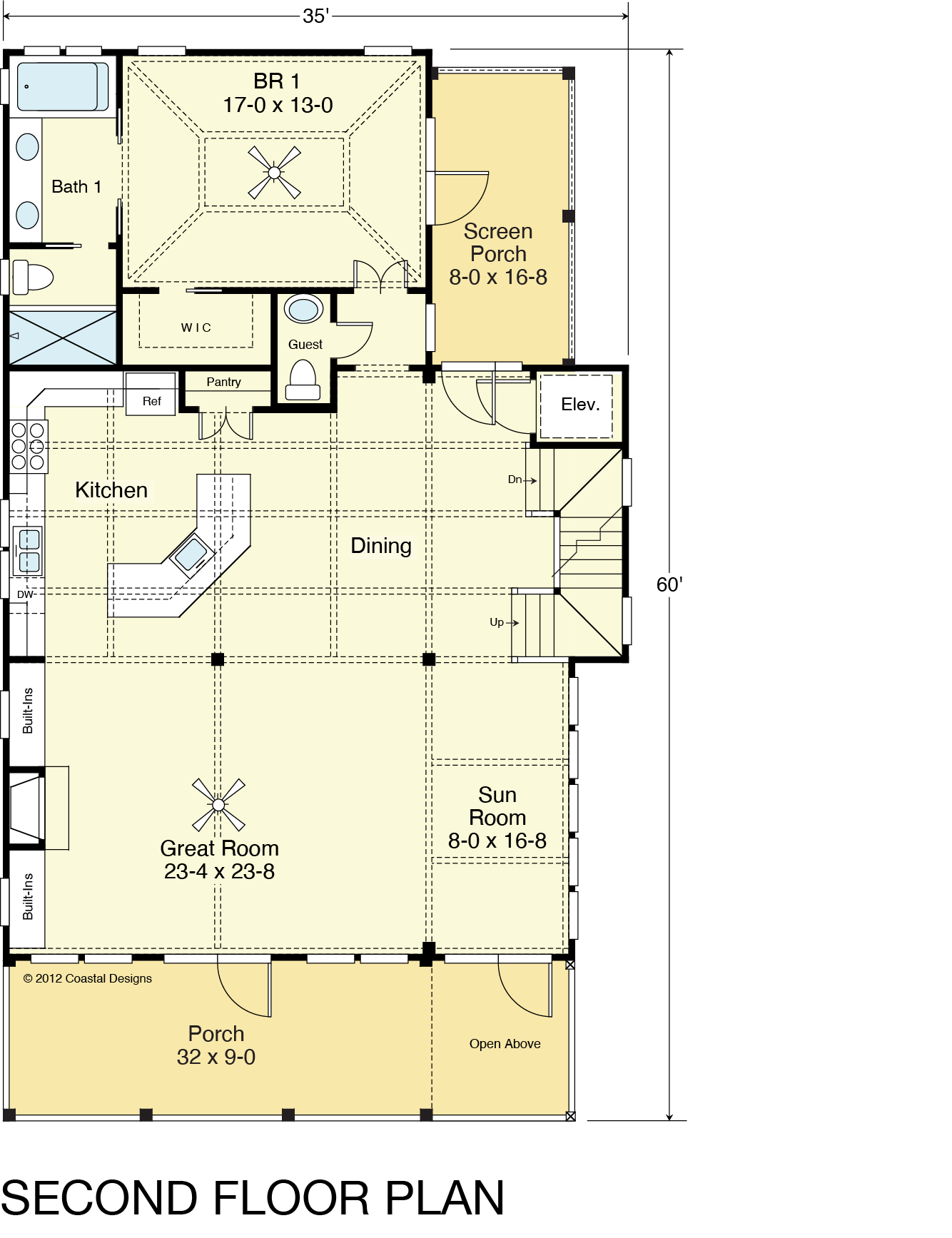

Floor plan of a house's second floor with labeled rooms including great room, porch, sun room, kitchen, bedroom 1, bathroom, guest room, and screen porch.
Architectural third floor plan showing a lookout tower measuring 16 by 16 feet with a staircase leading up from the right side, and an ocean deck measuring 8 by 16 feet extending from the oil tower.

Square Feet

3789.1

Elevation

39’-10”

Number of Floors

4

Elevator

Yes

Bathrooms

4.5

Bedrooms

5

Dimensions

35’-0” wide x 60’-0” deep x 39’-10” high

Ground Floor Ceiling Height

9’-0"

First Floor Ceiling Height

8’-0"

Second Floor Ceiling Height

9’-0" + Vaulted

Third Floor Ceiling Height

7’-0" + Vaulted

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Lumina Watch 3789-6E is a cottage where elevated views are available. By having the bedrooms on the 1st floor, the great room, dining and kitchen share some of the better views on the second floor, with a lookout tower on the top floor. A main bedroom on the great room level is convenient for all activities. The ground floor has plenty of space for 5 or 6 cars or boats. This plan is only 35’ wide and 60’ deep.
