Ocean View 1767-4E

Under 2,000 Sq. Ft.

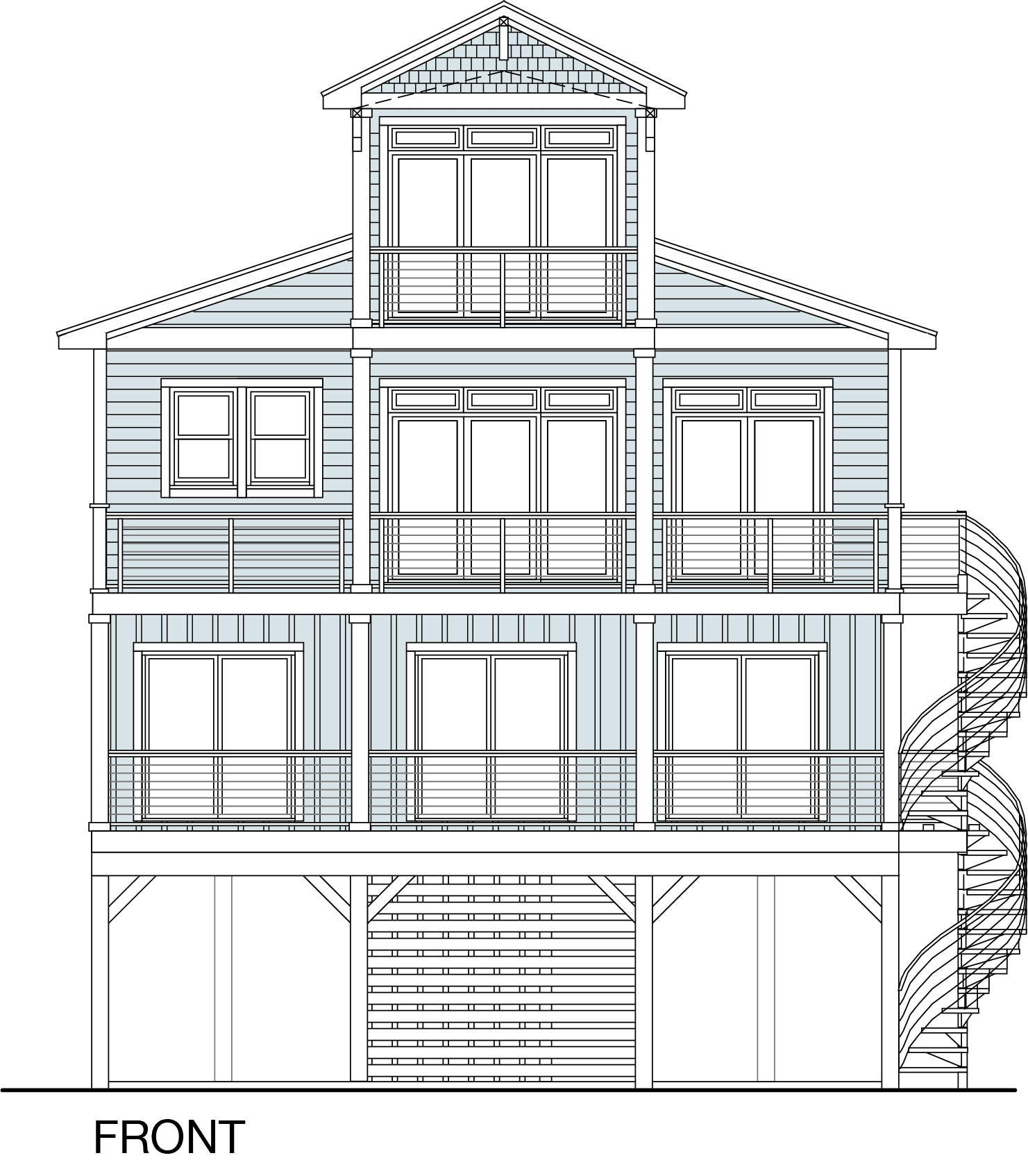

Blueprint or architectural drawing of a multi-story house with balconies, sliding doors, external staircases on the right side, and detailed roof shingles.

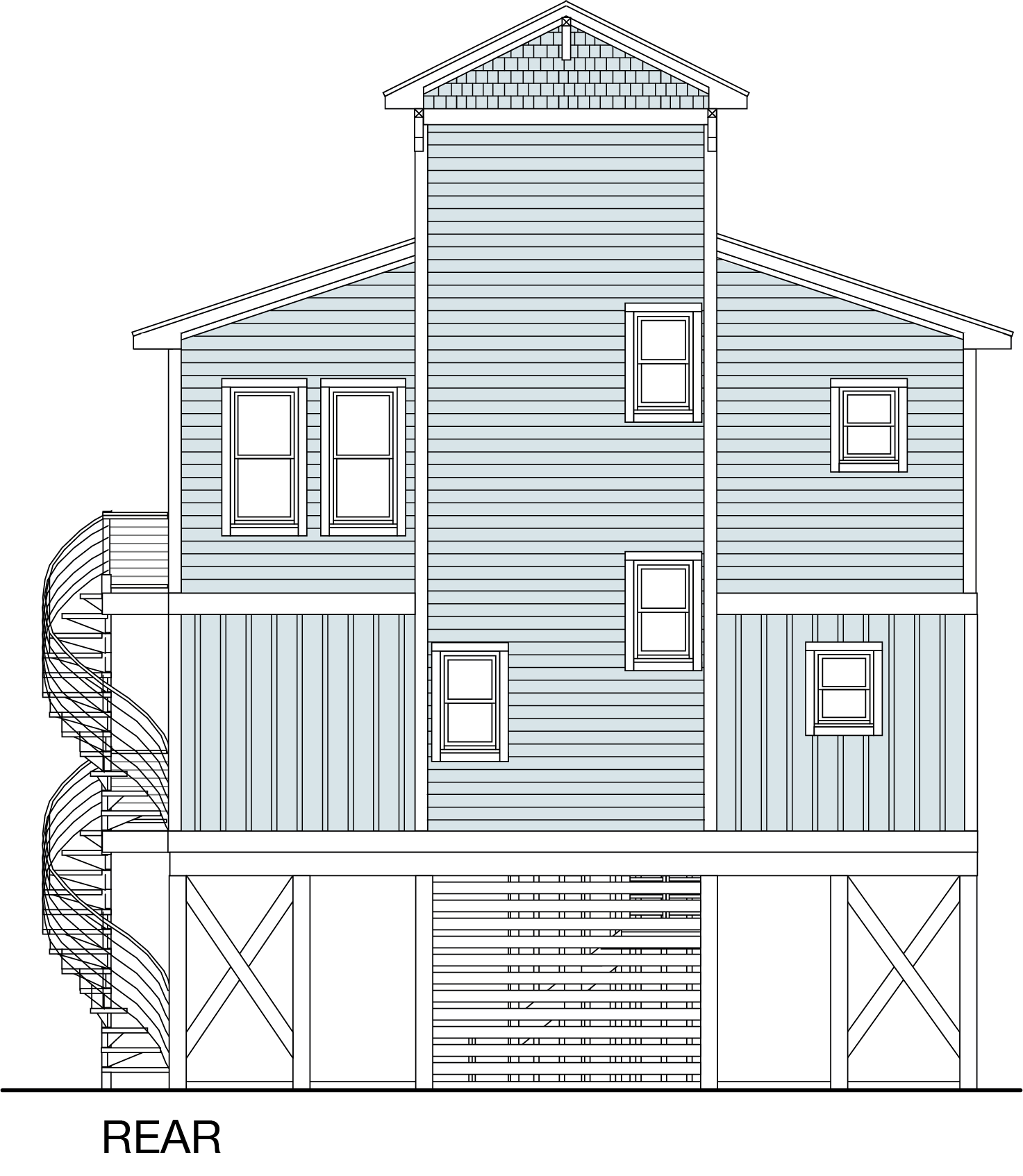

Line drawing of the rear view of a three-story house with a central tower, exterior stairs on the left, and windows on each floor.

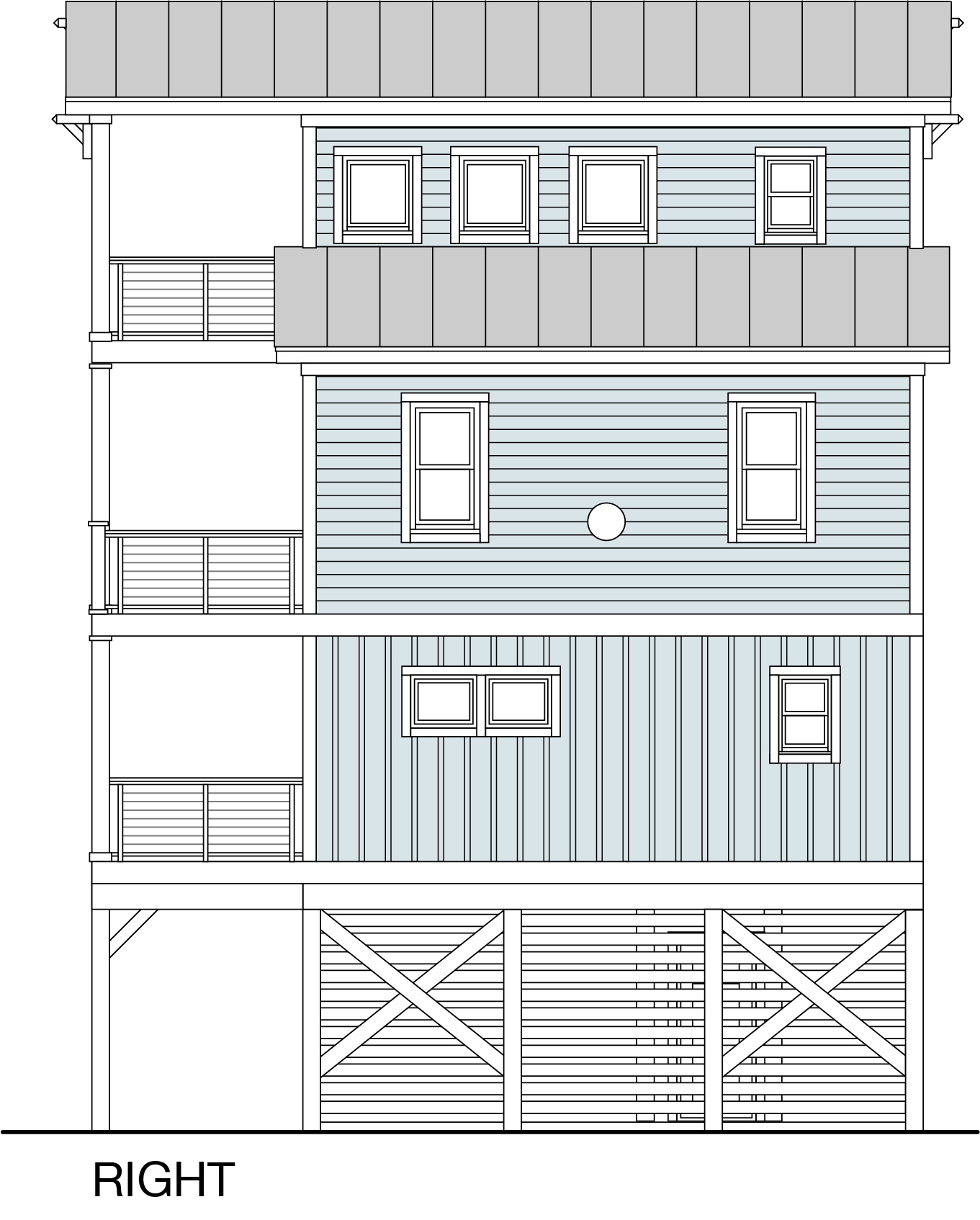

Architectural drawing of the right side elevation of a multi-story house with siding and windows, including balconies with railings and a fenced area at the base.

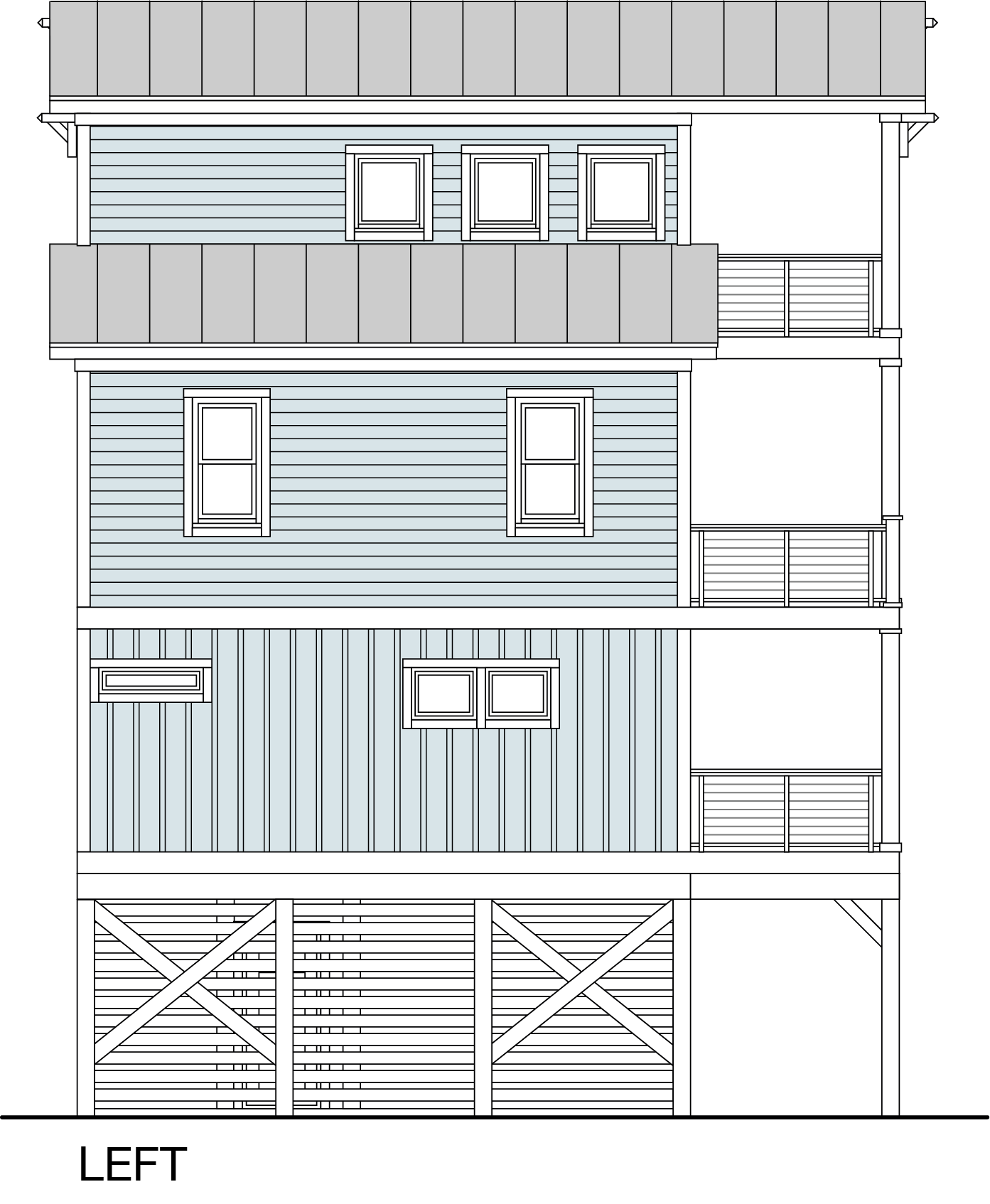

Line drawing of a multi-story house's left side, showing windows, balconies, siding, and a fenced area at the base.

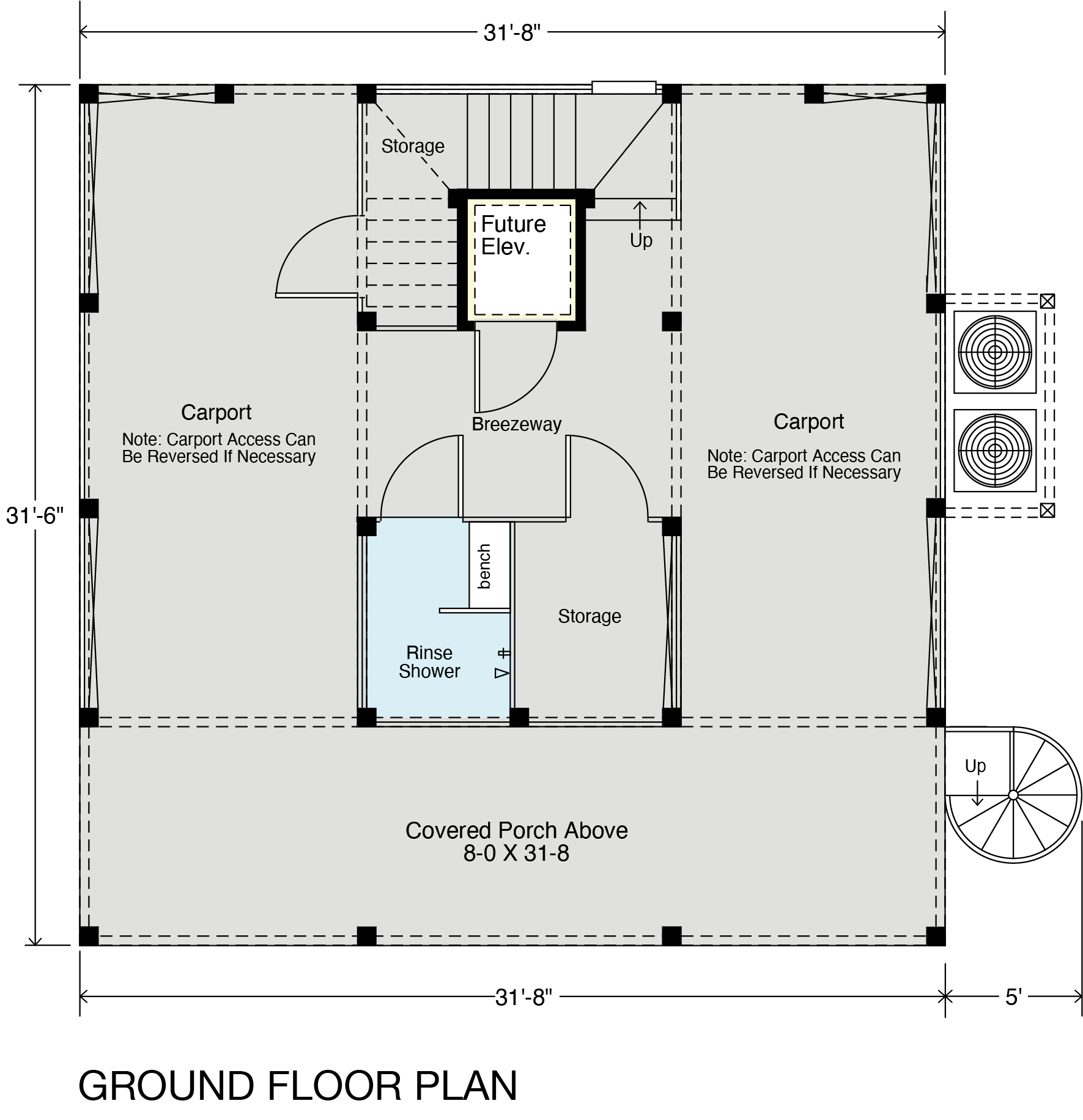

Architectural ground floor plan of a building featuring a covered porch, breezeway, storage areas, a bathroom with rinse shower and bench, multiple carports with note on possible reversal of access, staircase, and an elevator shaft labeled 'Future El

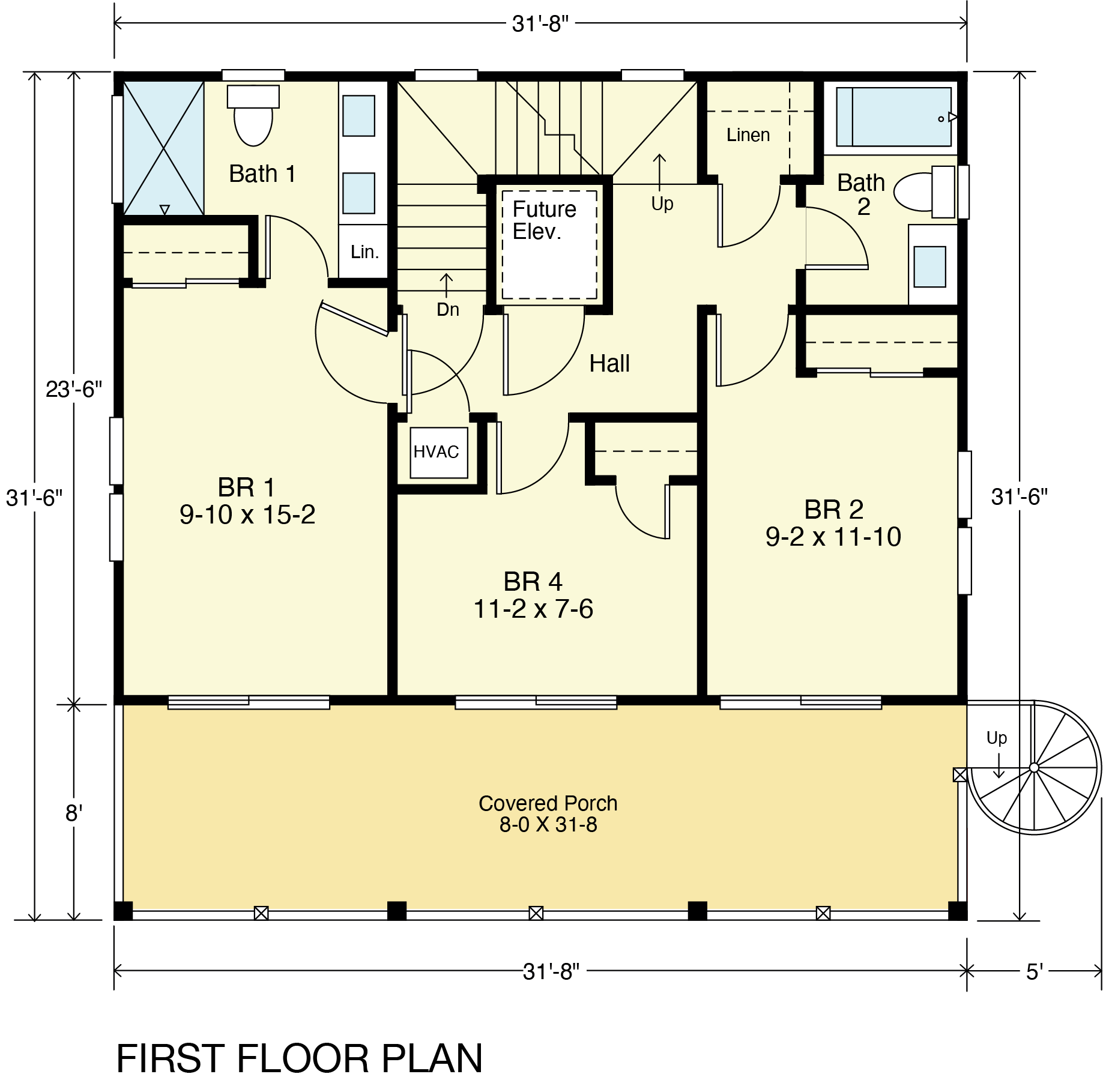

First floor plan of a house showing three bedrooms, two bathrooms, a hall, a covered porch, and stairs leading to a future elevated area. The layout includes dimensions and labels for rooms such as BR 1, BR 2, BR 4, Bath 1, Bath 2, and a linen closet

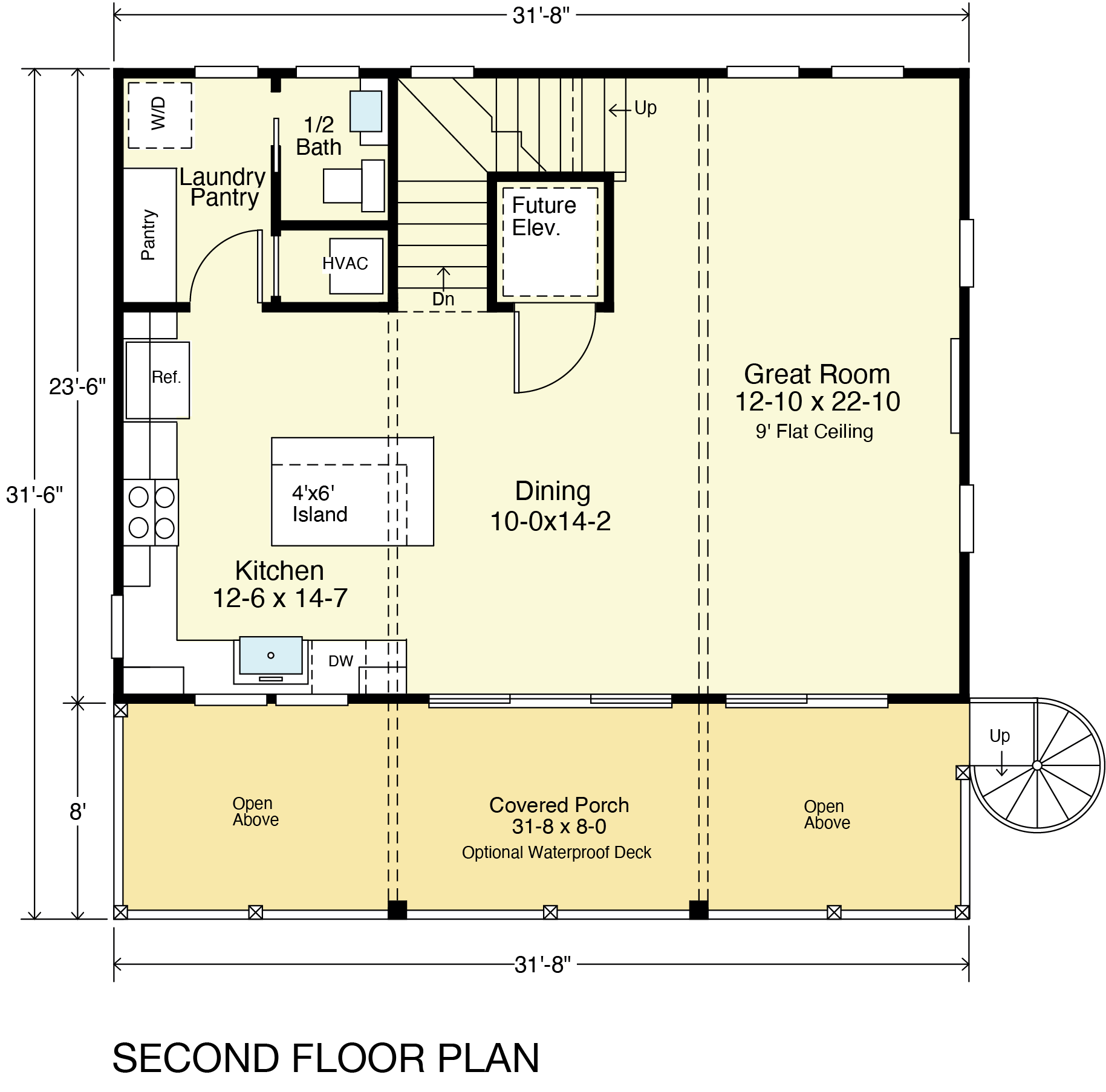

Floor plan of the second floor of a house, showing the dimensions and layout including a great room, dining area, kitchen, laundry pantry, half bathroom, HVAC, future elevator, staircase, and a covered porch with optional waterproof deck.

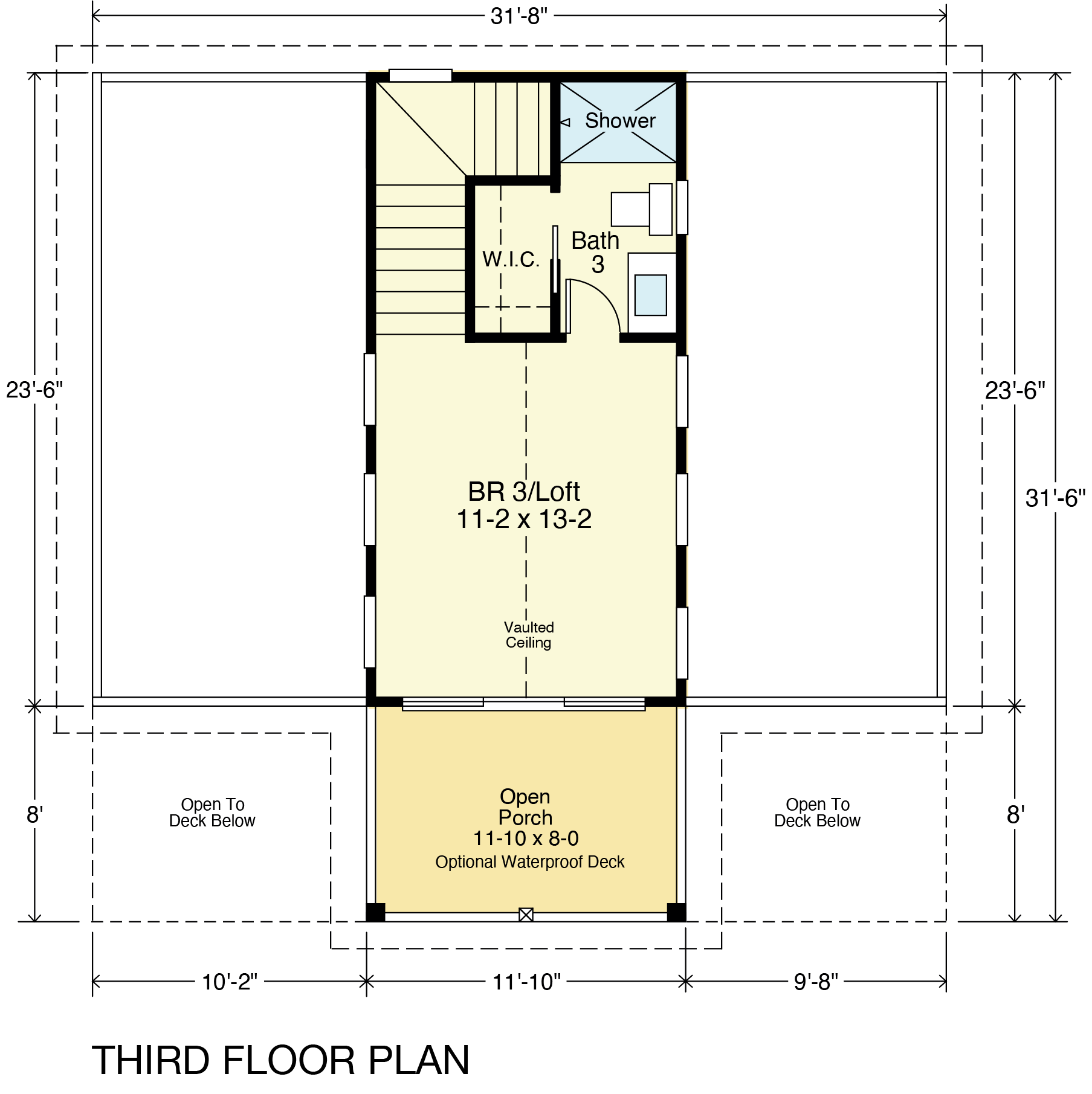

Third floor architectural plan featuring a bedroom, loft, bathroom with shower, walk-in closet, and an open porch, with dimensions and details of the layout.

Square Feet

1766.5

Elevation

42’-4”

Number of Floors

4

Elevator

Yes

Bathrooms

3.5

Bedrooms

4

Dimensions

31’-8” wide x 31’-6” deep x 42’-4” high

Ground Floor Ceiling Height

8’-1 1/2” Flat Ceilings

First Floor Ceiling Height

8’-1 1/2” Flat Ceilings

Second Floor Ceiling Height

9’-1 1/2” Flat Ceilings

Third Floor Ceiling Height

8’-1 1/2” + Vaulted Ceilings

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Ocean View 1767-4E house plan offers a spacious living area of 1,766.5 square feet. This well-designed property has four bedrooms and three and a half bathrooms and is spread across three levels, each accessible via an elevator.

KEY FEATURES

Ground Floor: This level includes carports, a convenient rinse shower, ample storage areas, staircase access, and an elevator.

First Floor: The first floor boasts three guest bedrooms, two well-appointed bathrooms, and a delightful covered porch offering outdoor relaxation space.

Second Floor: This level is the heart of the home, featuring a generous great room, a stylish kitchen with a sizable 4' x 6' island, an inviting dining area, a practical laundry/pantry room, a convenient half bathroom, and an open/covered porch for enjoying the outdoor ambiance.

Third Floor: The uppermost level accommodates an additional bedroom or loft space with dramatic vaulted ceilings, a well-appointed bathroom, and an open porch, providing a serene outdoor retreat.
