Sea Ray I (1915-4)

Under 2,000 Sq. Ft.

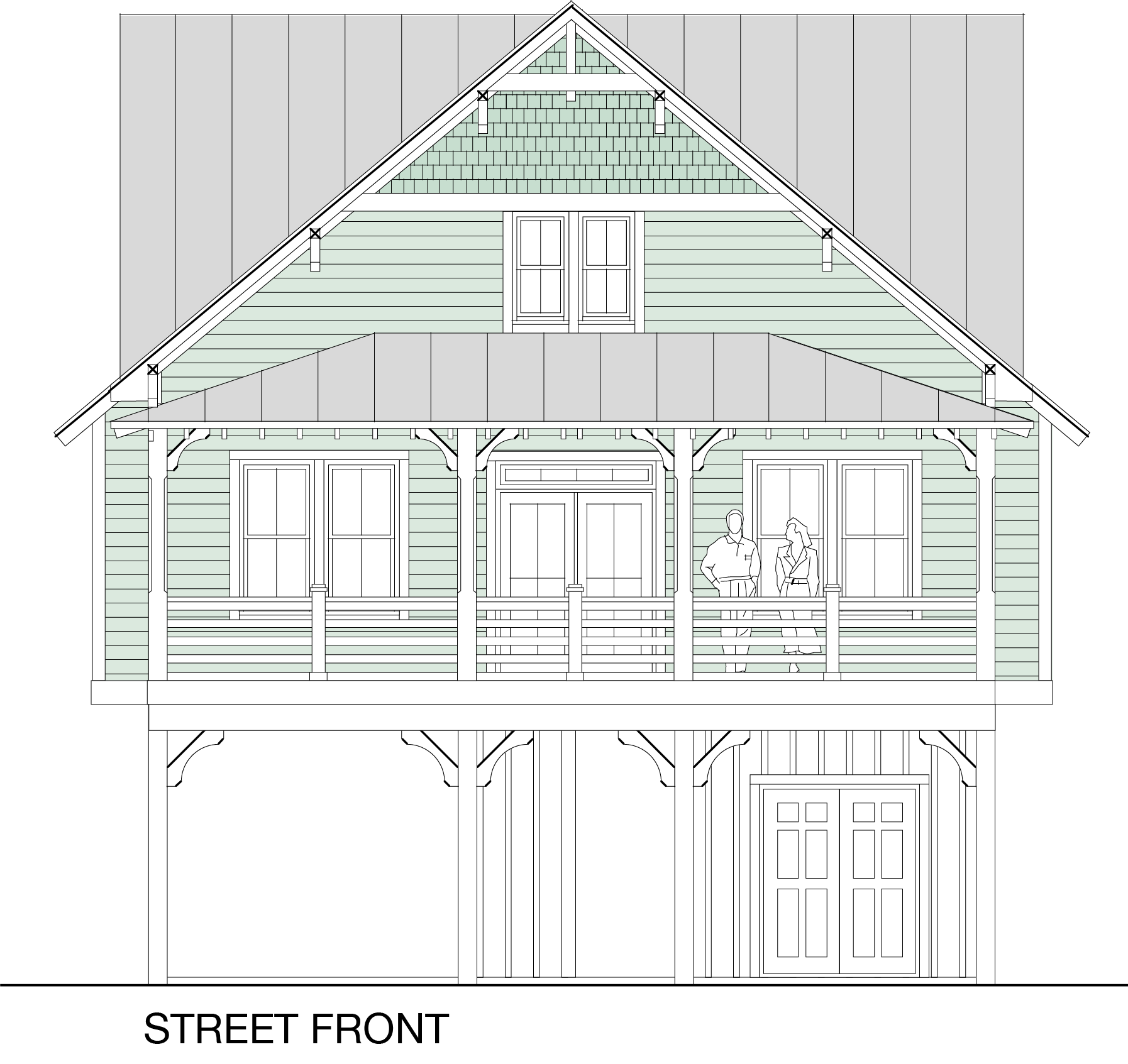

Architectural drawing of a two-story house with a front porch, two people standing on the porch, and a garage beneath. The house features a steep roof, small upper window, and detailed trim.

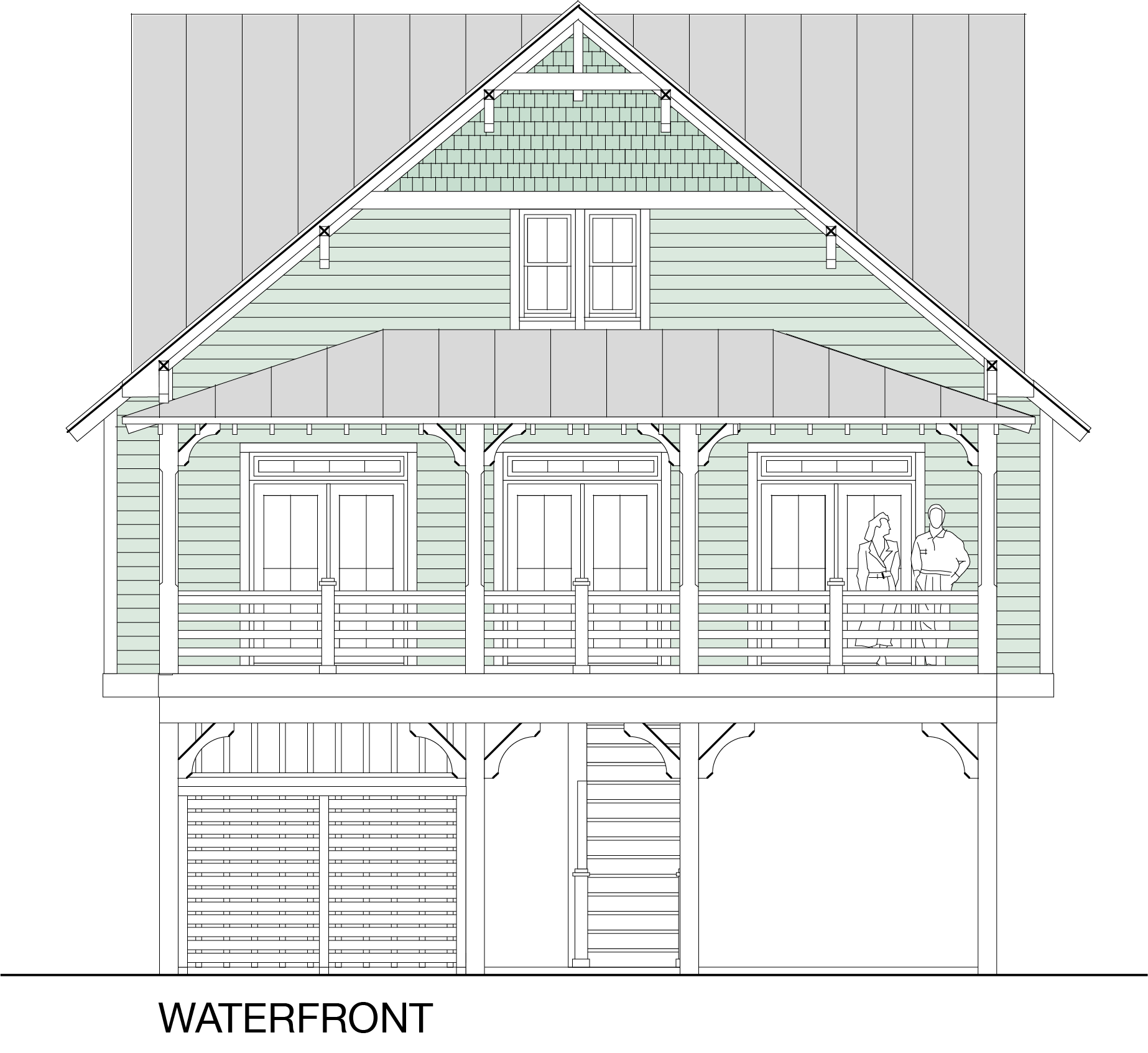

Architectural drawing of a two-story waterfront house with a large front porch. The house has green horizontal siding and a steep roof with shingles. There are two figures standing on the porch, talking. The image is labeled "WATERFRONT" at the botto

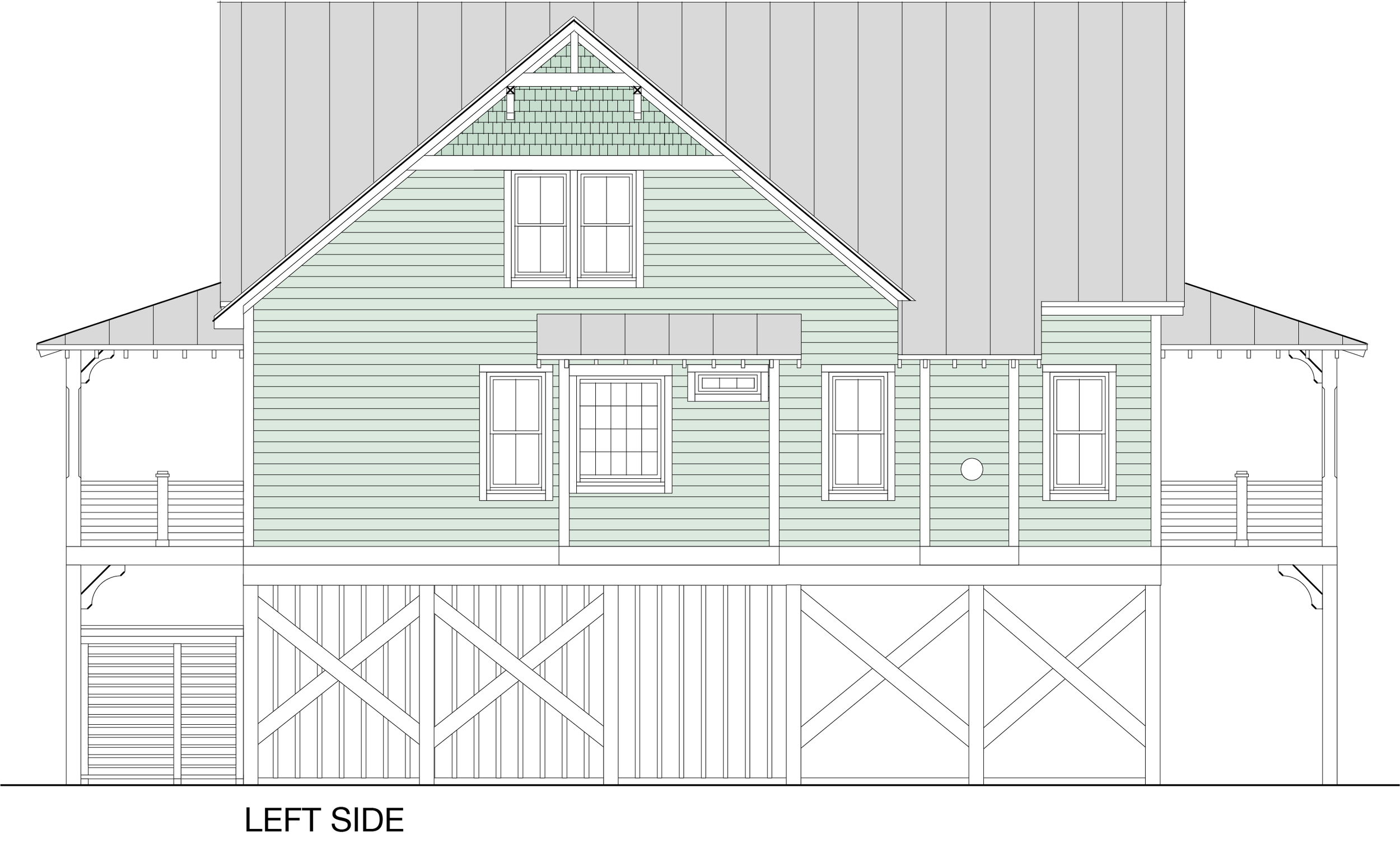

Architectural drawing of the left side elevation of a house with green horizontal siding, multiple windows, and a porch with railings. The foundation is visible with structural supports.

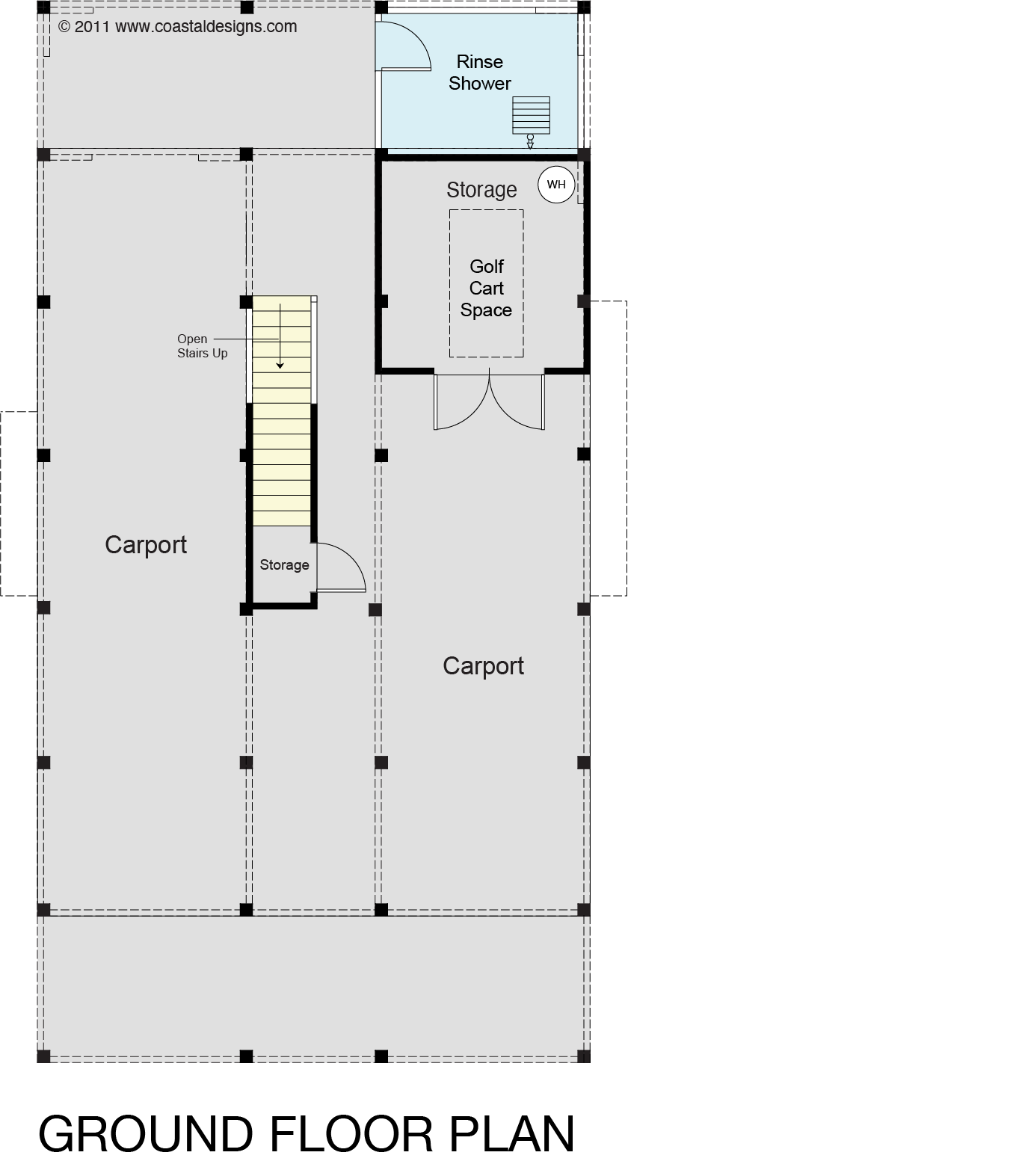

Ground floor plan of a building showing a carport, storage areas, a rinse shower, and a golf cart space with surrounding walls and doors.

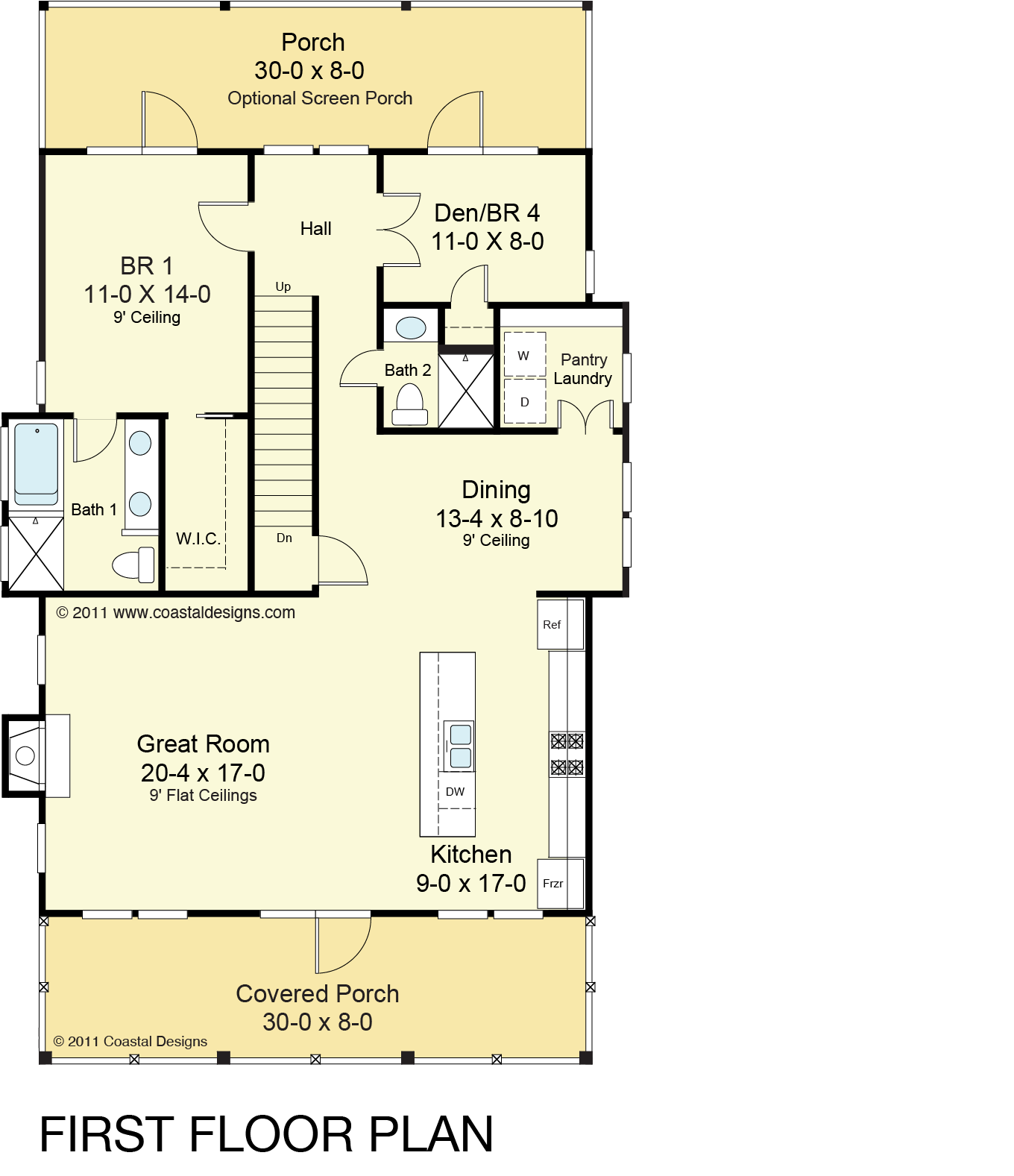

Floor plan of a house with labeled rooms including porch, great room, kitchen, dining area, bedrooms, bathrooms, laundry, pantry, and covered porch.

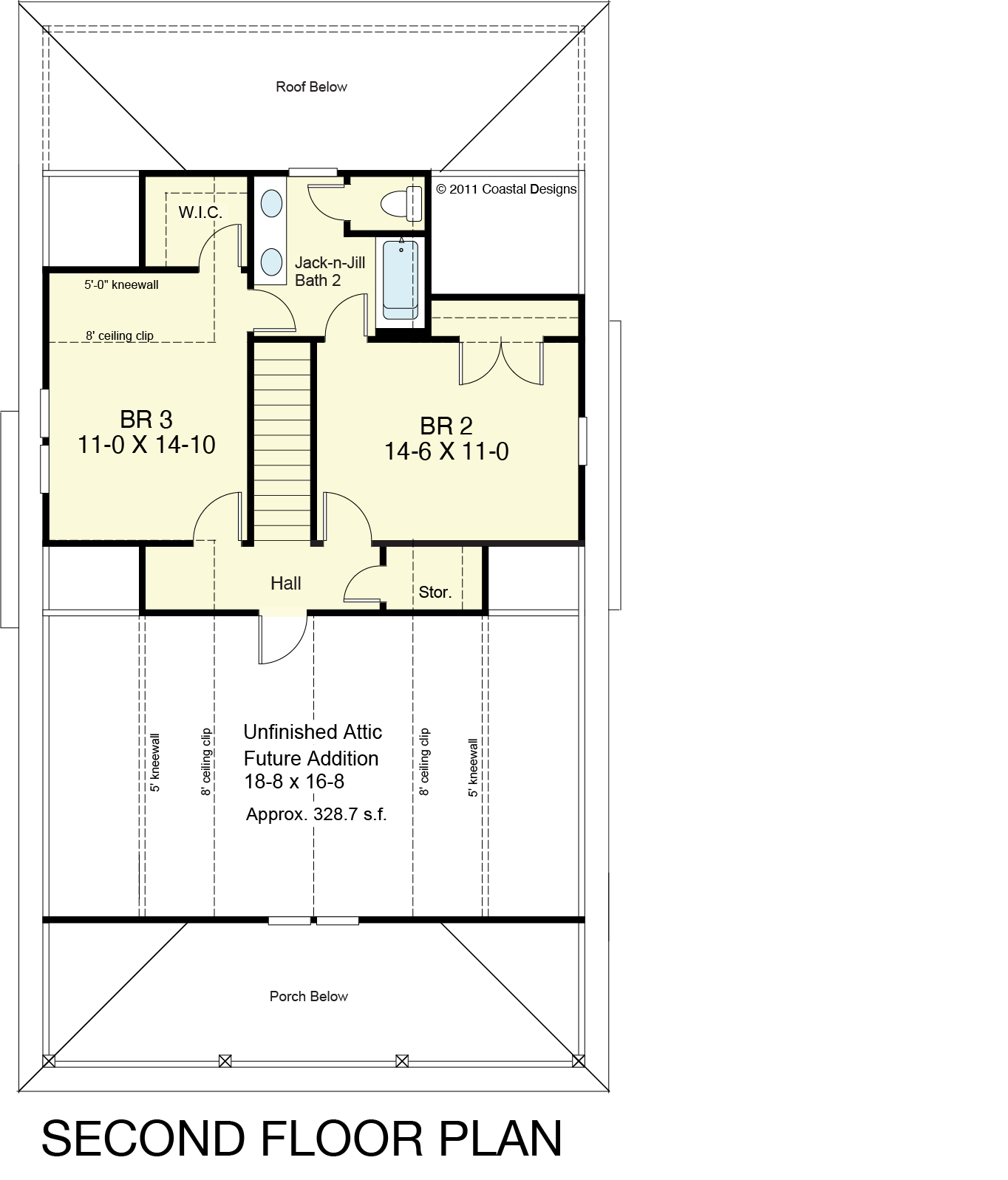

Second floor plan of a house showing two bedrooms, a bathroom, storage, a hall, and an unfinished attic with future addition space.

Square Feet

1914.6

Elevation

35’-2”

Number of Floors

3

Elevator

No

Bathrooms

3

Bedrooms

4

Dimensions

34’-0” wide x 57’-8” deep x 35’-2” high

Ground Floor Ceiling Height

9’-0"

First Floor Ceiling Height

9’-0"

Second Floor Ceiling Height

9’-0" + Vaulted

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Sea Ray I (1915-4) beach house plan is a spacious design that offers 1,914.6 sq. ft. of living space, including four bedrooms and three bathrooms.

KEY FEATURES

Ground Floor: The ground floor features carports for vehicle parking, convenient storage space, a rinse shower for washing off sand, and designated golf cart space.

First Floor: The first floor comprises a well-appointed kitchen with an island, a spacious great room, a dining area for family meals, a pantry/laundry room for added convenience, a half bathroom, a cozy small bedroom, and a main bedroom with an ensuite bathroom. Additionally, the first floor boasts porches both in the front and back, perfect for enjoying the surrounding coastal views.

Second Floor: Moving up to the second floor, you'll find two additional bedrooms, each with ample space and natural light, along with a shared bathroom for added convenience. The second floor also provides storage areas and an unfinished attic space that offers potential for future expansion or customization.

SEE ALL SEA RAY HOUSE PLANS
