Shell Island 4780-8E

Over 2,000 Sq. Ft.

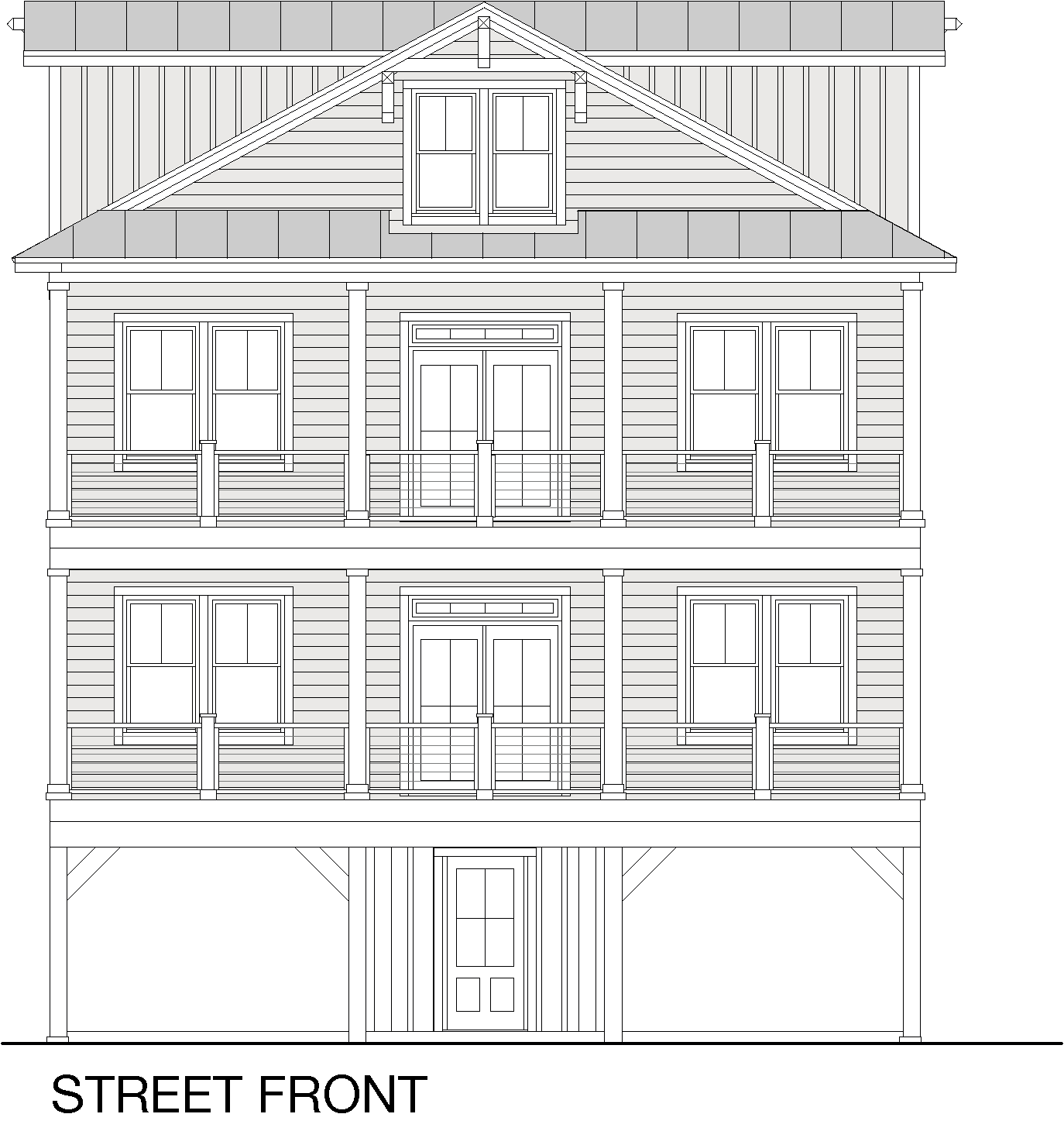

Architectural blueprint of a three-story house with a front porch, multiple windows, and dormer window on the roof, labeled 'Street Front'.

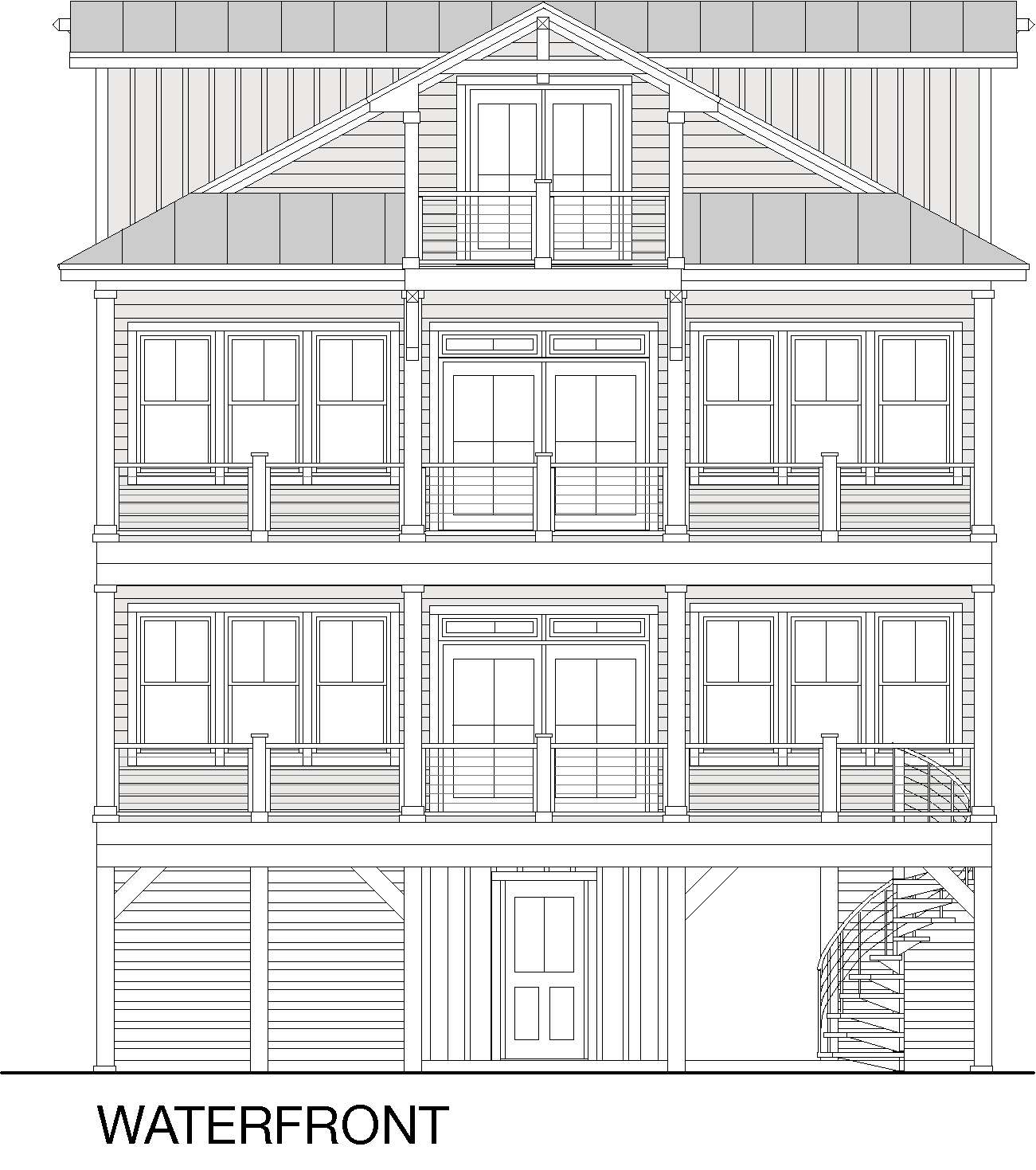

Architectural blueprint of a multi-story beachfront house with large front windows, multiple balconies with railings, sliding doors, and a spiral staircase on the right leading to an upper balcony. The blueprint is labeled 'WATERFRONT' at the bottom.

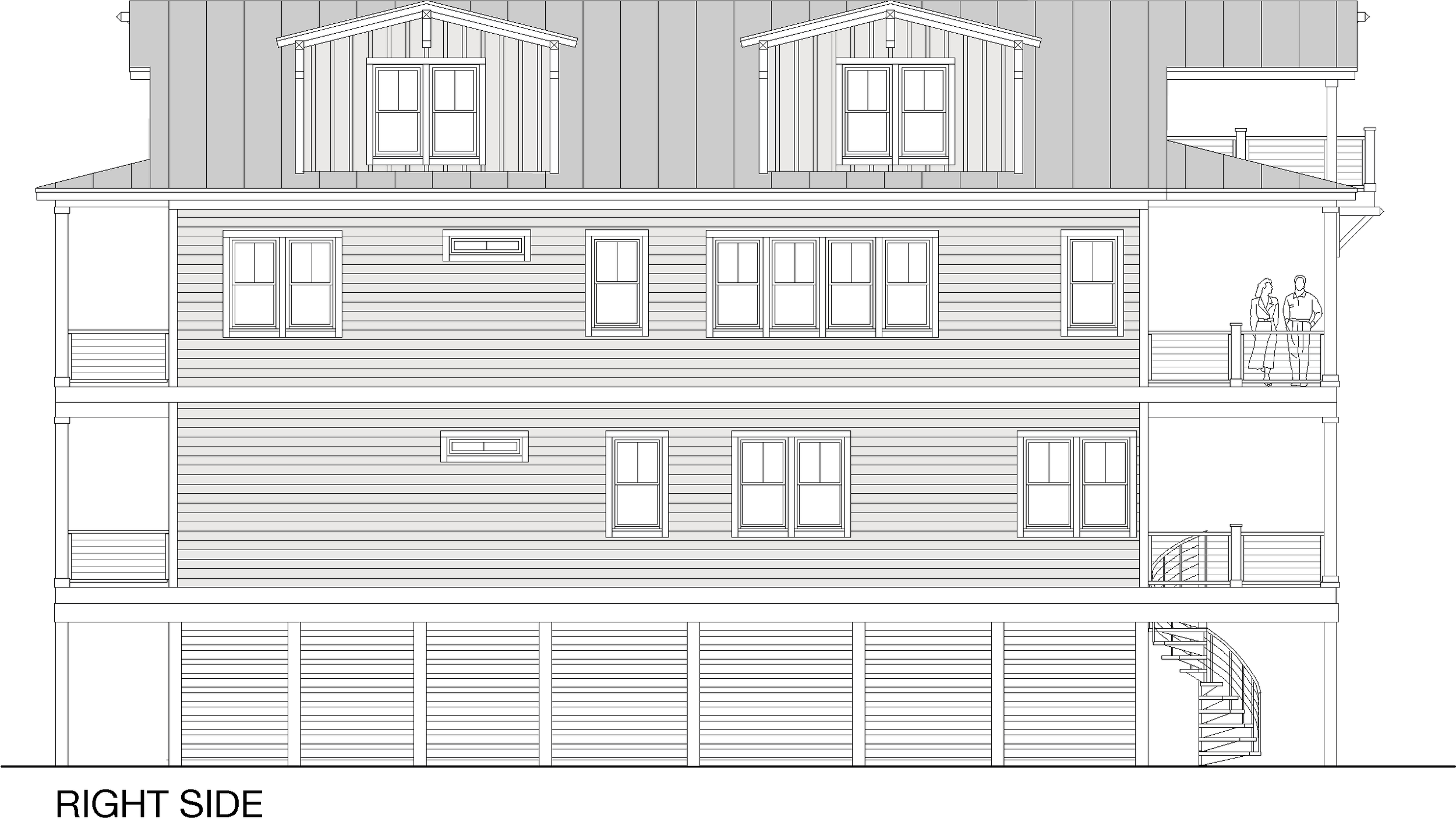

Architectural drawing of the right side of a multi-story house with multiple windows, balconies, and a spiral staircase at the bottom right corner.

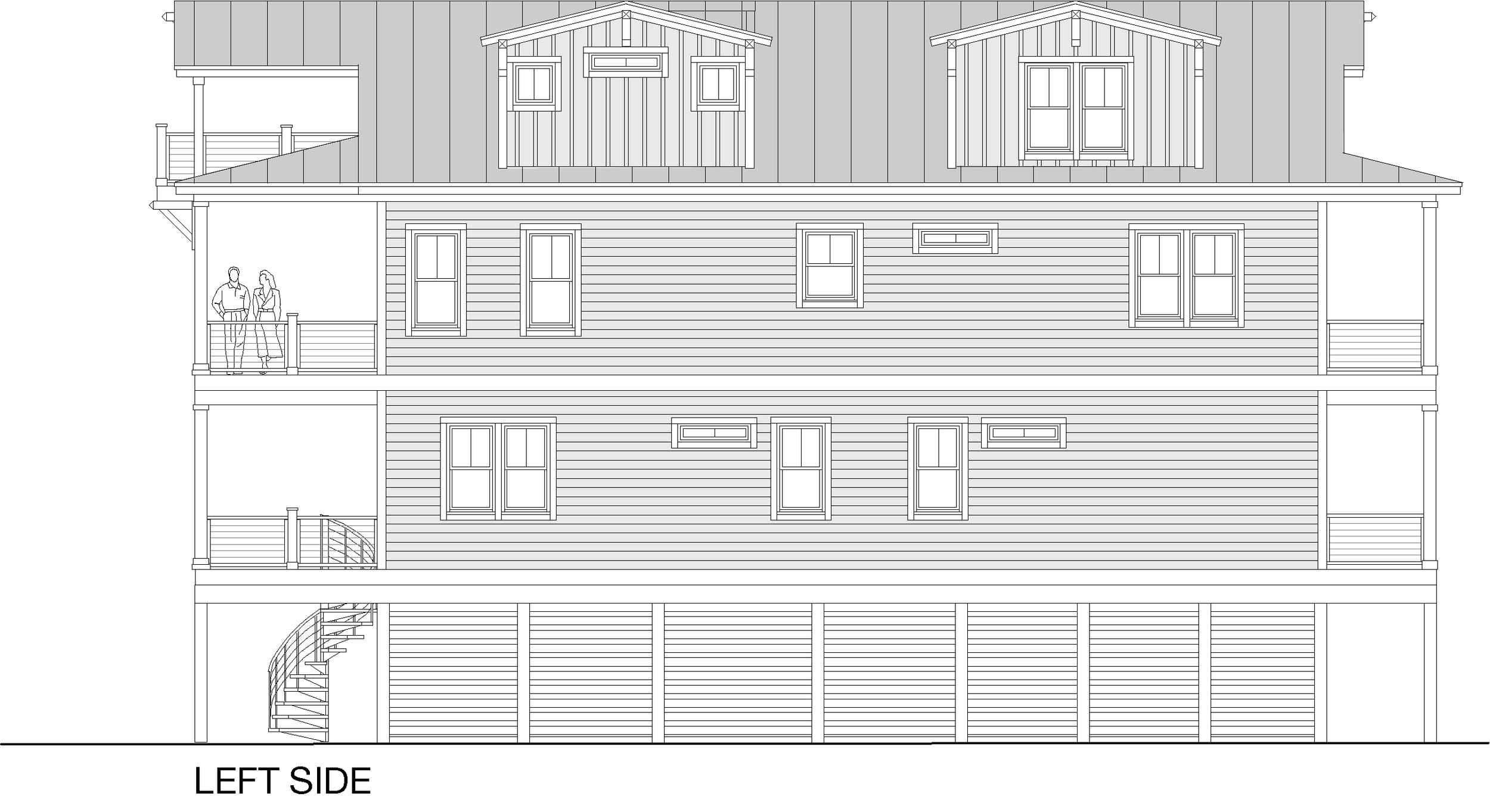

Line drawing of the left side elevation of a multi-story house showing its exterior with windows, balconies, a staircase, and a front porch with two people talking.

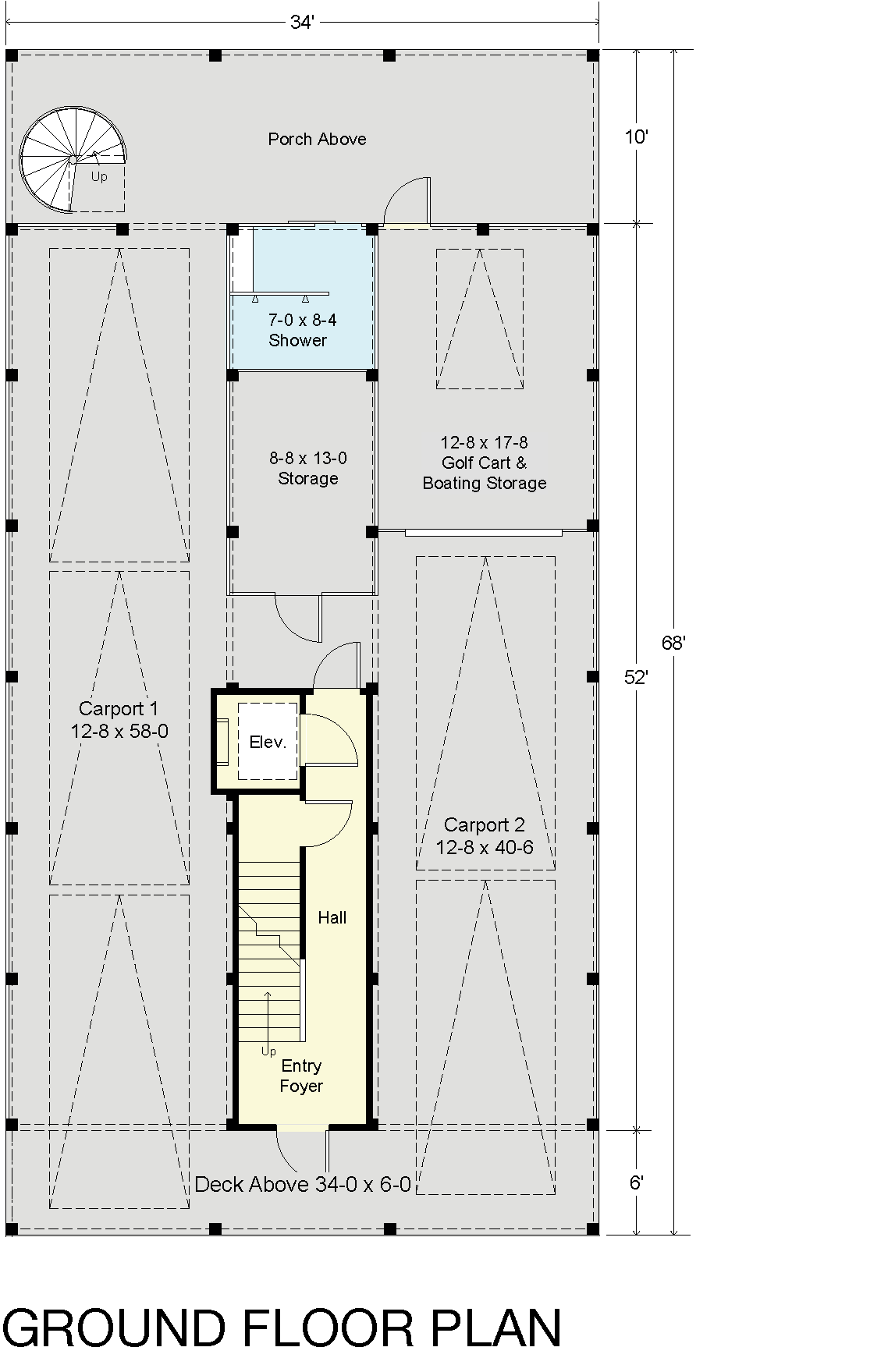

Architectural ground floor plan of a house showing various rooms, storage areas, garages, a porch, and an entry foyer with stairs and an elevator.

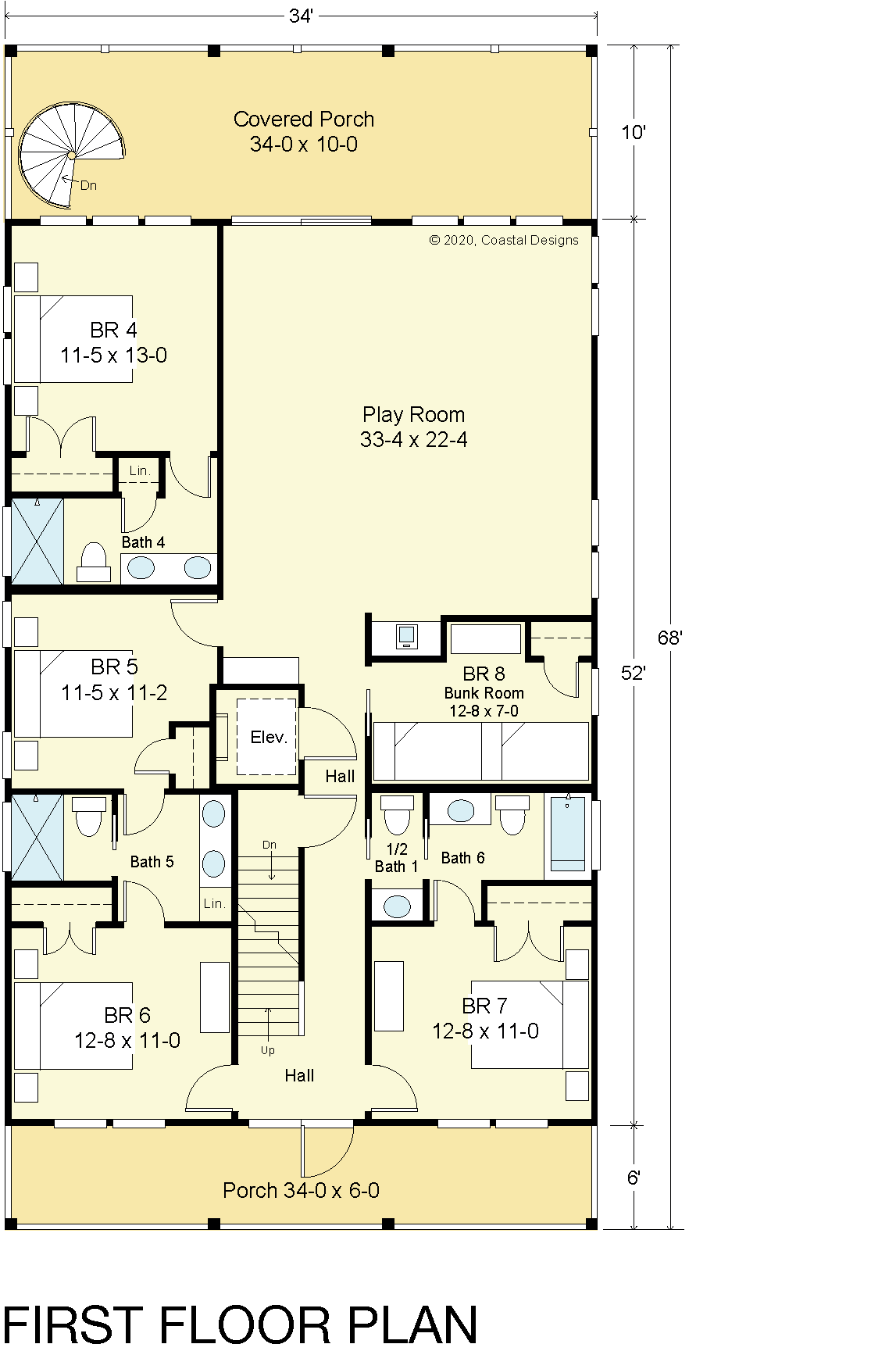

Floor plan of a house, showing a covered porch, a large play room, four bedrooms labeled BR 4, BR 5, BR 6, and BR 7, with some having en-suite bathrooms, a bunk room labeled BR 8, multiple bathrooms, hallways, staircases, an elevator, and a porch at

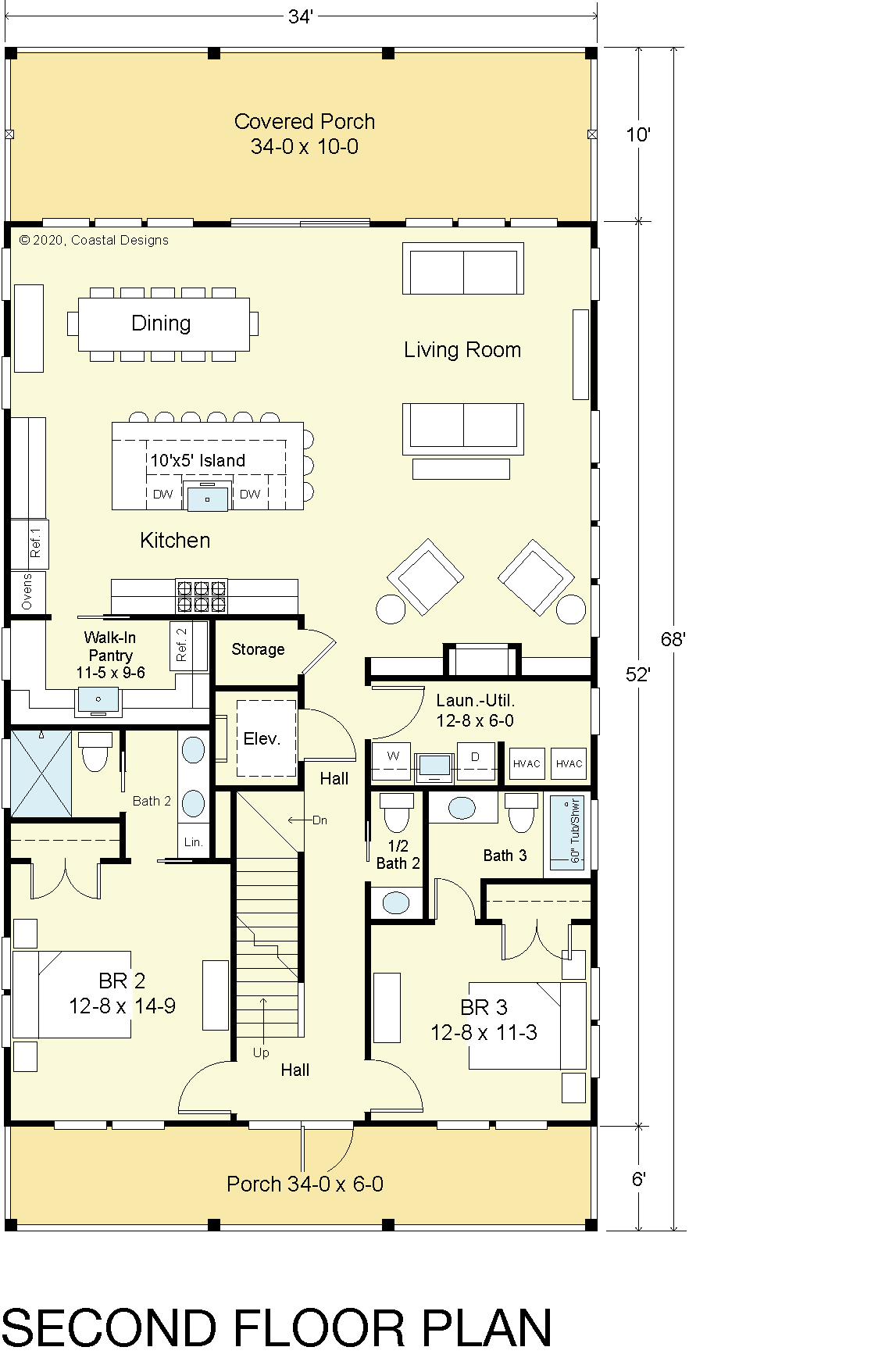

Second floor plan of a house with bedrooms, bathrooms, living room, kitchen, dining area, laundry, storage, hallways, and covered porches.

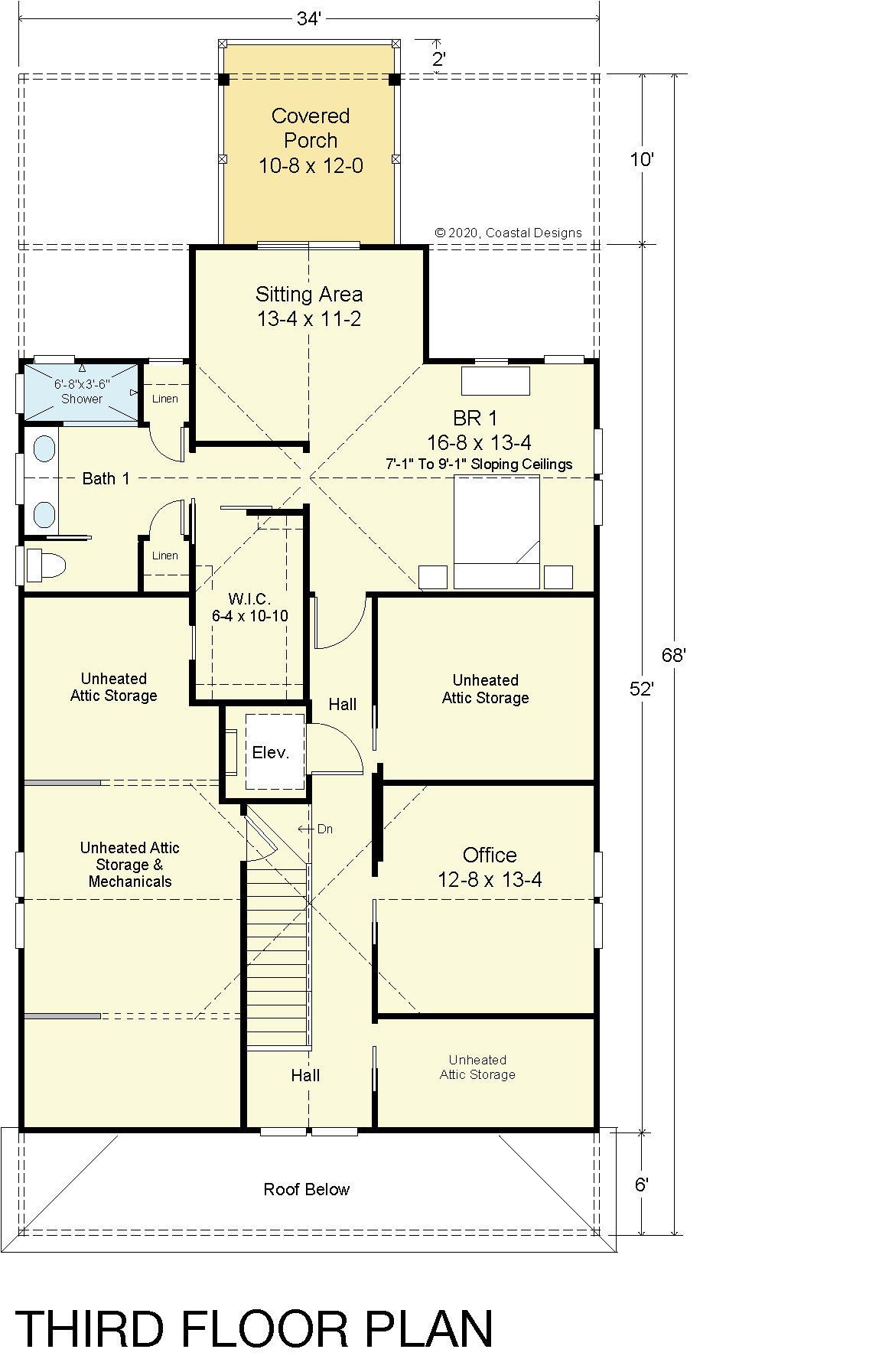

Third floor blueprint layout of a house with labels for rooms and measurements, including a covered porch, sitting area, bedroom, office, bathrooms, storage, and an elevator.

Square Feet

4779.3

Elevation

40’-8”

Number of Floors

4

Elevator

Yes

Bathrooms

6 Full / 2 Half

Bedrooms

8

Dimensions

34’-0” wide x 68’-0” deep x 40’-8” high

Ground Floor Ceiling Height

9’-0”

First Floor Ceiling Height

9’-0”

Second Floor Ceiling Height

9’-0”

Third Floor Ceiling Height

7’-1” Knee Walls to 9’-0” at Ceiling Ridge

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Shell Island 4780-8E is one of our largest house plans, which is 34’-0” wide x 68’-0” deep x 40’-8” high with a 4,779.3 sq. ft. living area!

This cottage plan includes the following:

- A main suite with a walk-in closet, sitting area, and attic storage areas on the third (top) floor
- Office on the top floor
- Seven additional bedrooms (one of them is a bunk room)
- Six full baths and two half baths
- Open-concept dining & living space, walk-in pantry, extra storage, & laundry room on the second floor
- Playroom on the first floor
- A handicapped elevator
- Covered porches
- Five vehicles and one golf cart/boating storage fit in two carports
- Outdoor shower & storage on the ground floor
- Outdoor spiral staircase from the ground floor to the first-floor porch

Please feel free to contact us for more information.
