Surf 1585-4E

Under 2,000 Sq. Ft.

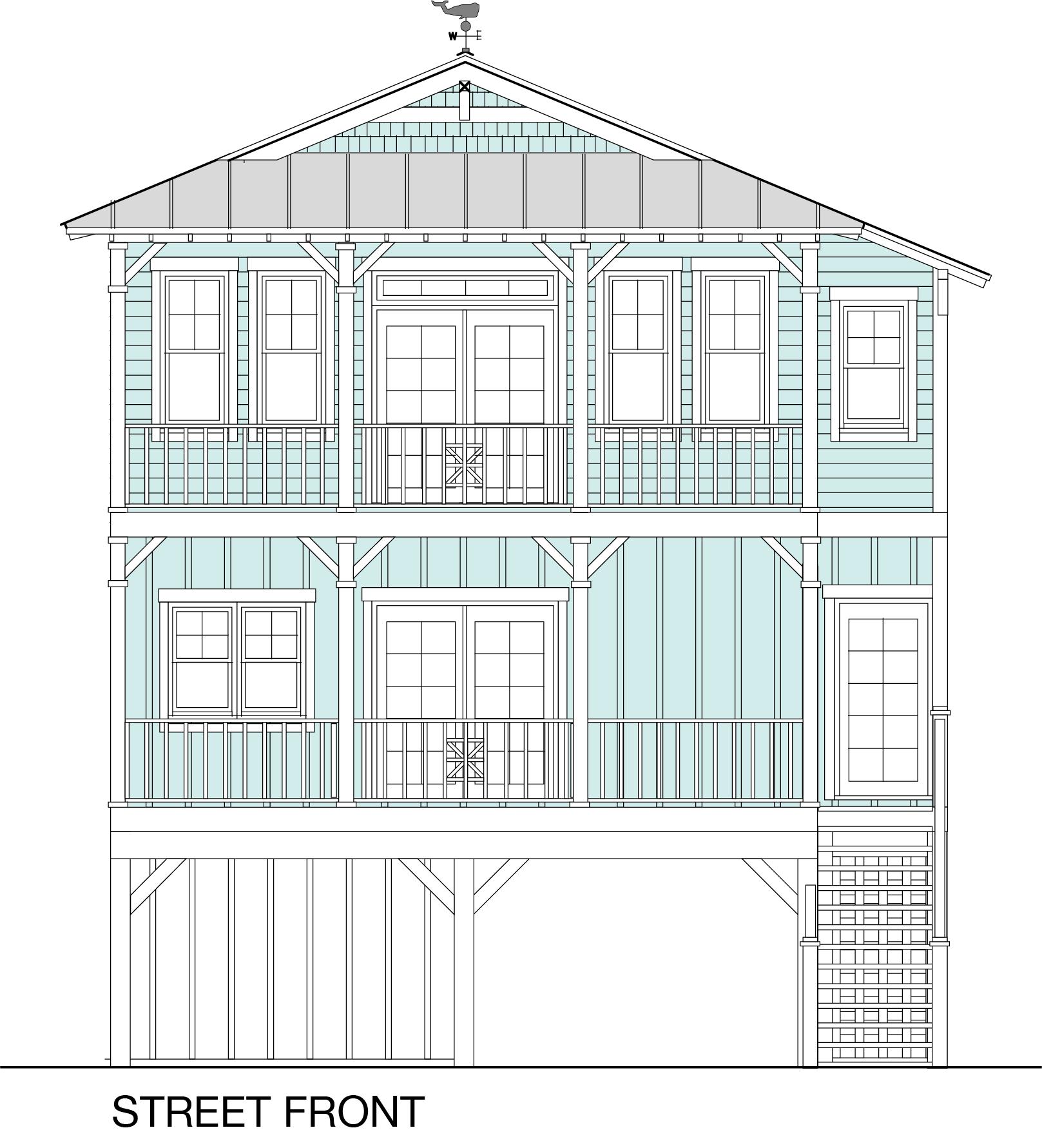

Architectural drawing of a three-story house with a front porch, balcony, and stairway, labeled street front.
A detailed architectural drawing of a two-story house with a light blue exterior, featuring three sets of French doors and two windows, two balconies on the second and first floors, and a roof with a weather vane and a weathervane at the top.

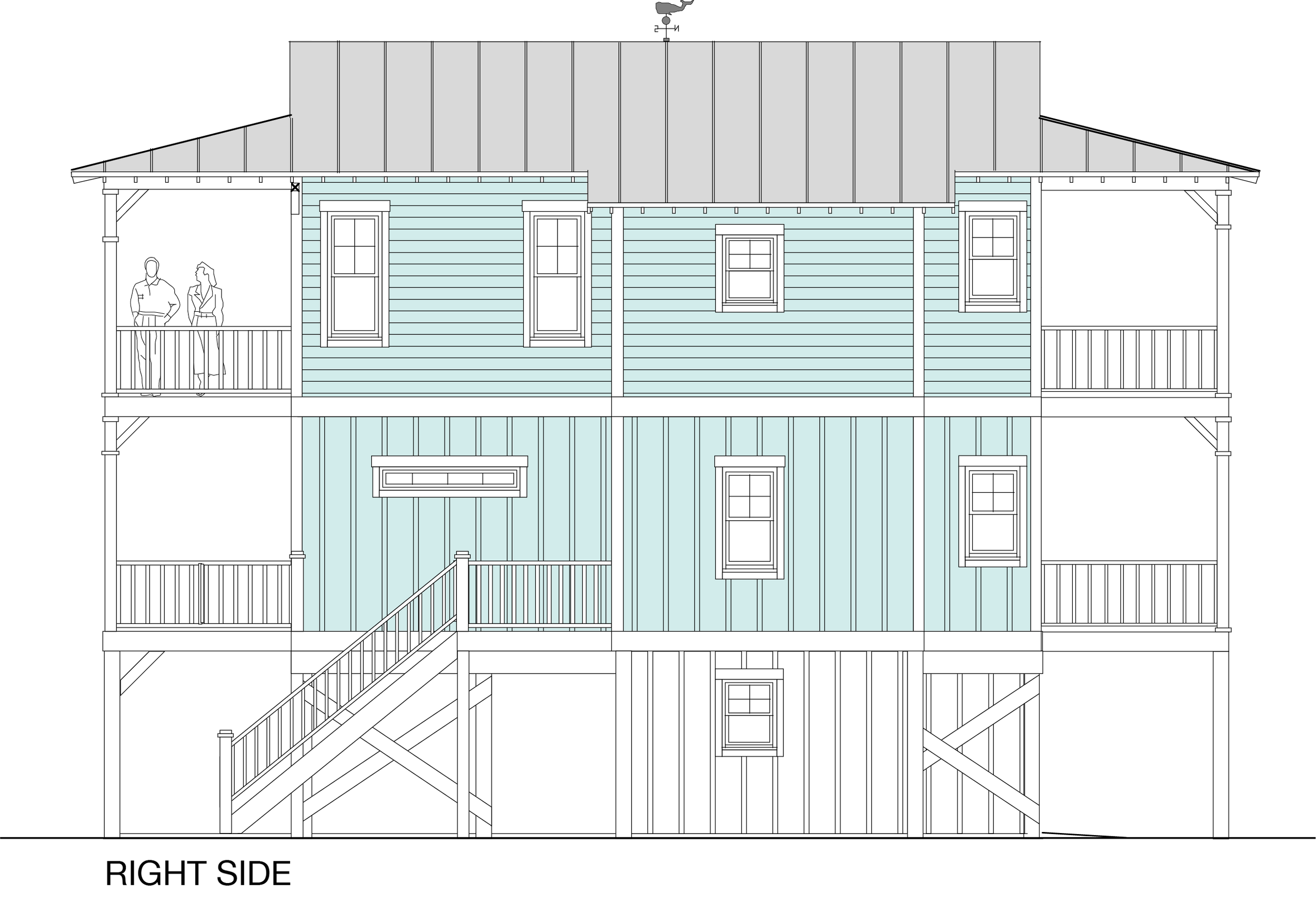

Architectural drawing of the right side of a multi-story house with exterior walls, windows, balconies, and stairs, with two people standing on the upper balcony.

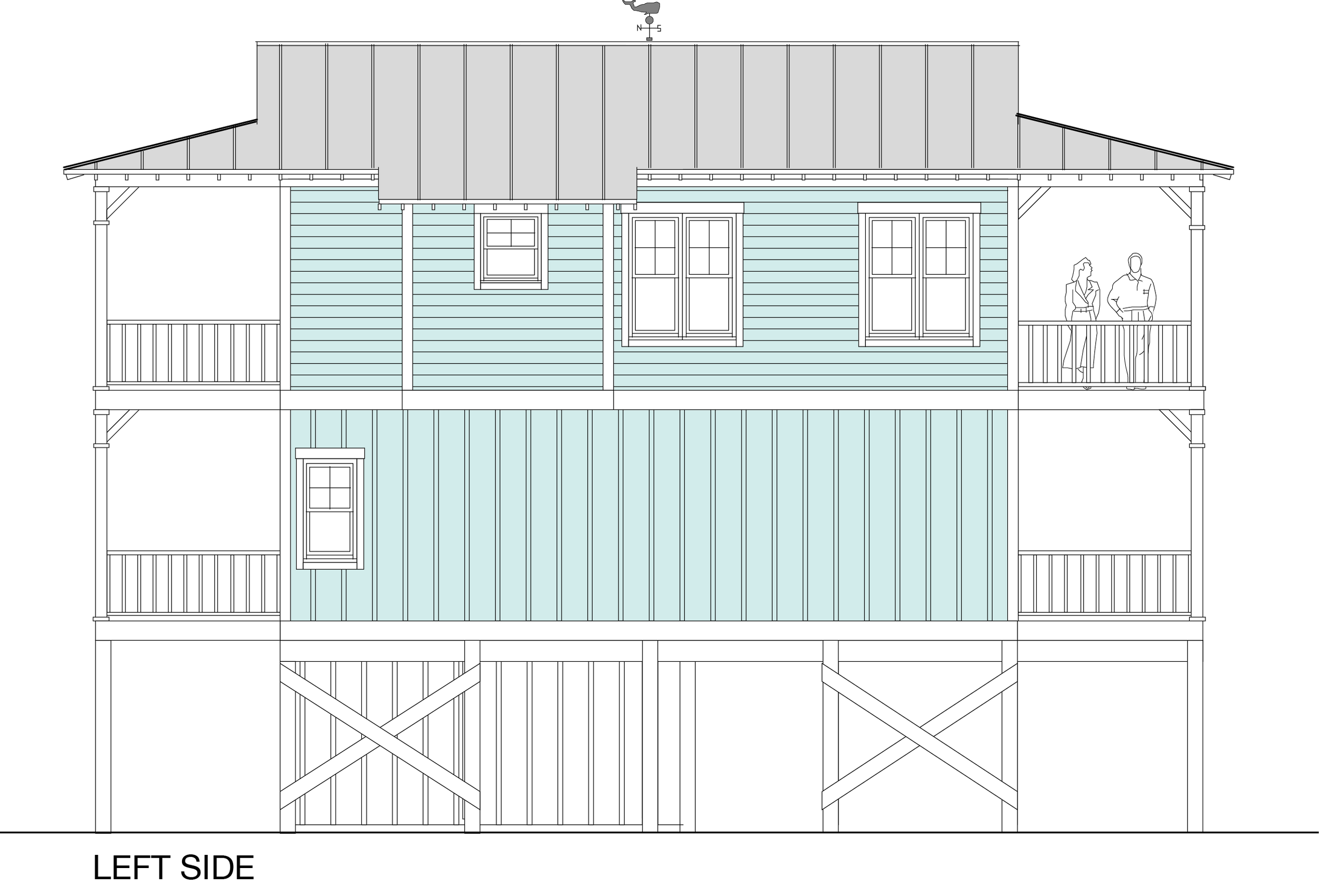

Architectural drawing of the left side of a two-story house with a balcony, windows, and exterior siding, including two figures on the balcony.

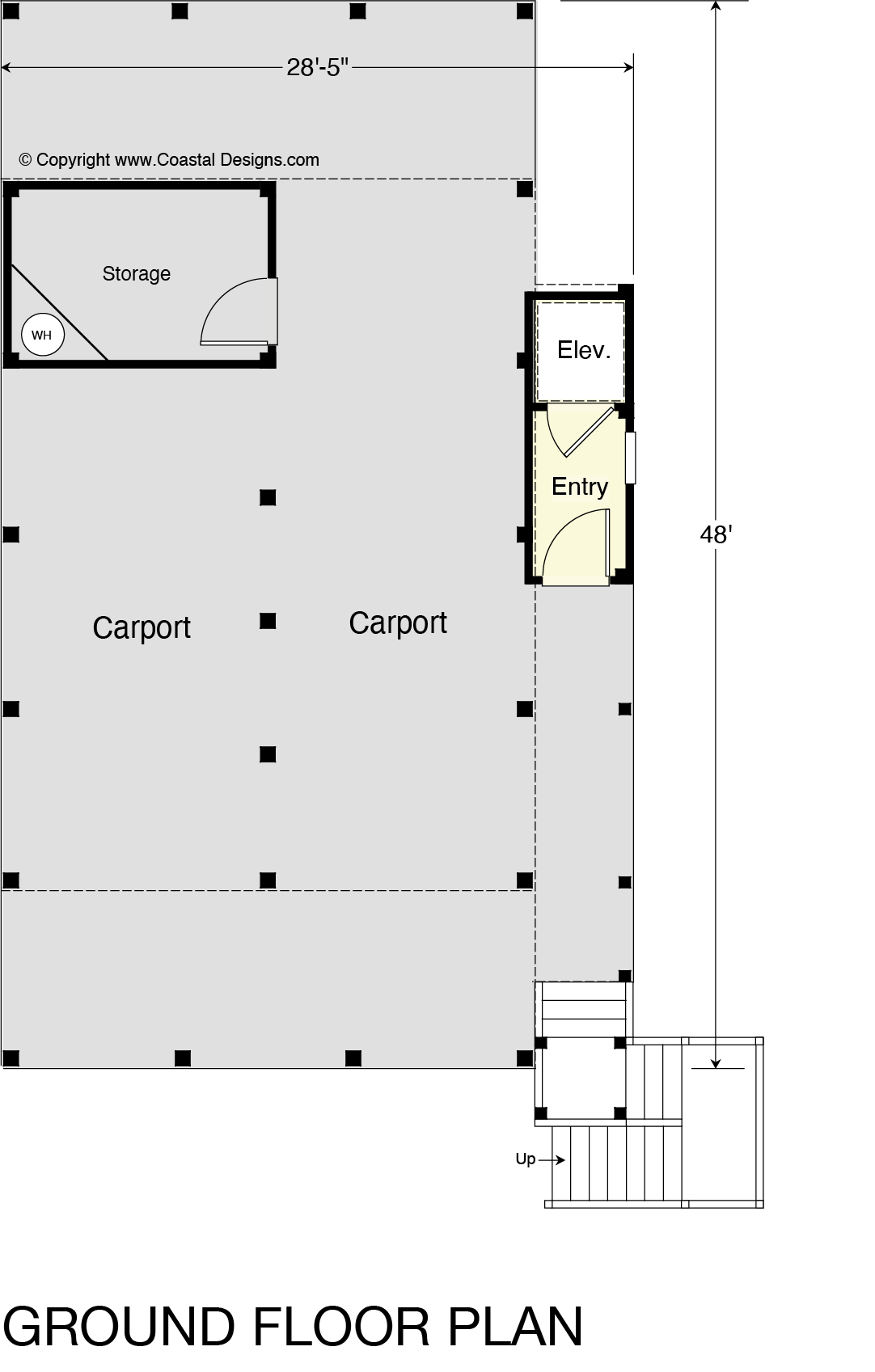

Ground floor plan of a building with designated areas for storage, two carports, an entryway with an elevator, and stairs leading up from outside.

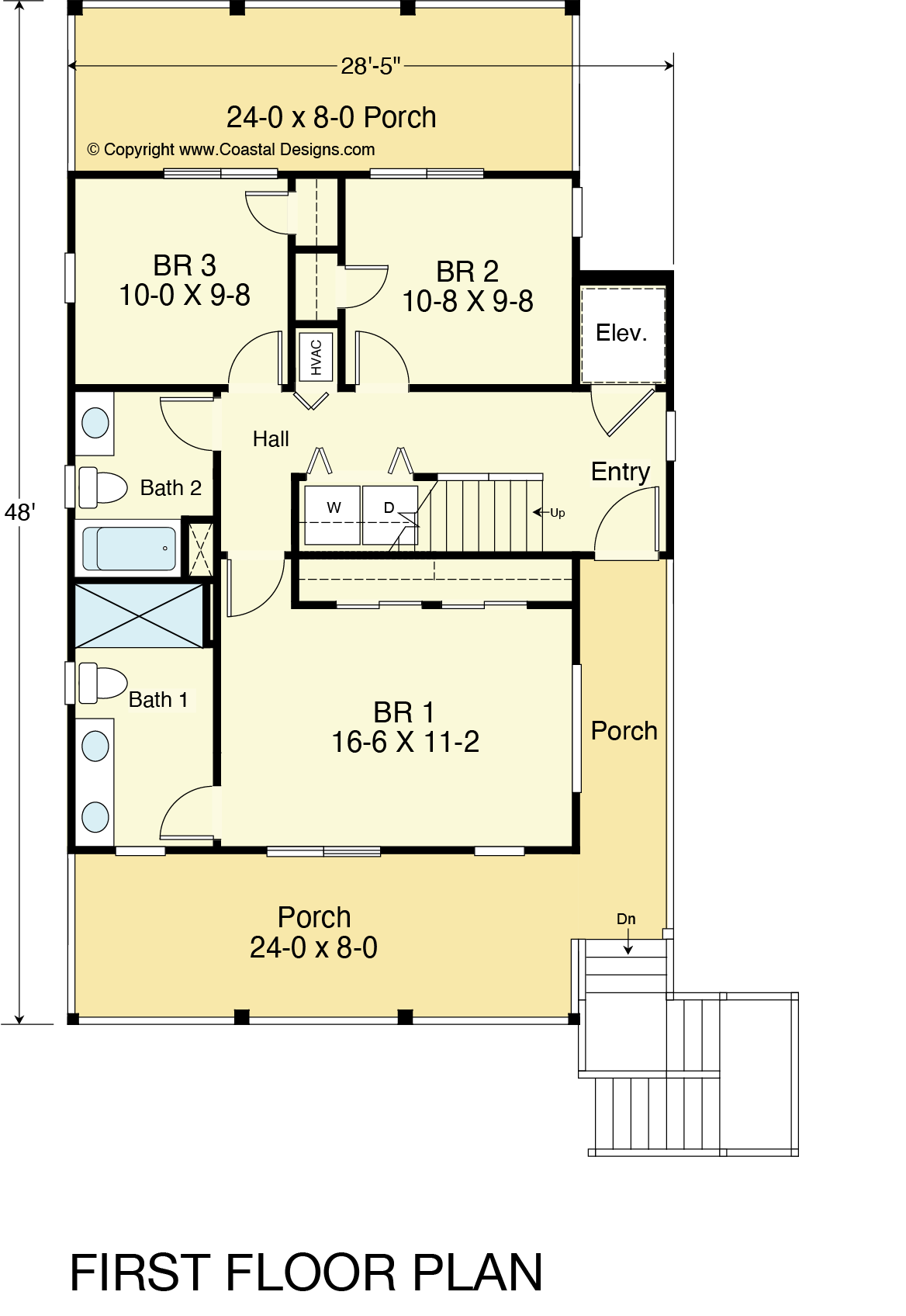

First floor plan of a house showing multiple bedrooms, bathrooms, porches, a hall, an entryway, an elevator, and a staircase, with specific room dimensions and labels for features like HVAC, washer, and dryer.
Second floor layout of a house with labeled rooms including porch, great room, kitchen, bedroom 4, bathroom 3, hall, and an elevator, with designated dimensions for each area.

Square Feet

1585.3

Elevation

42’-0”

Number of Floors

3

Elevator

Yes

Bathrooms

3

Bedrooms

4

Dimensions

30’-5” wide x 48’-0” deep x 42’-0” high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

9’-0"

Second Floor Ceiling Height

9’-0"

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

The beach house plan, Surf 1585-4E, is a spacious 1,585.3 sq. ft. residence with four bedrooms, three bathrooms, and an elevator for added convenience.

KEY FEATURES

Ground Floor: The ground floor includes carports, an entry area, and ample storage space for beach gear and equipment.

First Floor: The first floor is designed for relaxation and comfort. It features three bedrooms, two bathrooms, a designated area for a washer and dryer, an entry area, and porches in the front and back of the house, providing perfect spots to unwind and enjoy the coastal breeze.

Second Floor: The second floor includes a spacious great room, a well-equipped kitchen with an island, an additional bedroom, an extra bathroom, and front and back porches for outdoor enjoyment, offering ample space for entertaining and enjoying the beautiful beach views.
