Surf 1636-4E

Under 2,000 Sq. Ft.

Architectural line drawing of a three-story coastal house with porch, balcony, and stairway, featuring blue siding, multiple windows, and labeled carport areas in the front.

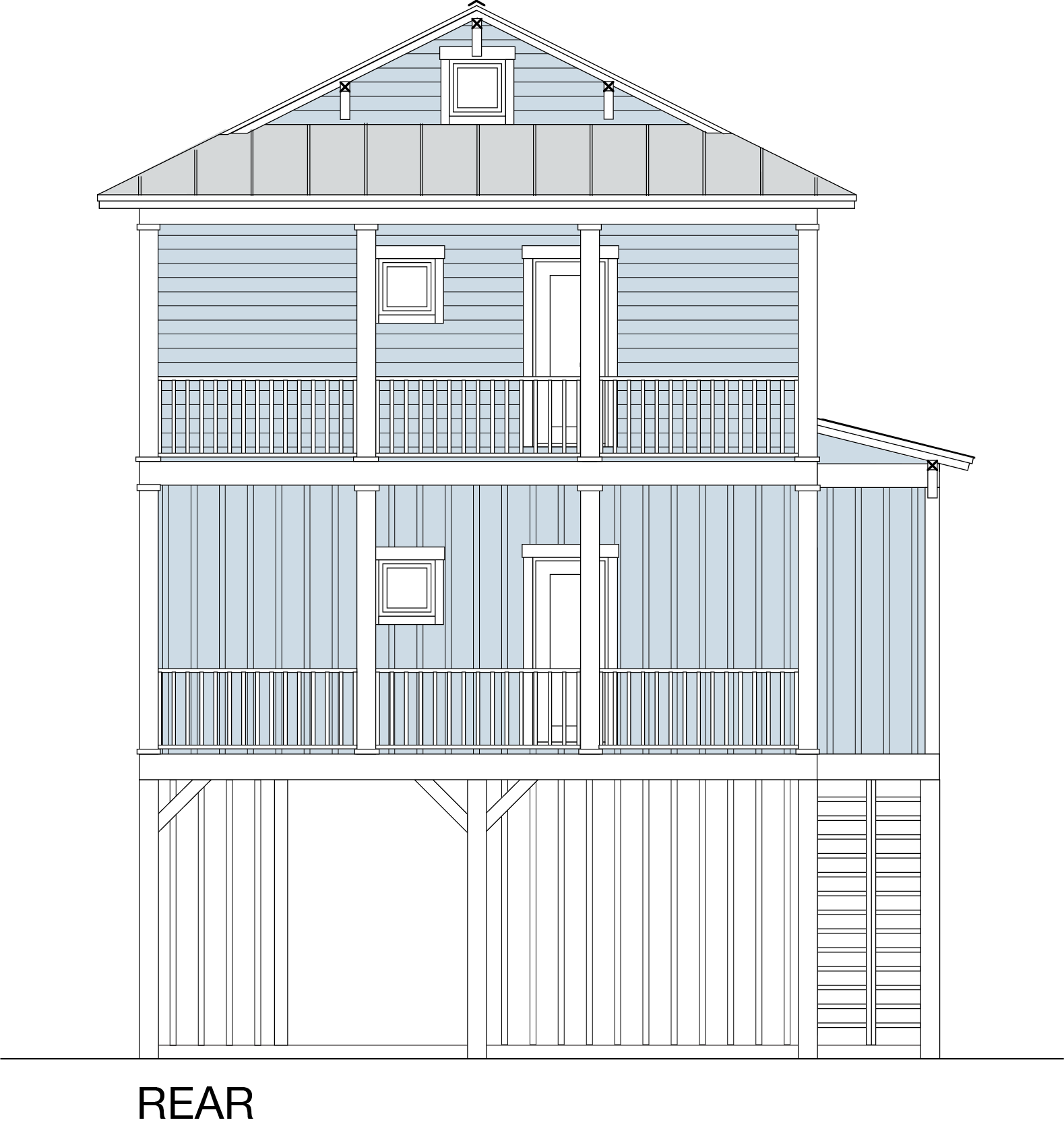

Blueprint drawing of the rear view of a multi-story house with wooden siding, balconies with railings, windows, and a roof.

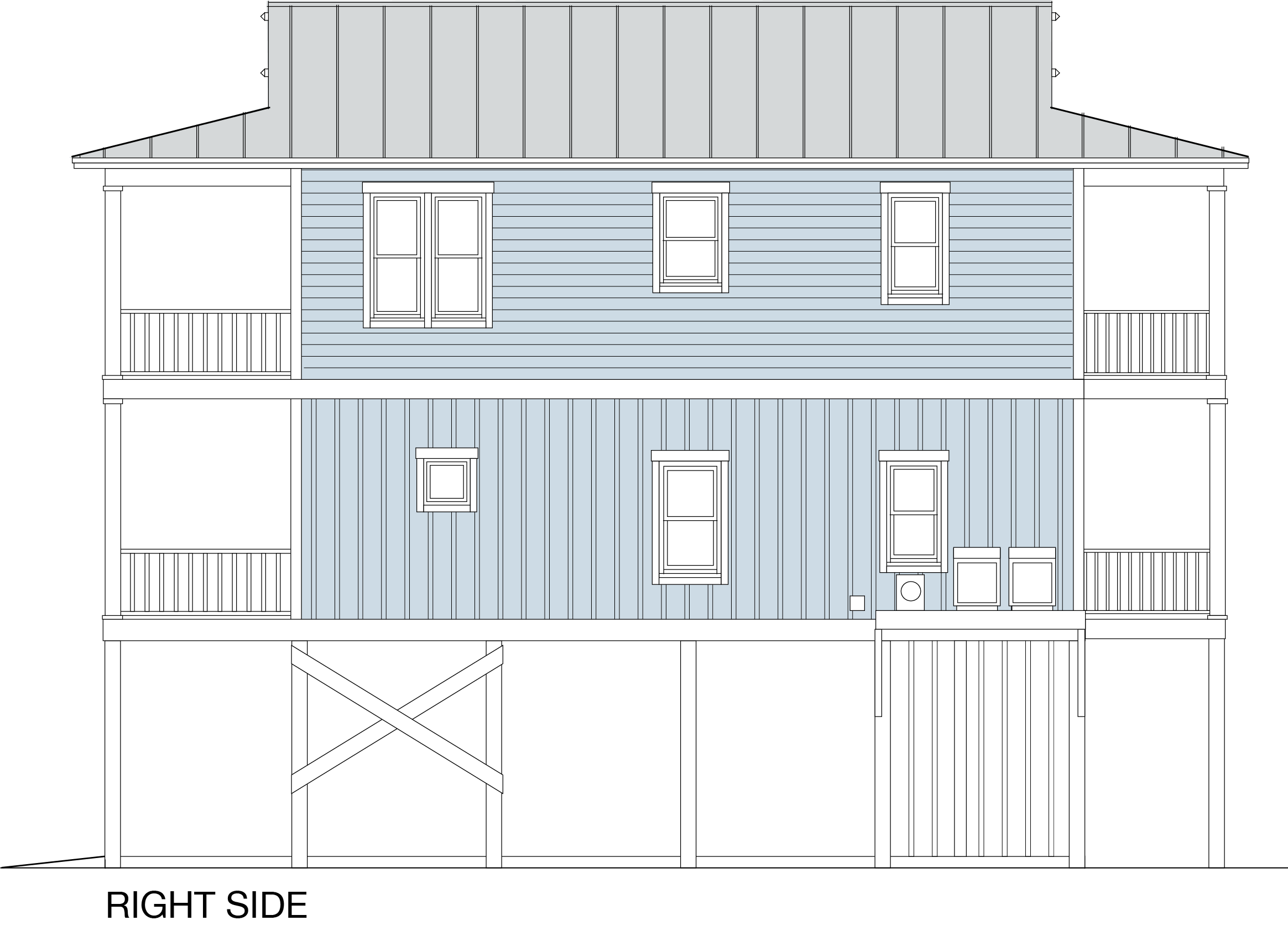

Line drawing of a two-story house with a metal roof, blue vertical sidings, and multiple windows, labeled as right side.

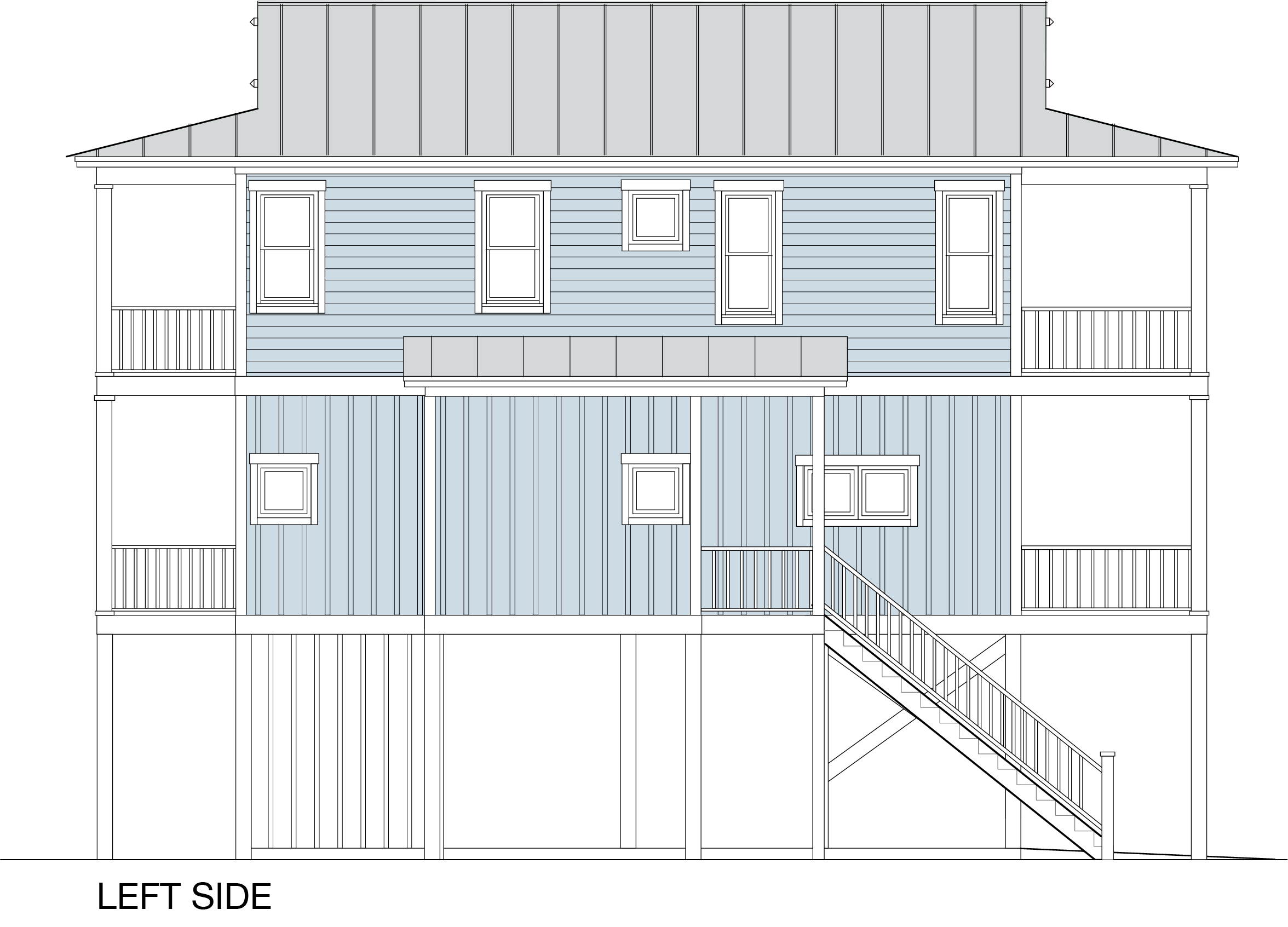

Line drawing of the left side elevation of a two-story house with a gabled roof, multiple windows, and a staircase leading up to a door.

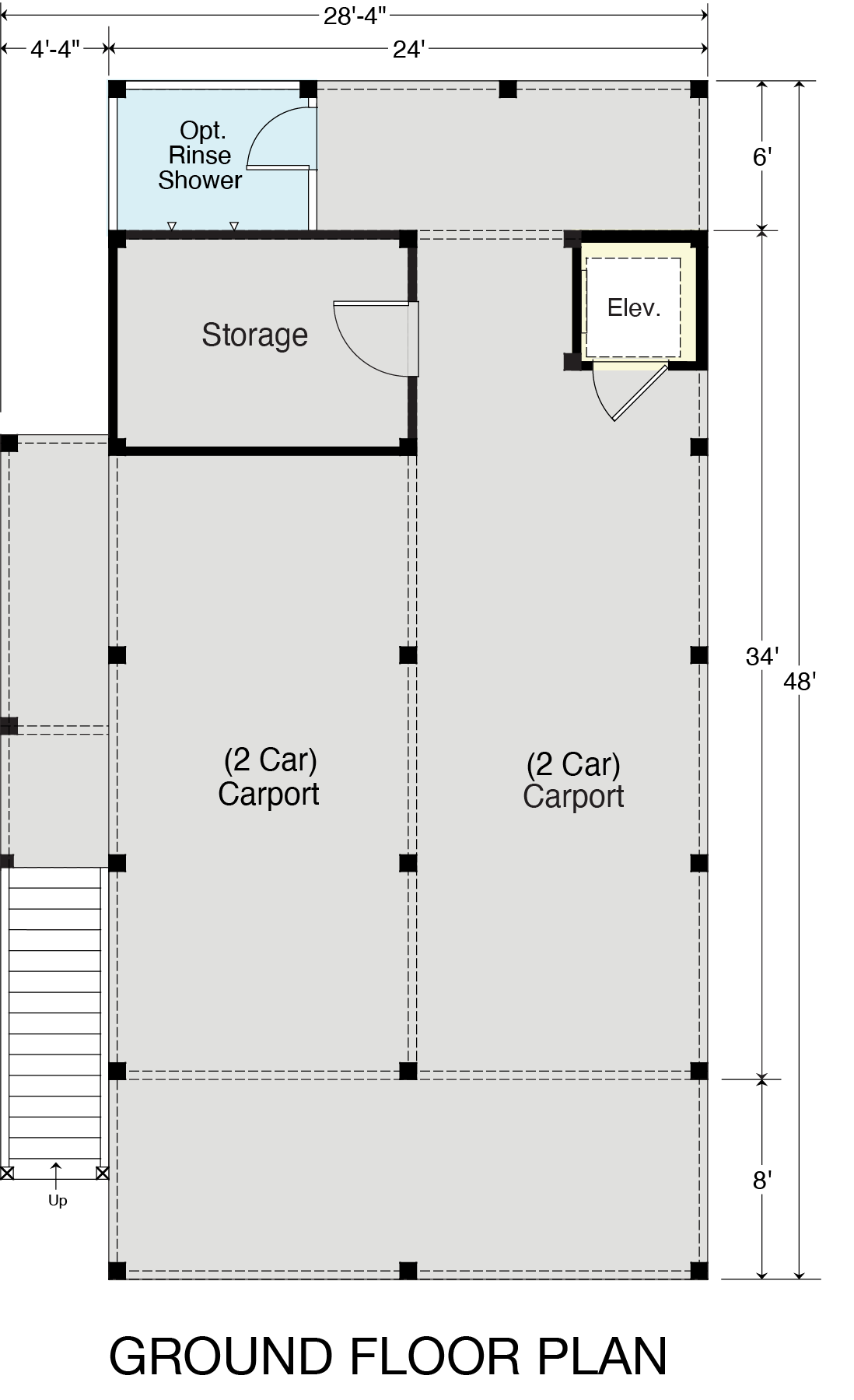

Ground floor plan of a building showing two 2-car carports, storage room, optional rinse shower, and elevator.

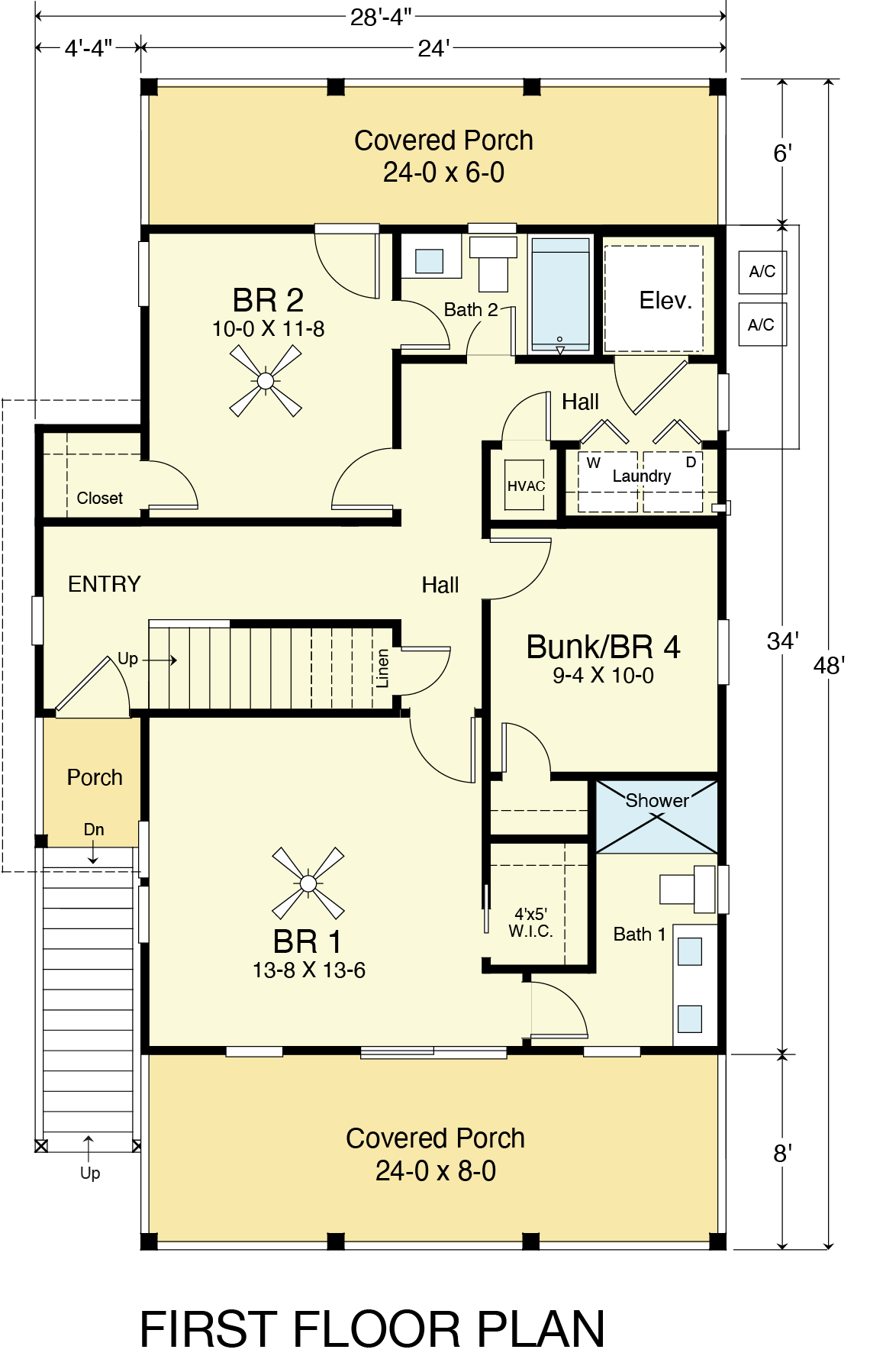

A detailed architectural floor plan of a house's first floor, showing dimensions, room labels, and layout including bedrooms, bathrooms, porch areas, a covered porch at the back, and utility areas.
The second floor plan of a house showing two covered porches, a great room, a kitchen, a bedroom, a bathroom, a hall, an elevator, a pantry, and a stairway.

Square Feet

1636

Elevation

37’-2”

Number of Floors

3

Elevator

Yes

Bathrooms

3

Bedrooms

4

Dimensions

24'-8" wide x 48'-0" deep x 37'-2" high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

9'-1 1/2" Ceilings

Second Floor Ceiling Height

9'-1 1/2" Ceilings

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

Introducing a rare and exceptional four-bedroom cottage covering less than 1,700 sq. ft., complete with a convenient elevator. This unique dwelling boasts an inverted plan featuring a spacious living area on the top floor, making it an ideal choice for locations with 38' height restrictions.

HIGHLIGHTED FEATURES

- Four bedrooms and three bathrooms for ample accommodation
- Elevator access available on all floors, ensuring convenience for all inhabitants
- The top floor comprises a remarkable great room with a vaulted ceiling, a well-appointed kitchen, and a bedroom/bathroom
- Providing shelter for two cars with the inclusion of two-car carports
- Enjoy the outdoors with covered porches, perfect for relaxation and leisure
- Ground floor storage space to efficiently manage belongings
- Optional outdoor rinse shower for added comfort and convenience

For further information and details, please don't hesitate to contact us.
