Waterside 3045-6E

Over 2,000 Sq. Ft.

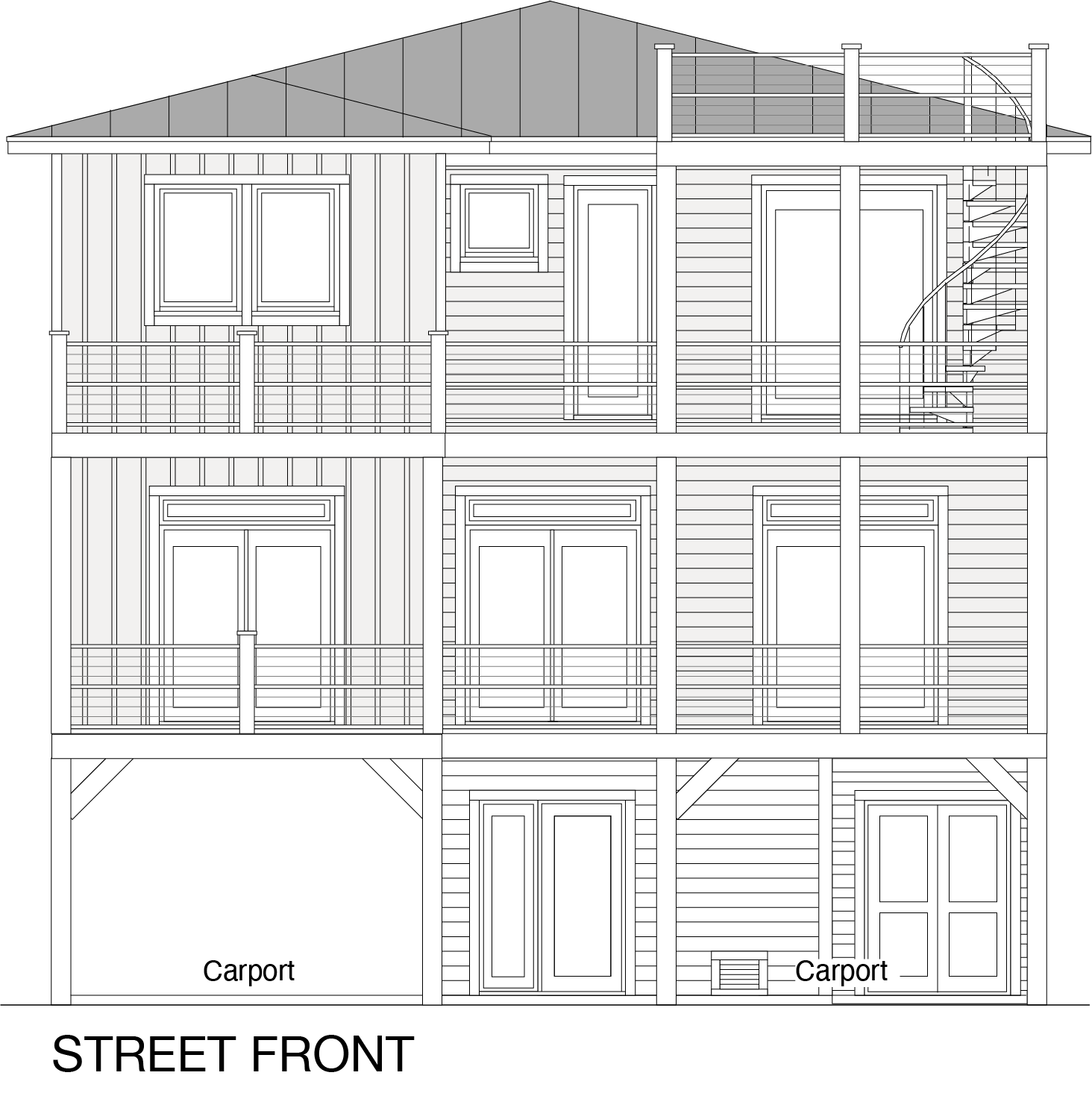

A detailed architect's line drawing of a three-story residential building. The building features multiple windows and doors, balconies with railings, external stairs on the right, and carports on the ground level.

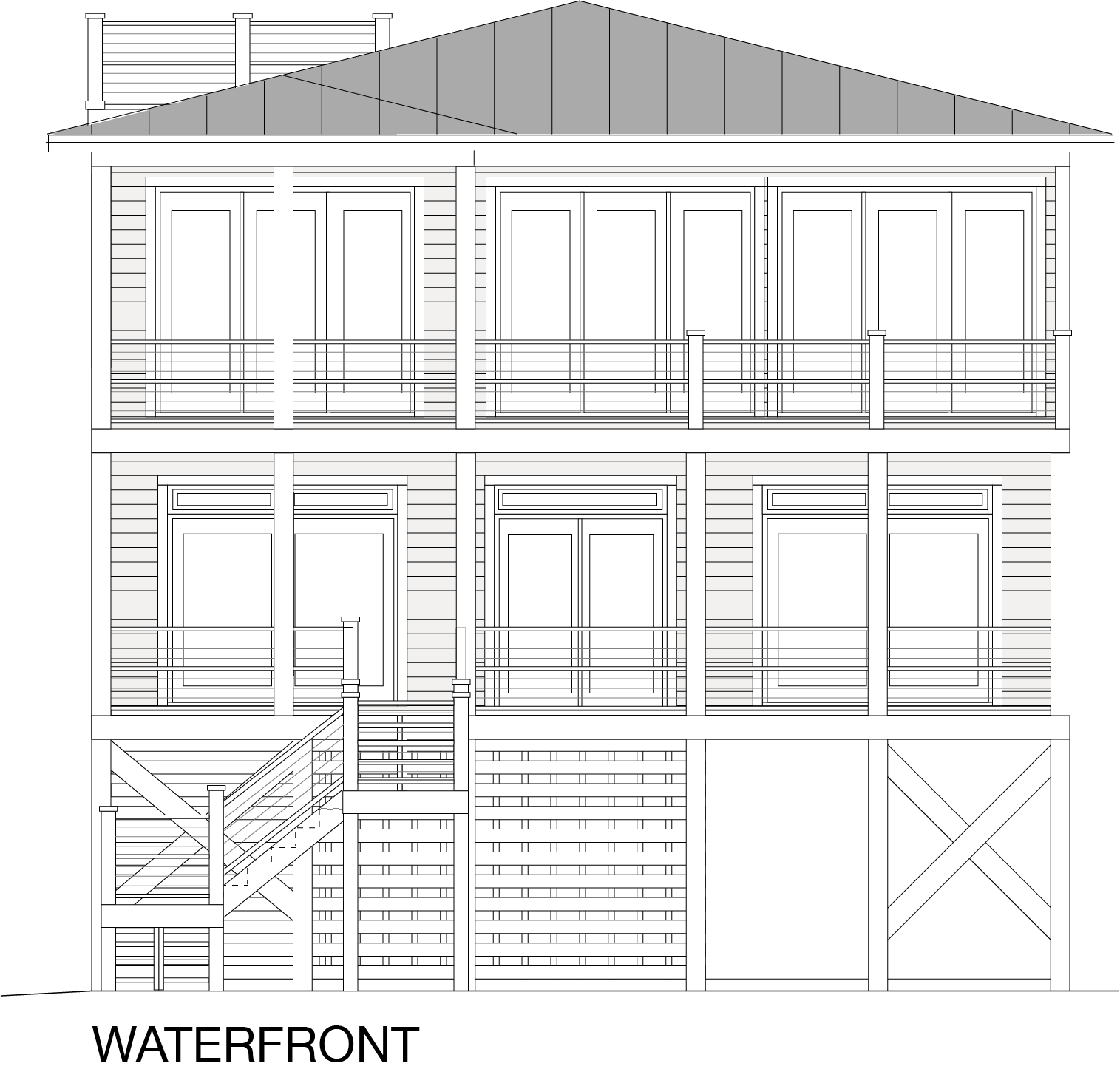

Architectural line drawing of a waterfront house with two floors, multiple large windows and glass doors, a staircase on the left side, and a sloped roof.

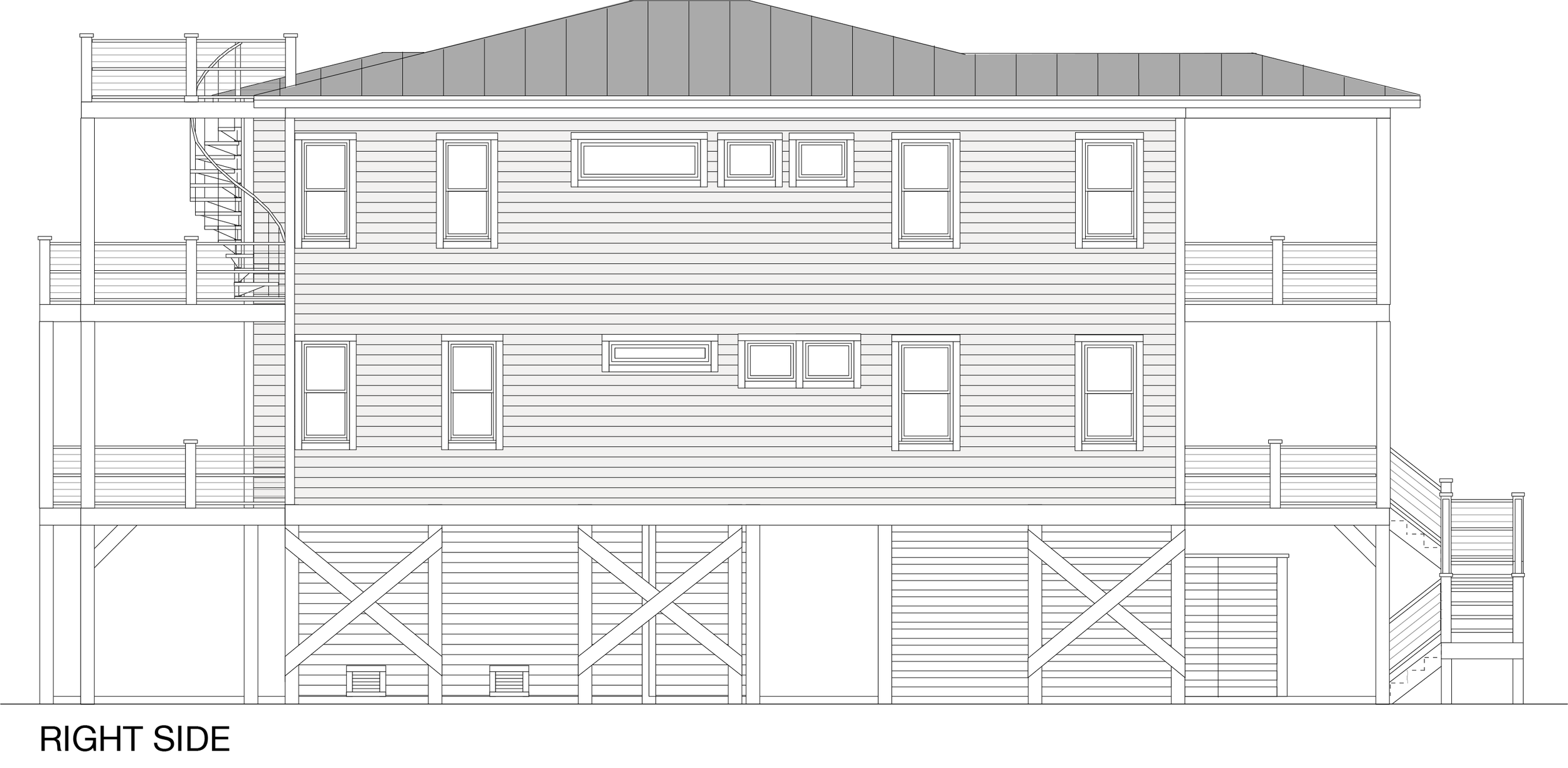

Architectural drawing of the right side of a multi-story house with a roof, windows, railings, and stairs.

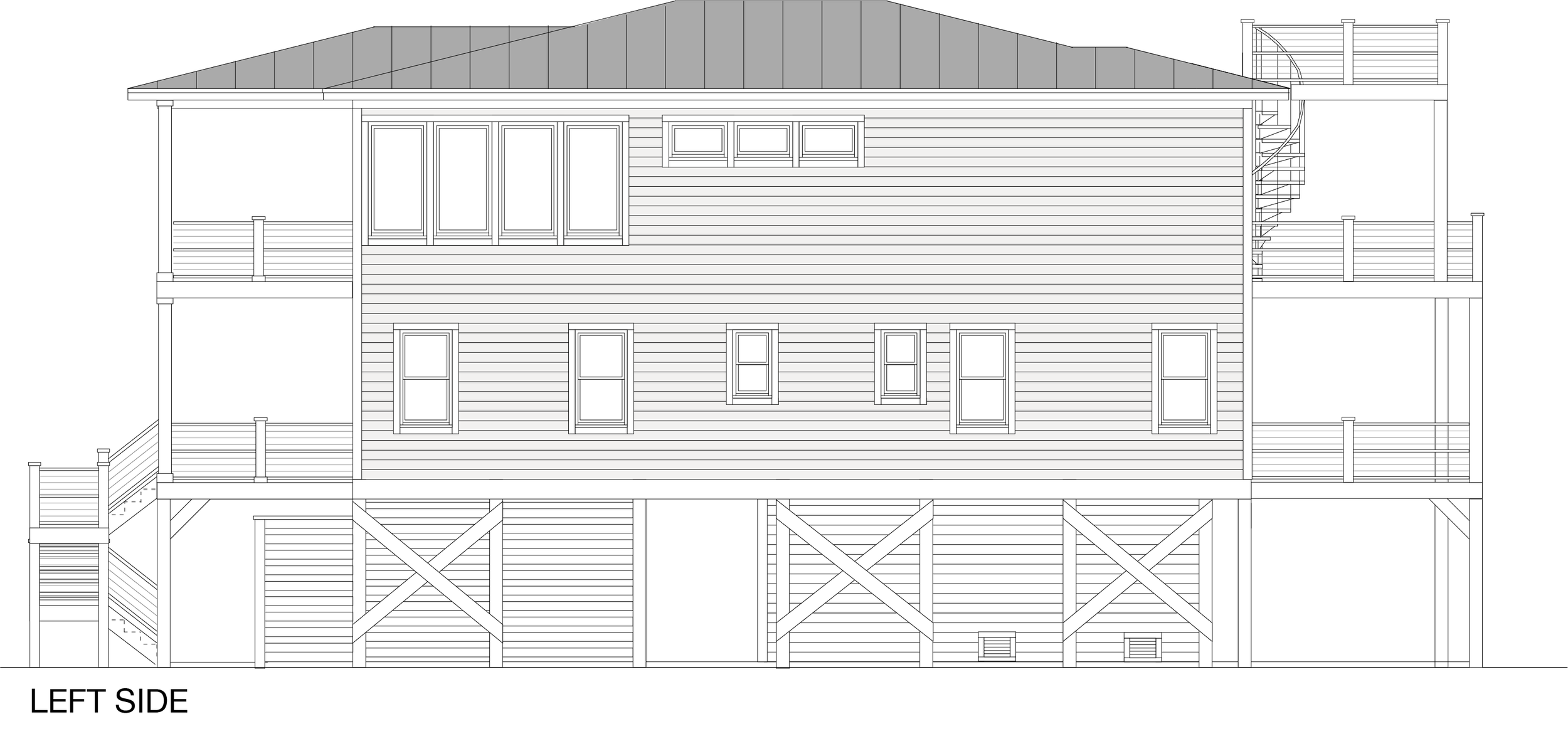

Blueprint of a house's left side exterior elevation showing multiple windows, a staircase, a deck, and support beams.
Architectural ground floor plan of a building featuring an entry foyer, hall, two carports, storage rooms, an elevator, a breezeway, a rinse shower area, and a porch above with dimensions.

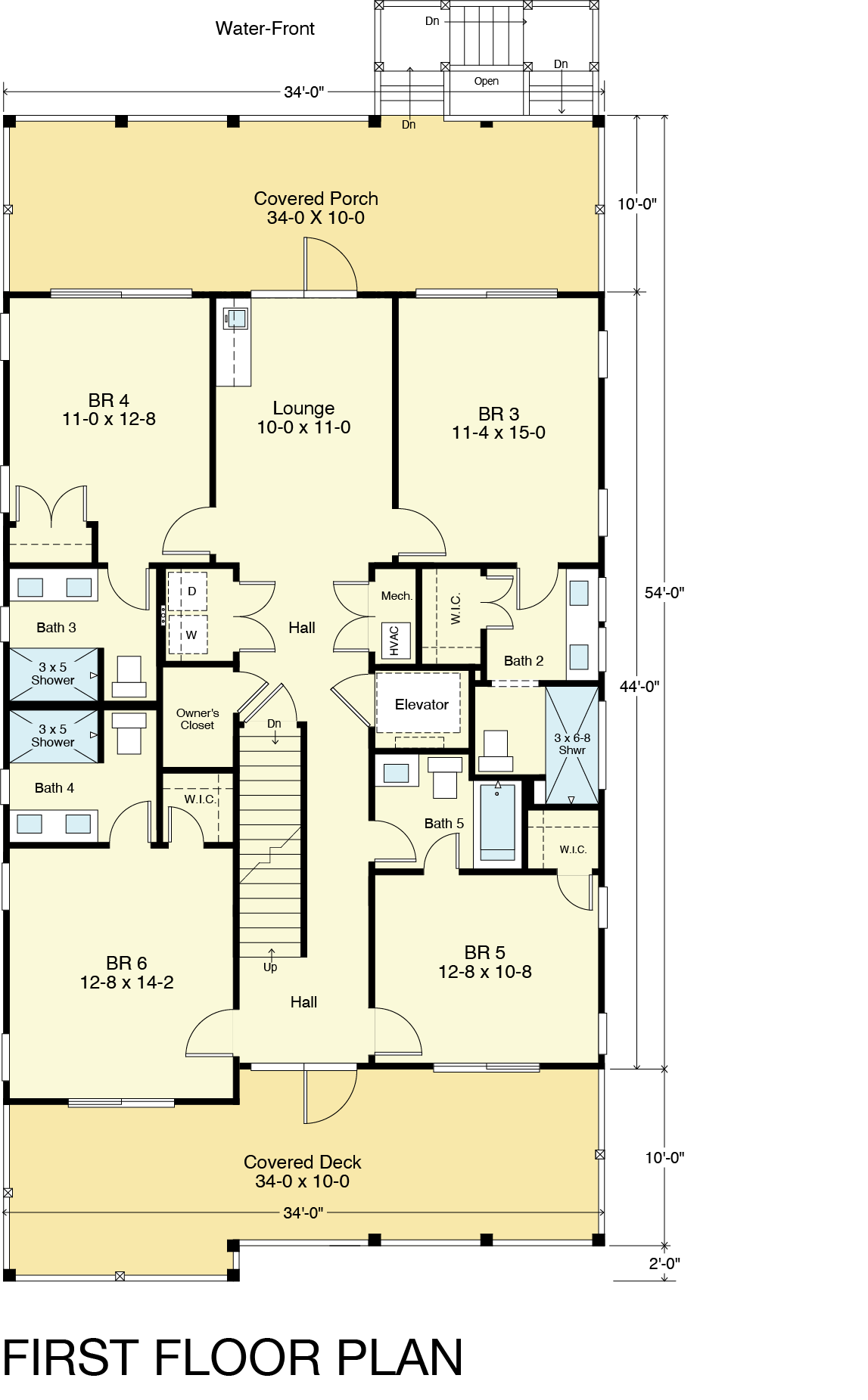

Floor plan of a house with bedrooms, bathrooms, a lounge, hallways, an elevator, closets, and a covered porch and deck.
Second floor plan of a house featuring multiple bedrooms, bathrooms, a large great room, a kitchen, dining area, and multiple covered and uncovered decks.

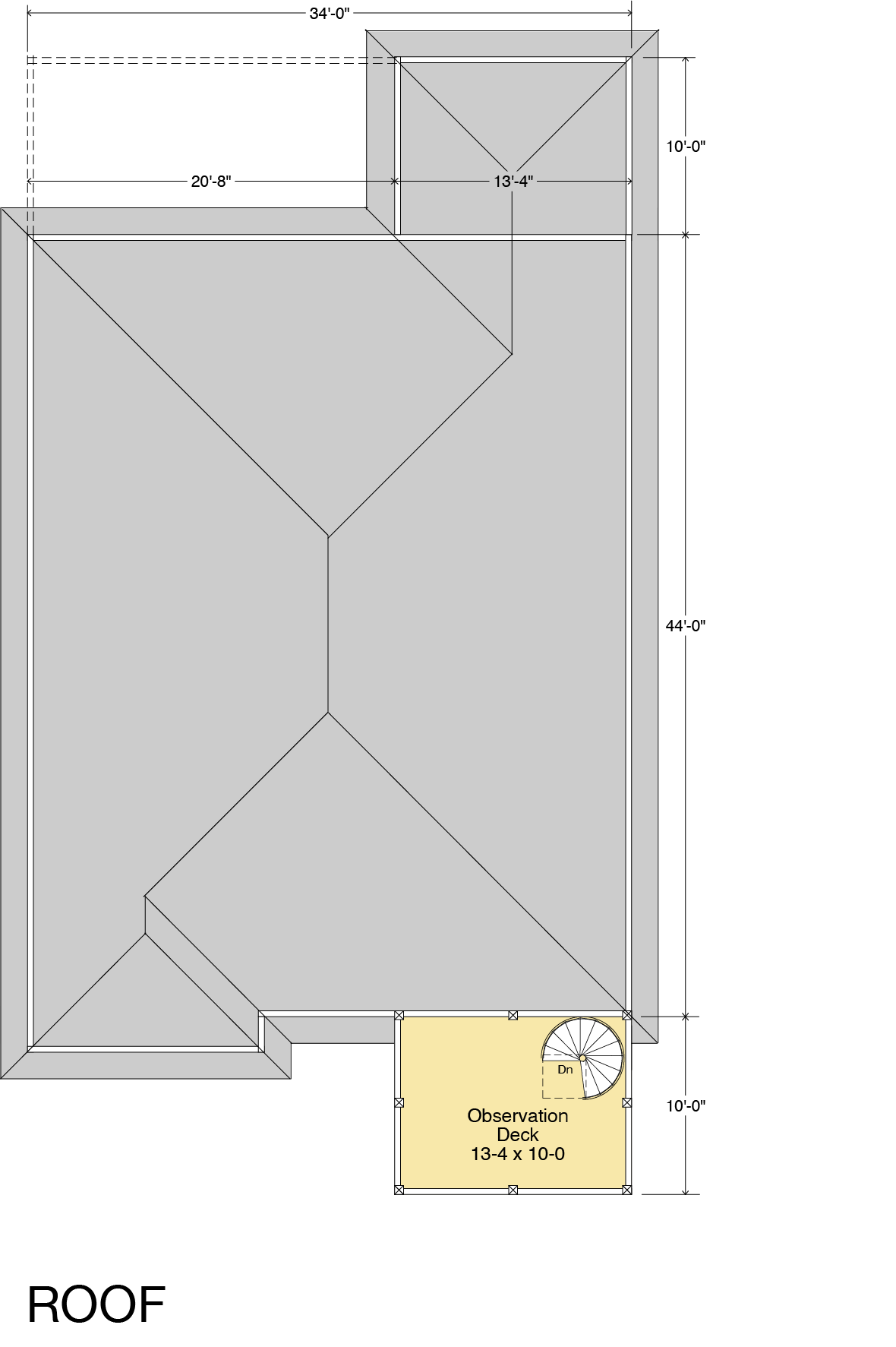

Architectural roof plan with dimensions, including an observation deck measuring 13-4 by 10-0, and a spiral staircase in the corner of the deck.

Square Feet

3045.4

Elevation

34’-8”

Number of Floors

3

Elevator

Yes

Bathrooms

6

Bedrooms

6

Dimensions

34’-0” wide x 64’-0” deep x 34’-8” high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

9’-1 1/2”

Second Floor Ceiling Height

9’-1 1/2” + Vaulted

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

This plan features a spacious six-bedroom design. All the bedrooms are located on the first floor, while the great room, kitchen, main bedroom, and second bedroom are on the top floor. The kitchen, dining, and living areas are spread across the entire depth of the top floor, with enormous vaulted ceilings in the living room and main bedroom, making the space feel even more spacious. A spiral staircase leads up to a unique Observation Deck at the back. This extraordinary plan offers a total living space of 3,045 square feet. It is less than 35 feet high and 34 feet wide, making it suitable for specific zoning areas.
