Home > Over 2,000 Sq. Ft. Plans > Beachgrass 2573-5E

Beachgrass 2573-5E

Over 2,000 Sq. Ft.

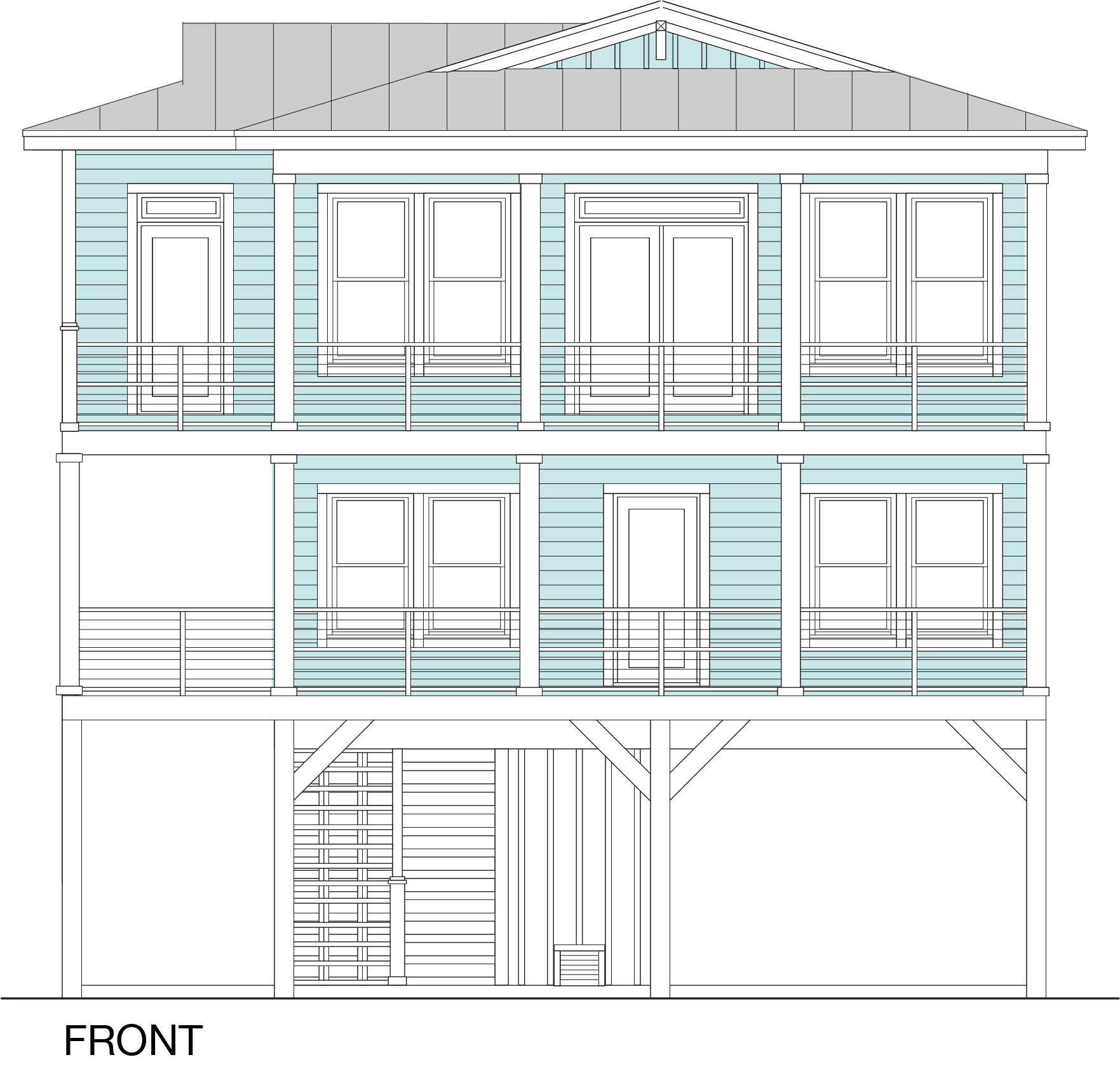

Architectural blueprint of a three-story house with detailed front elevation, blue siding, multiple windows, and balconies with railings, labeled 'FRONT' at the bottom.

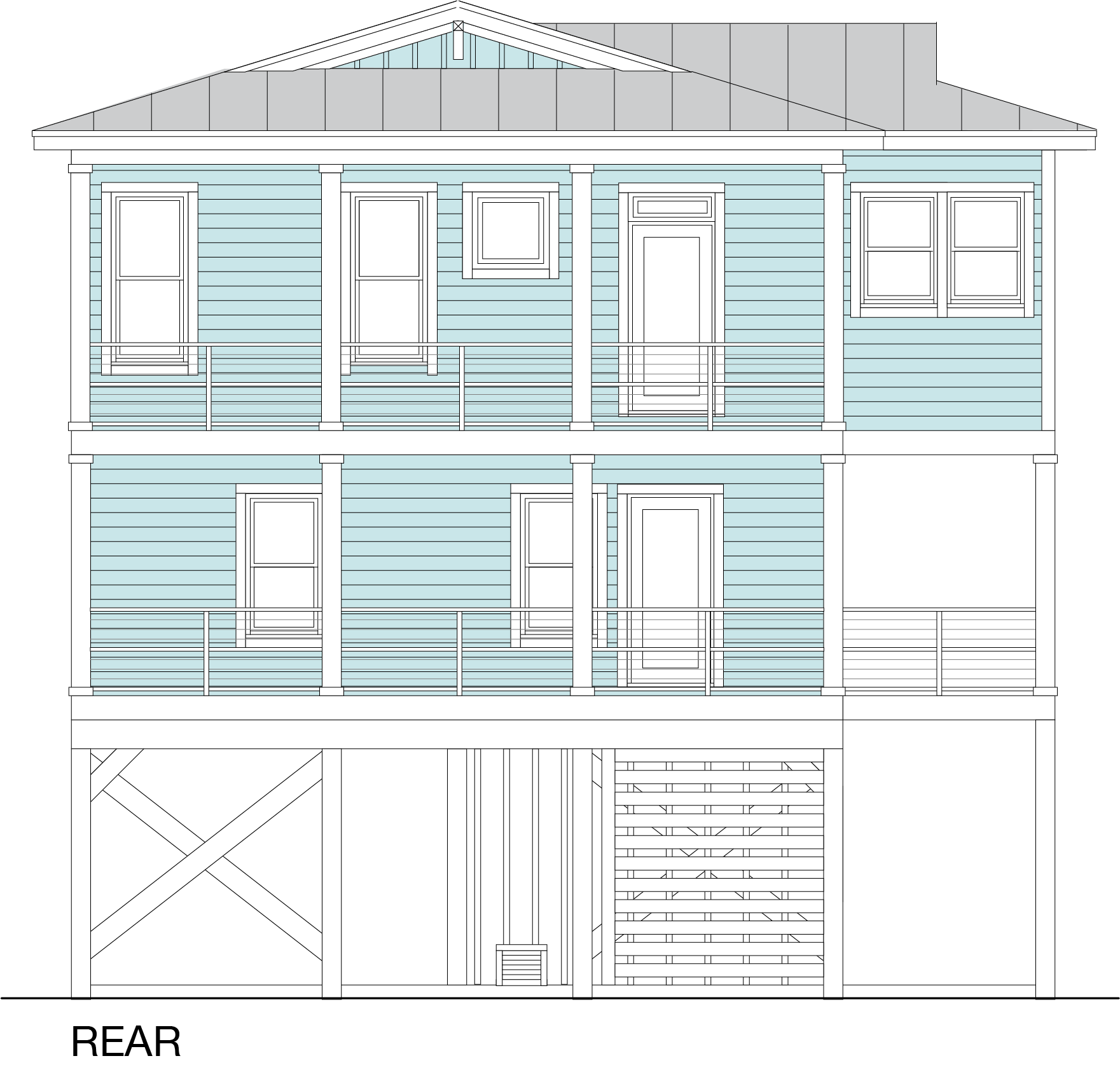

Architectural blueprint of the rear of a multi-story house with light blue siding, windows, doors, and a balcony with railings, showing detailed structure and support elements.
Architectural drawing of the right side of a multi-story house with blue siding, multiple windows, balconies, and a raised foundation with support beams.

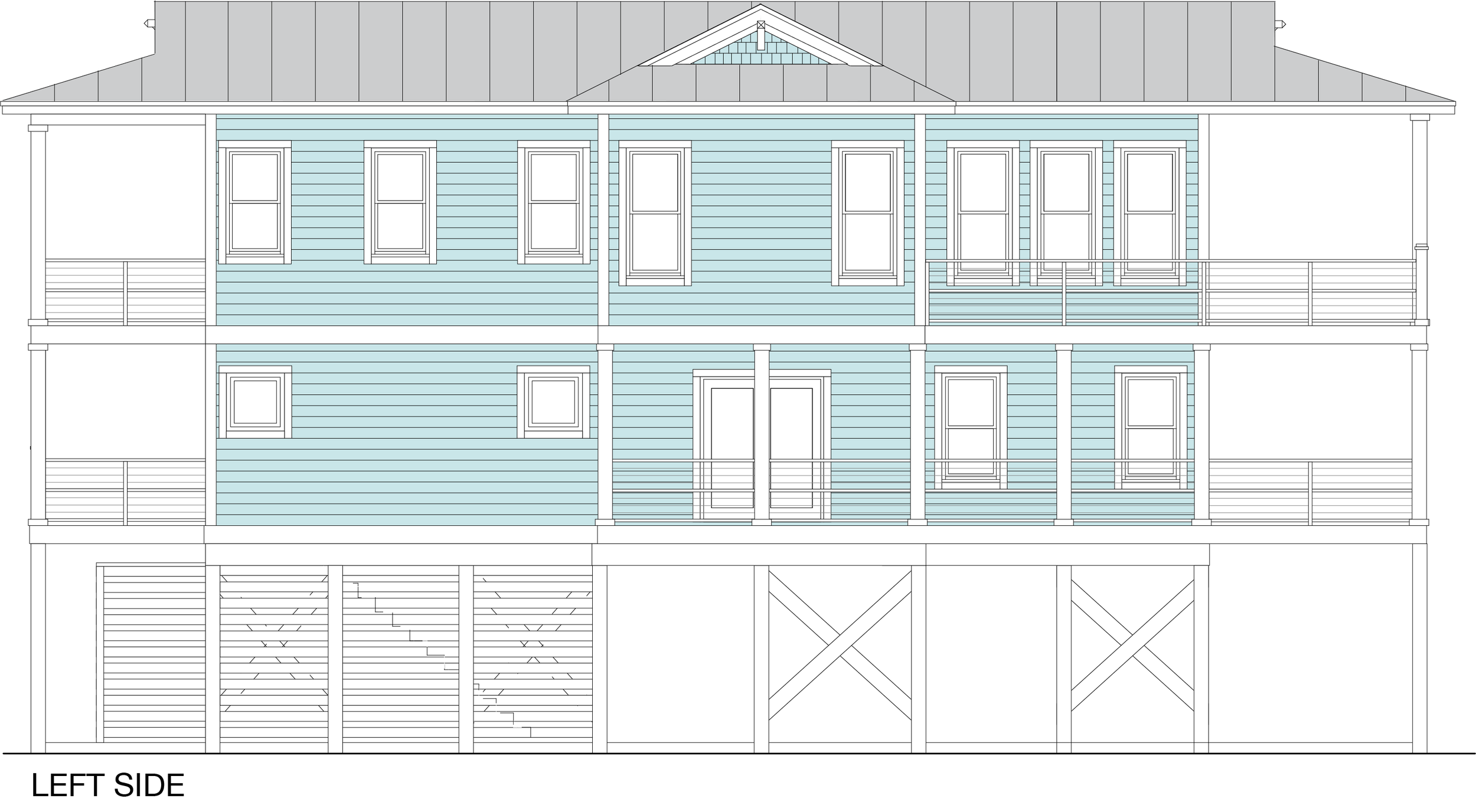

Architectural drawing of a three-story house's left side. Light blue horizontal siding exterior, several windows with white trim, and a sloped metal roof. The house has two balconies with railing on each level and a covered ground level with structur

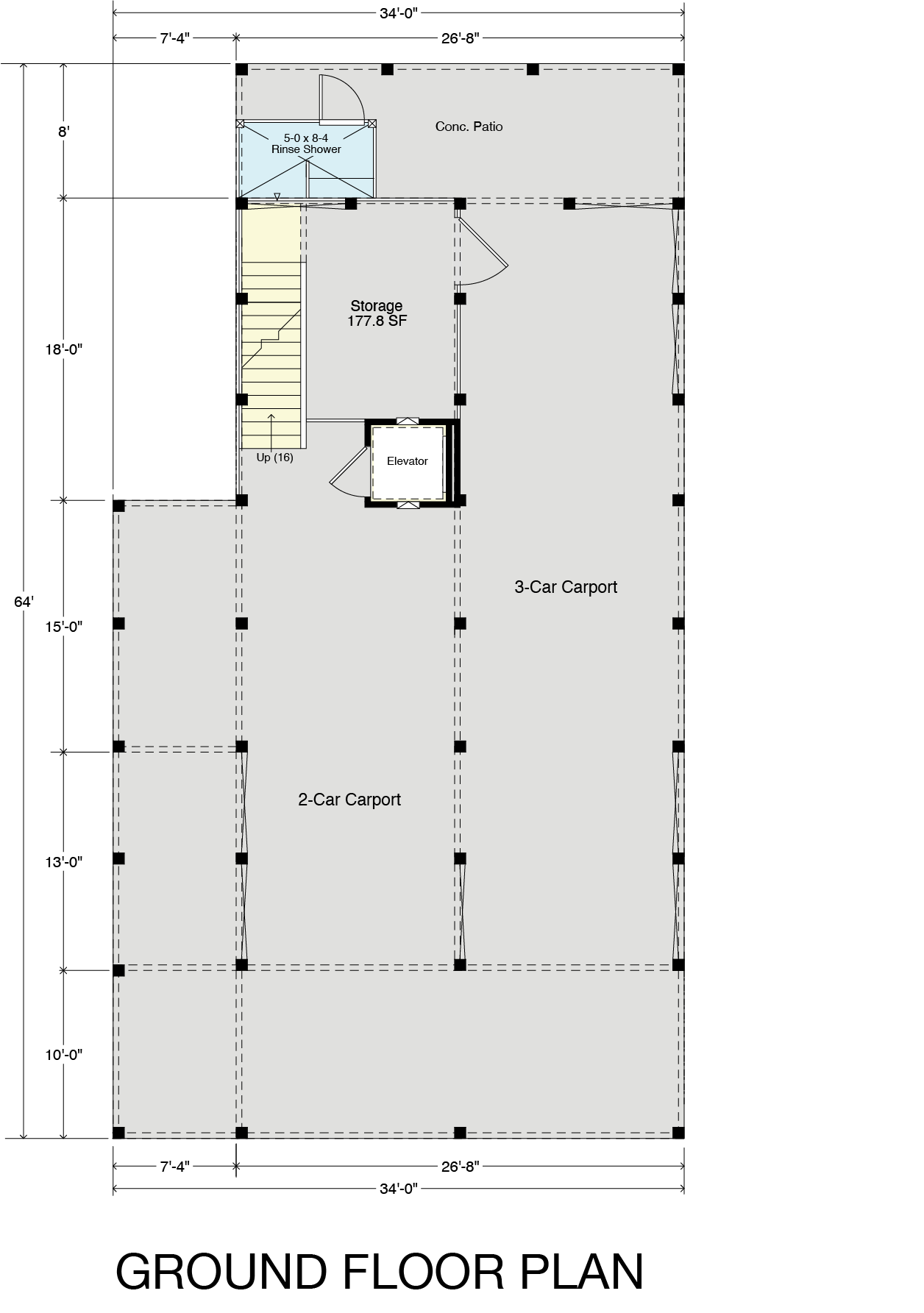

Ground floor plan of a building showing a concourse patio, storage room, elevator, and two carports (a two-car and a three-car carport) with detailed dimensions.
First floor house plan with labeled rooms, porches, stairs, and dimensions.

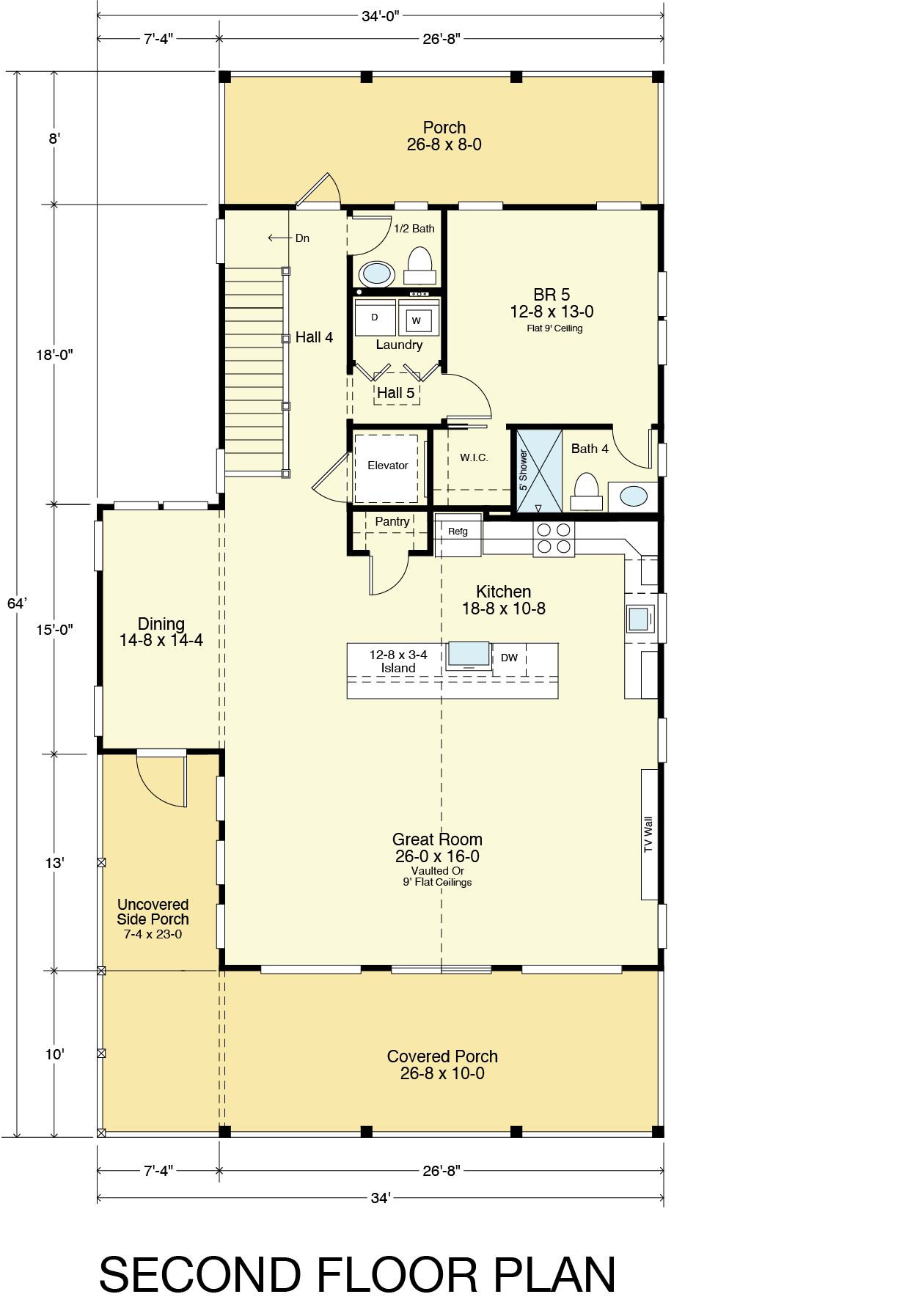

Second floor house plan with labeled rooms including grand room, kitchen, bedroom 5, bathrooms, laundry, porches, and hallways.

Square Feet

2573.2

Elevation

34’-8”

Number of Floors

3

Elevator

Yes

Bathrooms

4.5

Bedrooms

5

Dimensions

34’-0” wide x 64’-0” deep x 34’-8” high

Ground Floor Ceiling Height

9’-1 ½”

First Floor Ceiling Height

8’-1 ½”

Second Floor Ceiling Height

9’-1 ½” + Vaulted

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

If you plan to build a comfortable and spacious cottage by the beach, the Beachgrass 2573-5E home plan could be the perfect fit. This plan features a main suite, four additional bedrooms, 4 ½ bathrooms, an open-concept dining and living space on the top floor, wraparound covered porches, and an elevator. The plan has a width of 34'-0", a depth of 64'-0", a height of 34'-8", and a living area of 2,573.2 square feet.

If you need more information, please feel free to contact us.
