Clearwater 2816-5E

Over 2,000 Sq. Ft.

Architectural drawing of a three-story house with blue siding, a garage on the ground floor, a central front door, and multiple windows and balconies on the upper floors.
Blueprint illustration of a three-story waterfront house with exterior stairs, multiple windows, and a front door, labeled 'WATERFRONT' at the bottom.

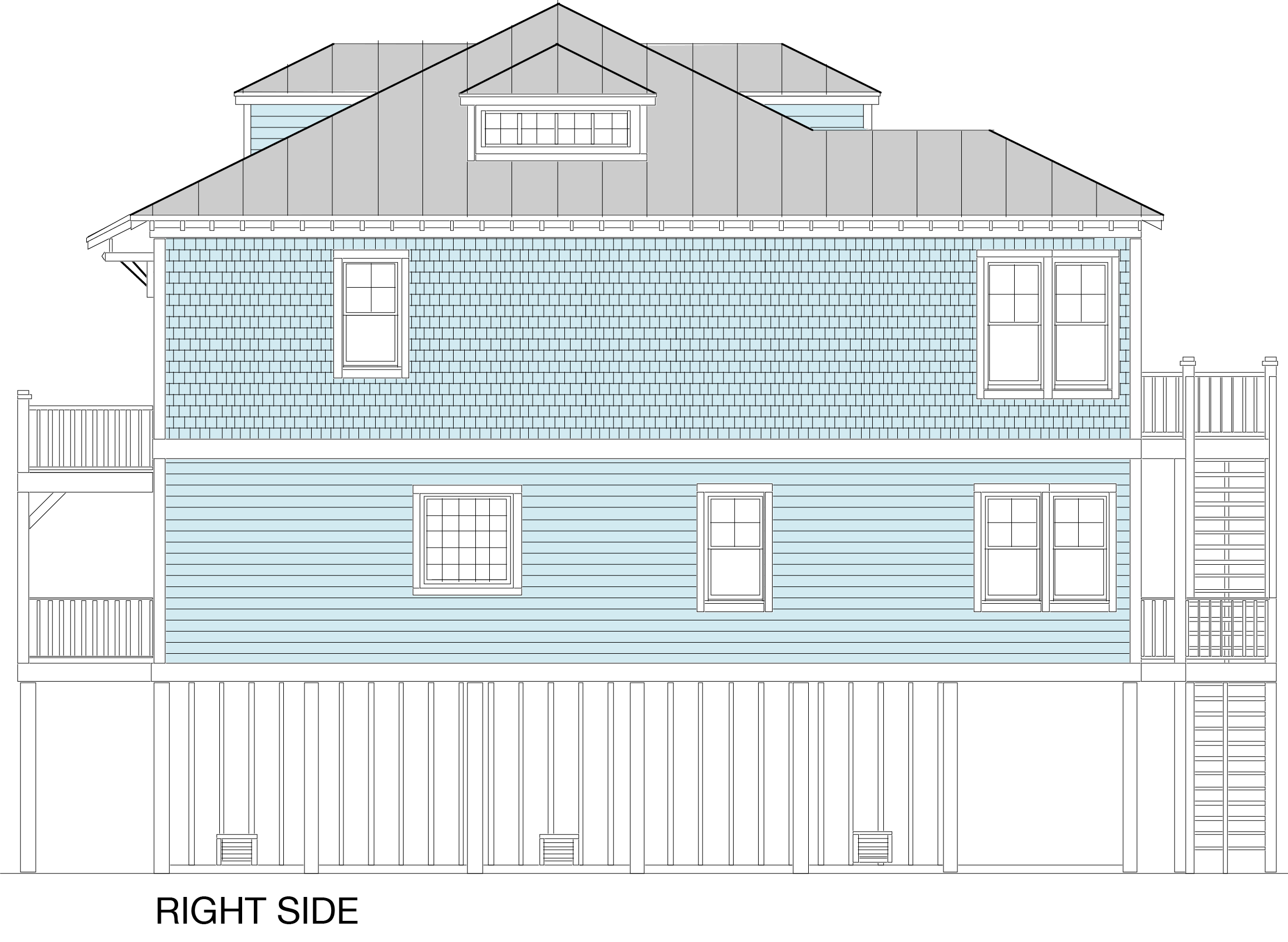

Architectural drawing of the right side of a two-story house with blue siding, several windows, and a staircase on each side.

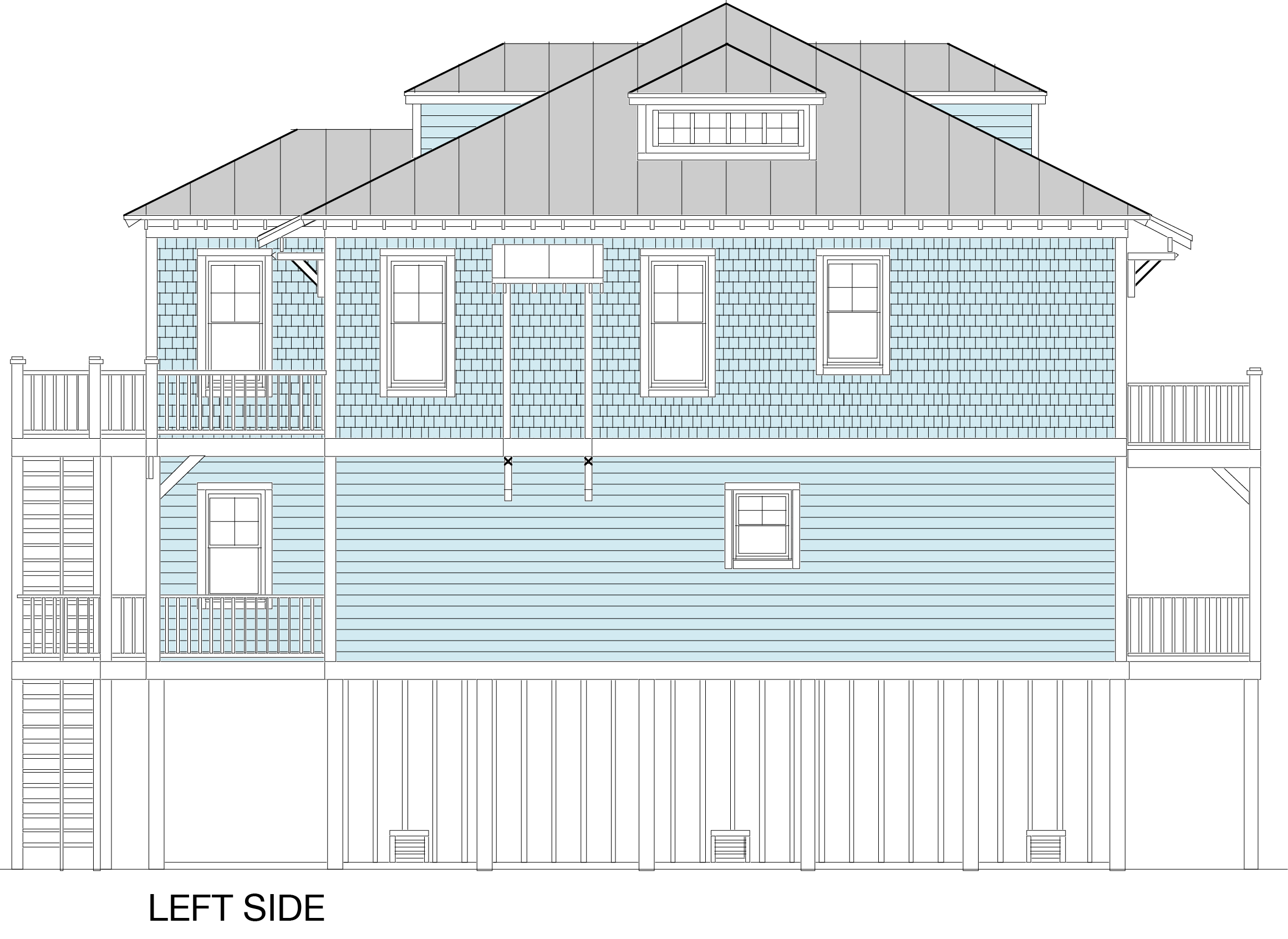

Architectural drawing of the left side elevation of a multi-story house with blue siding, windows, balconies, stairs, and a roof.

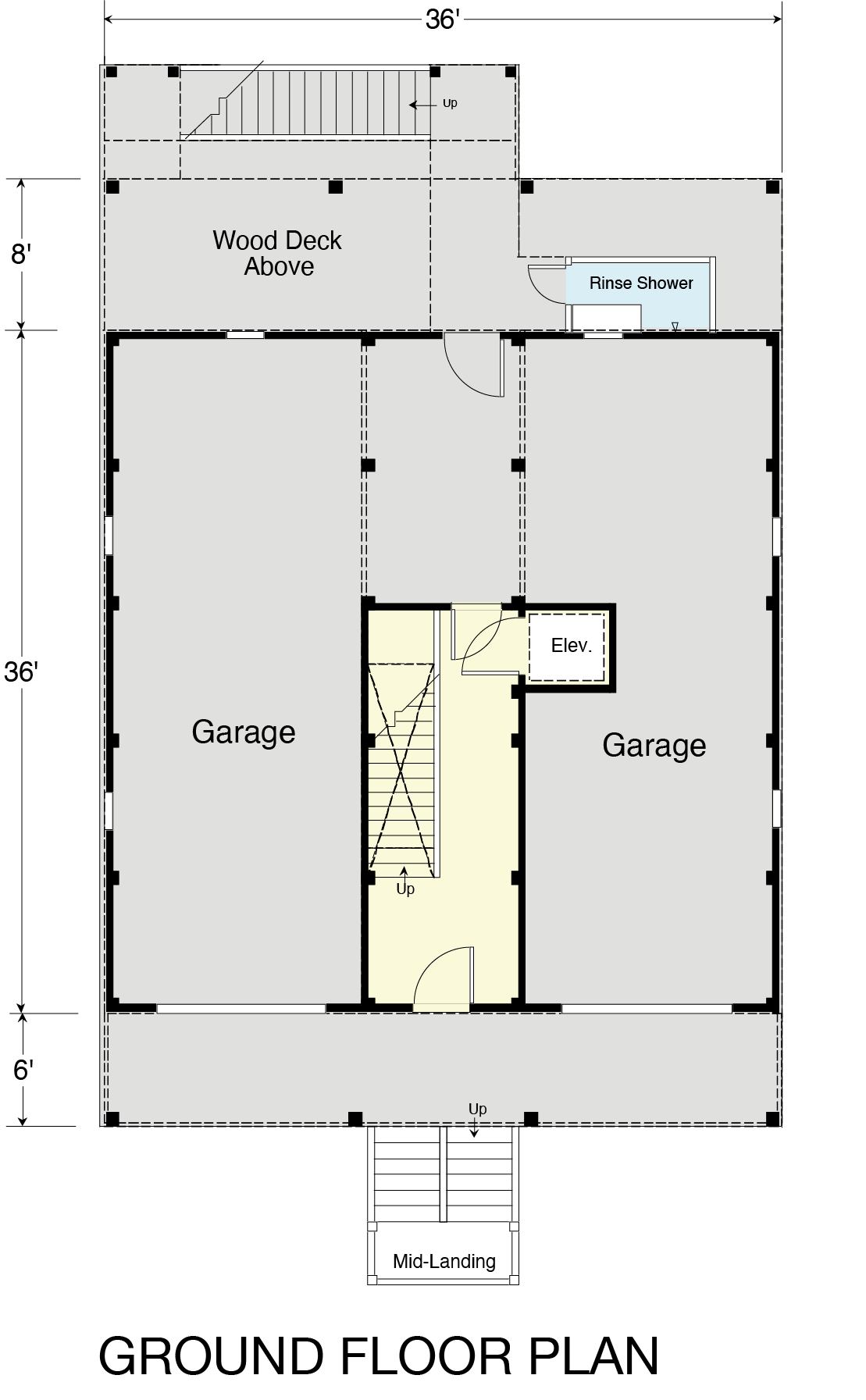

Floor plan of a house with two garages, a staircase, an elevator, a wood deck above, a rinse shower area, and a mid-landing with stairs leading up, all marked with dimensions.

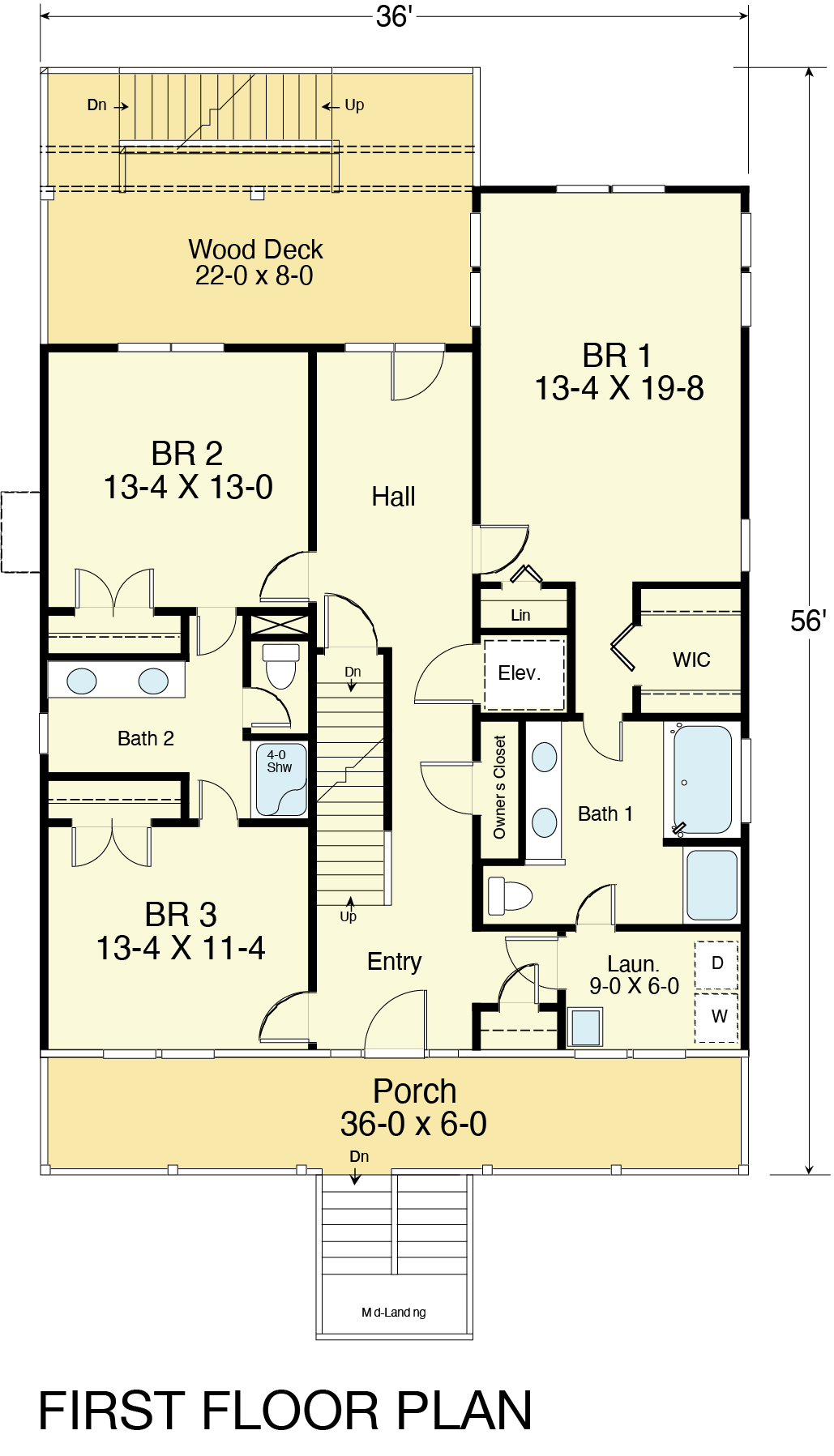

A detailed first floor architectural plan of a house, showing three bedrooms, two bathrooms, a porch, a hall, a laundry room, a wood deck, an elevator, closets, and stairs, with measurements in feet.

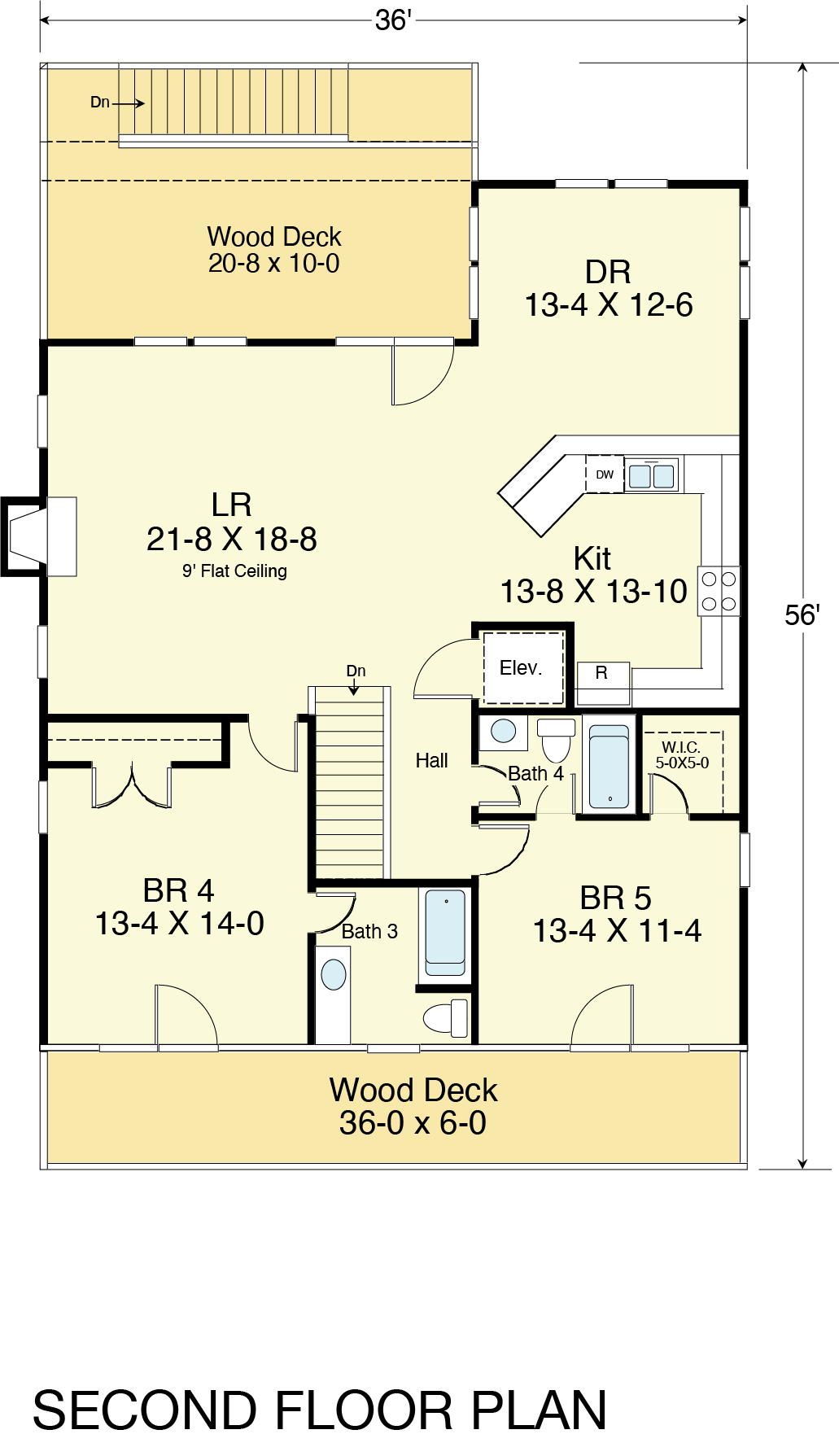

Second floor house plan with two bedrooms, two bathrooms, a living room, a kitchen, a dining room, a laundry area, a hallway, a stairway, an elevator, and two wood decks, one at the front and one at the back.

Square Feet

2816

Elevation

37’-10”

Number of Floors

3

Elevator

Yes

Bathrooms

4.5

Bedrooms

5

Dimensions

36’-0” wide x 56’-0” deep x 37’-10” high

Ground Floor Ceiling Height

--

First Floor Ceiling Height

9’-0”

Second Floor Ceiling Height

9’-0”

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Clearwater 2816-5E beach house plan spans 2,816 square feet. It boasts five spacious bedrooms, four-and-a-half bathrooms, and a convenient elevator for seamless access to all floors. The generously sized bedrooms provide ample space for comfort and relaxation.

KEY FEATURES

Ground Floor: This level includes garages for convenient parking, a rinse shower for washing off sand after a day at the beach, and an enclosed entry foyer adding privacy and security.

First Floor: The primary bedroom on this floor offers a generous ensuite bathroom with a bathtub, shower, two sinks, a walk-in closet, and access to the shared laundry room. Additionally, this floor features a foyer/hall area, an owner's closet in the hall, two additional bedrooms, a shared bathroom with two sinks and a private water closet, a front porch for enjoying the outdoors, and a wood deck at the back of the house.

Second Floor: The well-appointed kitchen on the second floor opens to the living room with a cozy fireplace and a dining area. Two additional bedrooms are located on this floor, one with an ensuite bathroom and the other sharing a bathroom. The second floor also boasts wood decks in both the front and back of the house, enhancing outdoor living space and providing opportunities for relaxation and entertaining.
