Portside 2288-4E

Over 2,000 Sq. Ft.

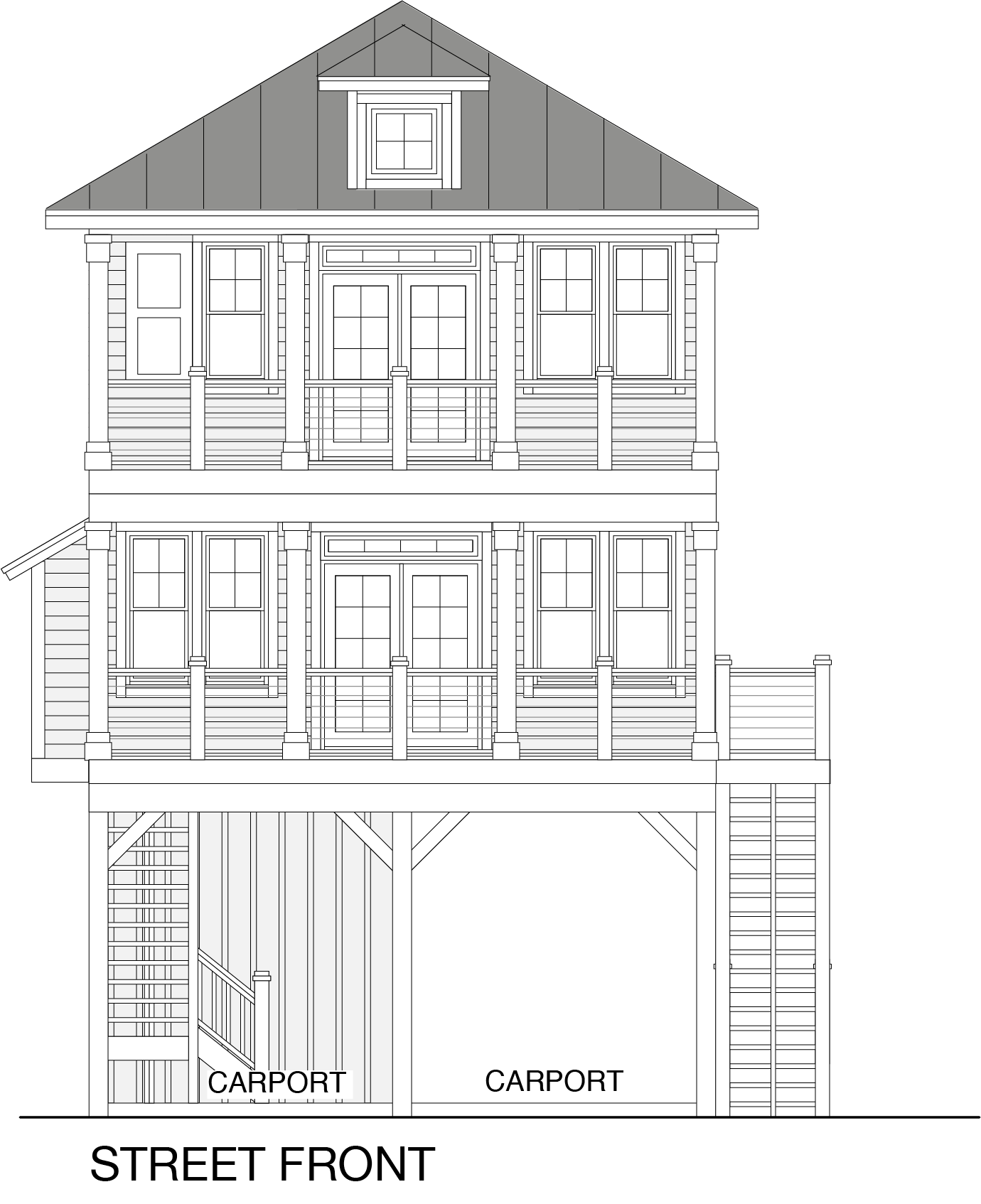

Architectural drawing of a house's street front elevation, showing two stories with a roof dormer, multiple windows, front porch, and a two-car carport at the ground level.
Line drawing of the rear view of a two-story house with a gable roof, three double-hung windows, a deck with railing, and a fenced yard.

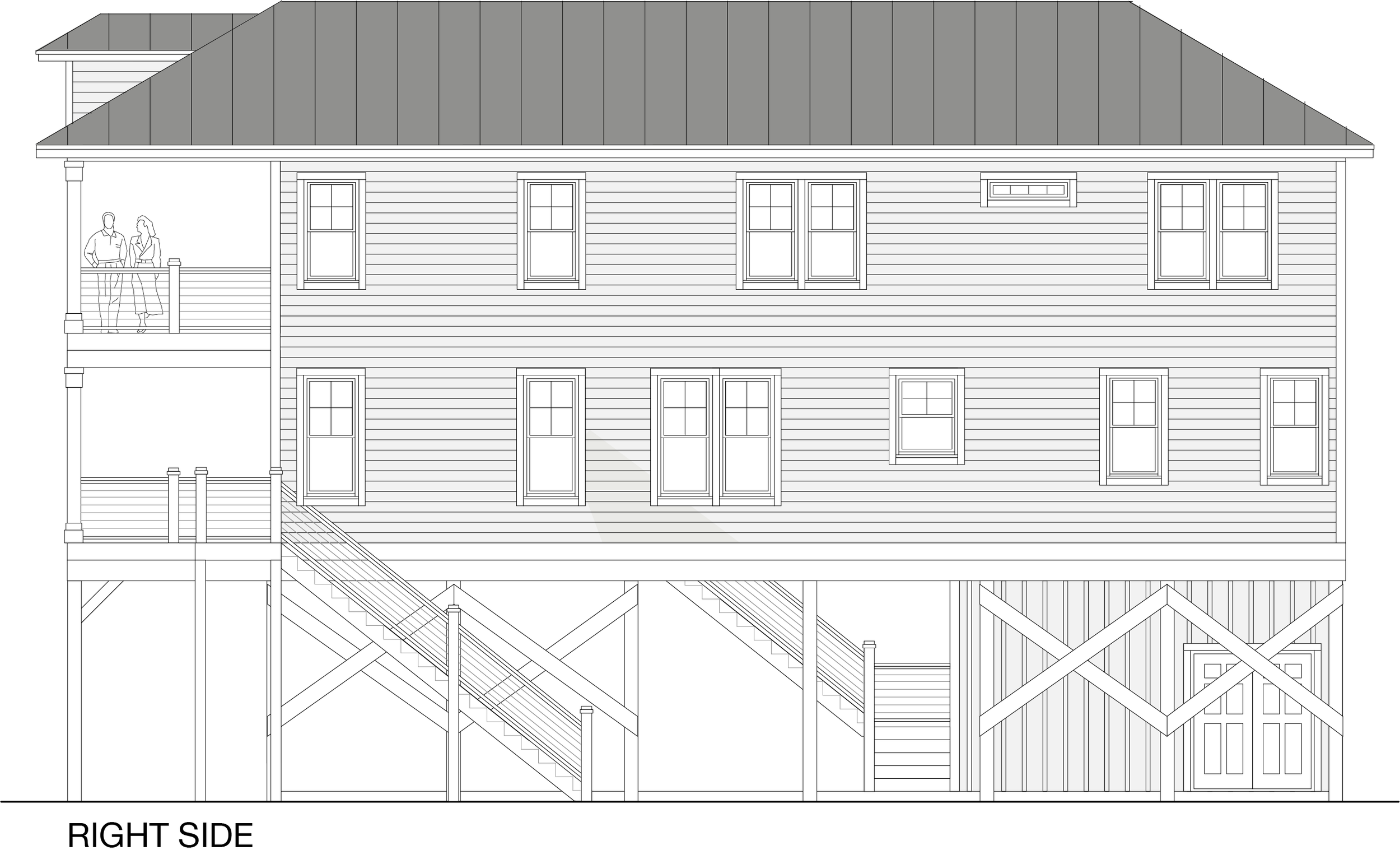

Blueprint drawing of the right side of a multi-story residential building with windows, a deck with people, and external staircase.

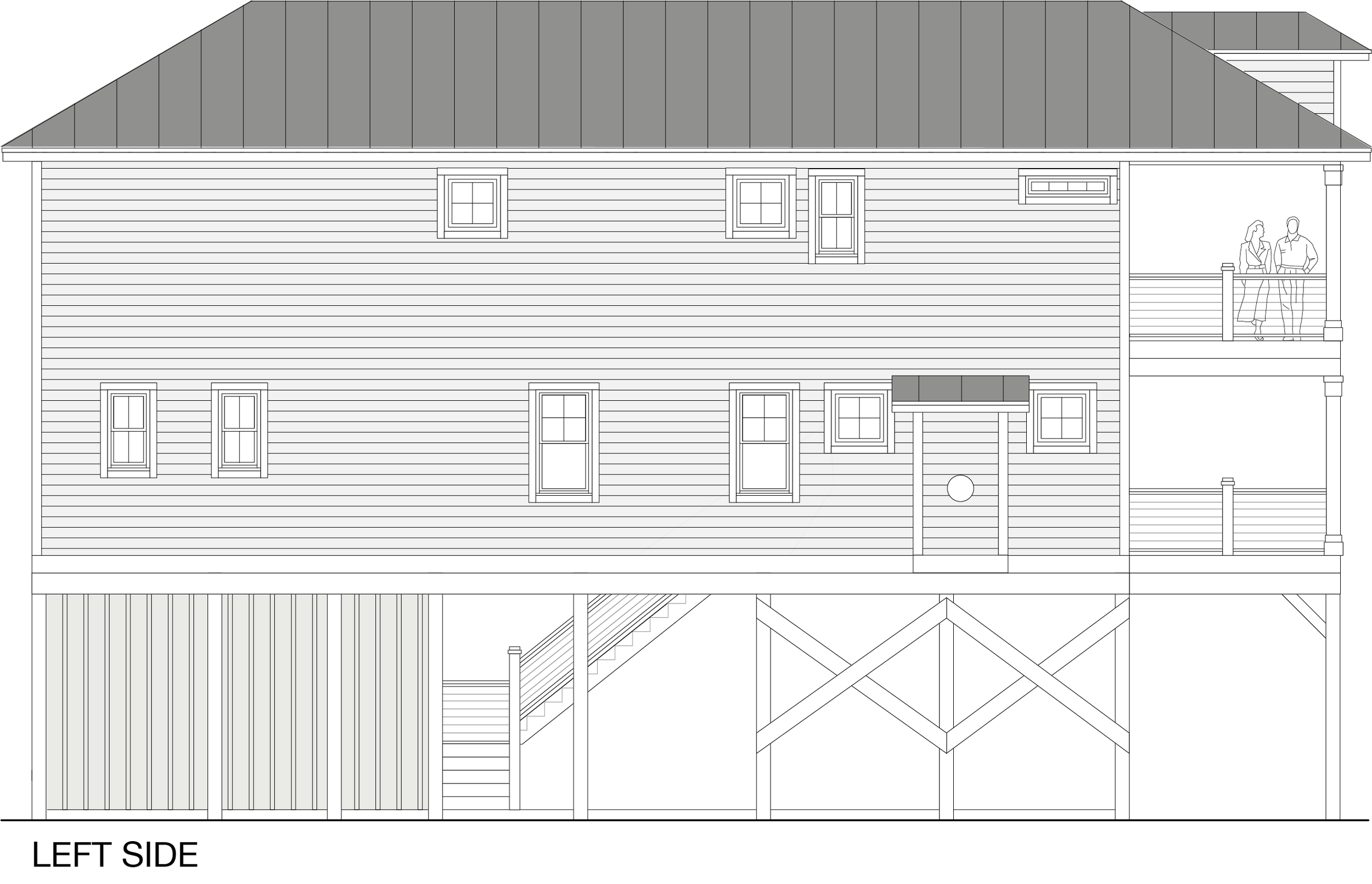

Architectural drawing of the left side of a two-story house with siding exterior, multiple windows, and a balcony with two people standing on it. The house is elevated on stilts with stairs leading down the side.
First floor plan of a building with a storage room, a 2-car carport, a 1-car carport, and staircases, including measurements.

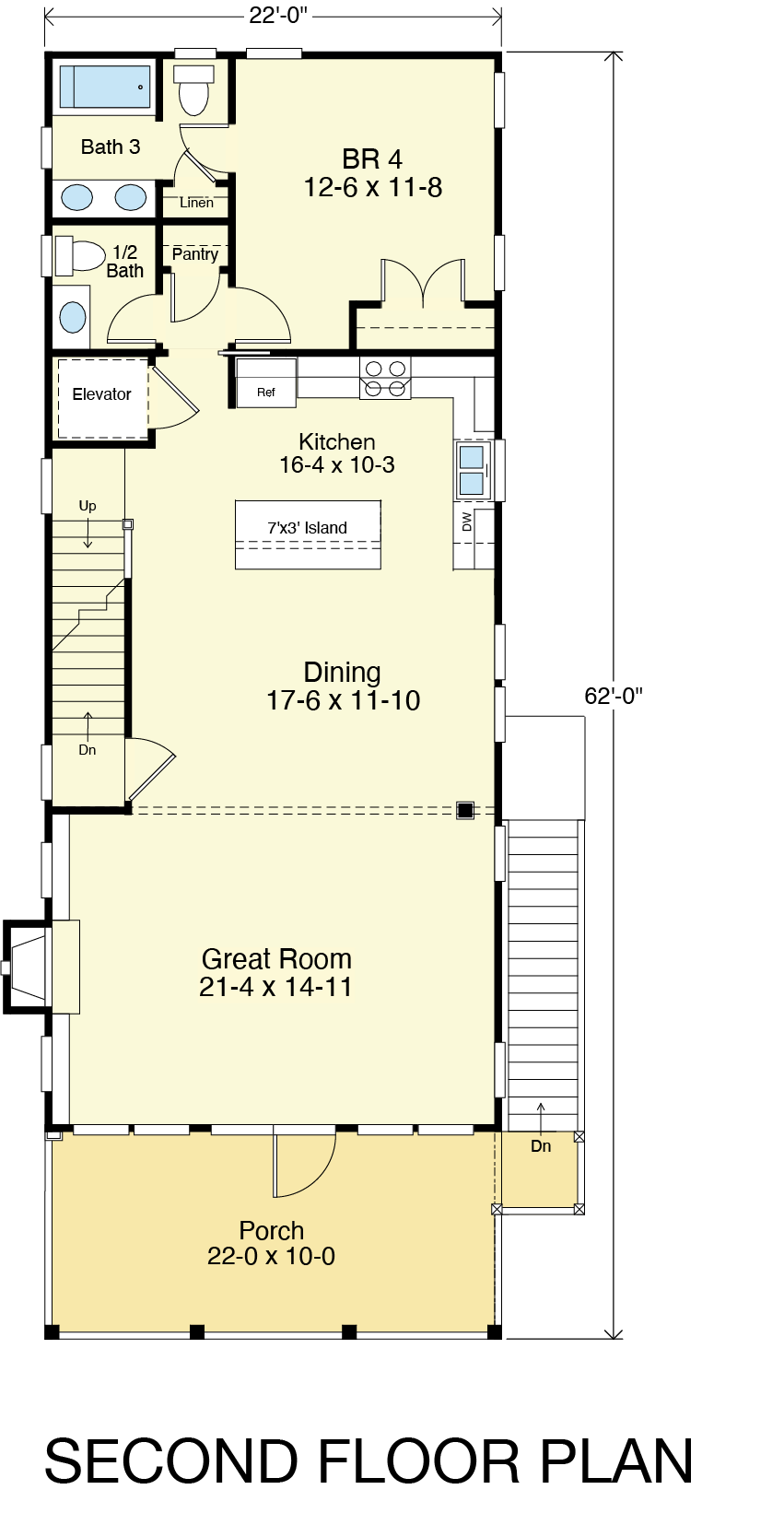

Second floor plan of a house showing a porch, great room, dining area, kitchen with island, bedroom 4, bathroom, linen closet, pantry, elevator, stairs, and additional rooms.

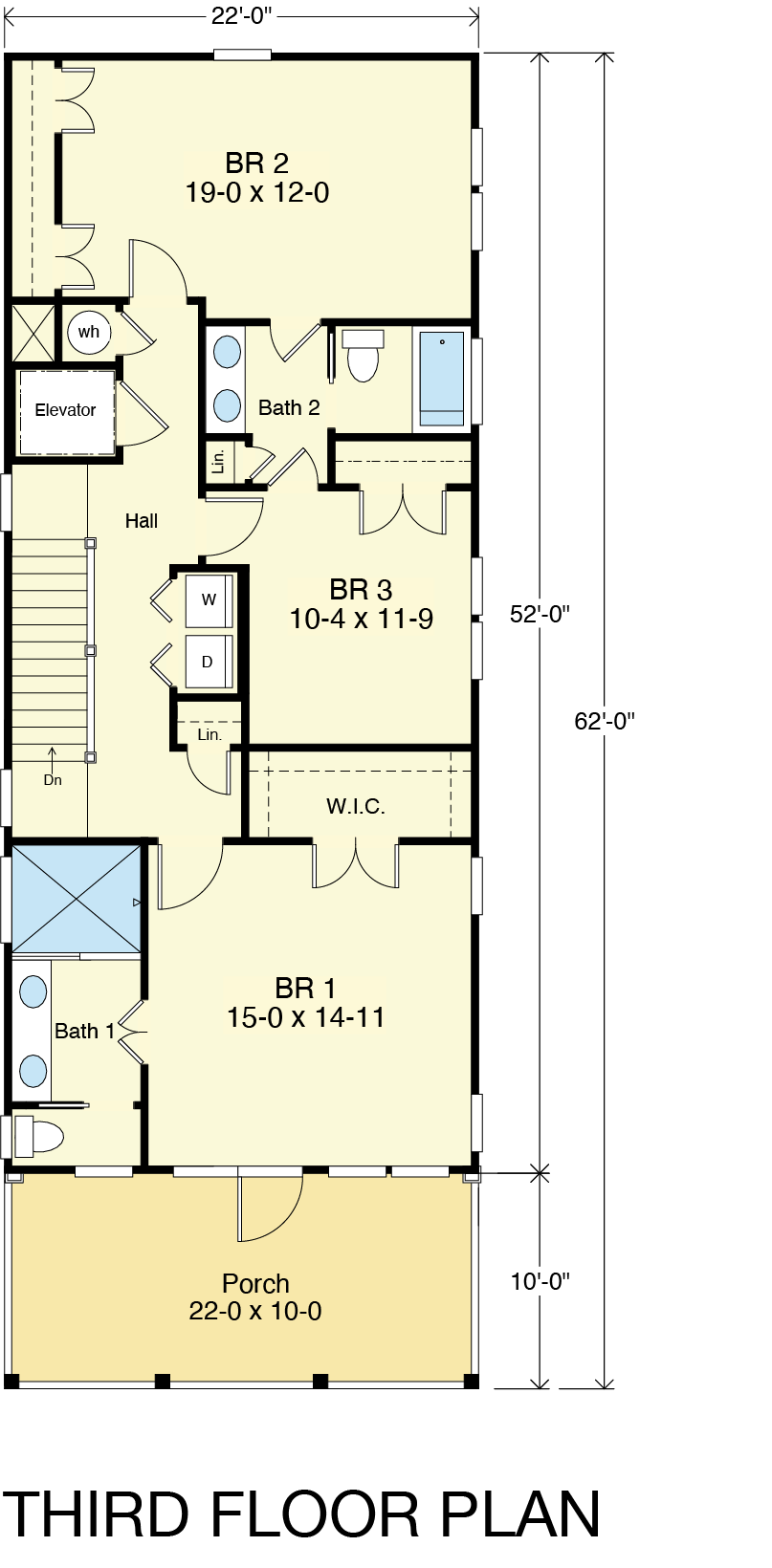

Third floor house plan with three bedrooms, two bathrooms, a porch, hall, laundry area, and an elevator.

Square Feet

2288

Elevation

39’-2”

Number of Floors

3

Elevator

Yes

Bathrooms

3.5

Bedrooms

4

Dimensions

22'-0" wide x 62'-0" deep x 39'-2" high

Ground Floor Ceiling Height

—

First Floor Ceiling Height

9’-0"

Second Floor Ceiling Height

9’-0"

Third Floor Ceiling Height

9'-0"

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Portside has 2,288 square feet of living area, an elevator, four bedrooms, and 3 1/2 baths. Made for a very narrow lot, this plan takes design cues from Classic Charleston cottages and has two versions with the Living Area on the first or second floor.
