Surf 1588-4E

Under 2,000 Sq. Ft.

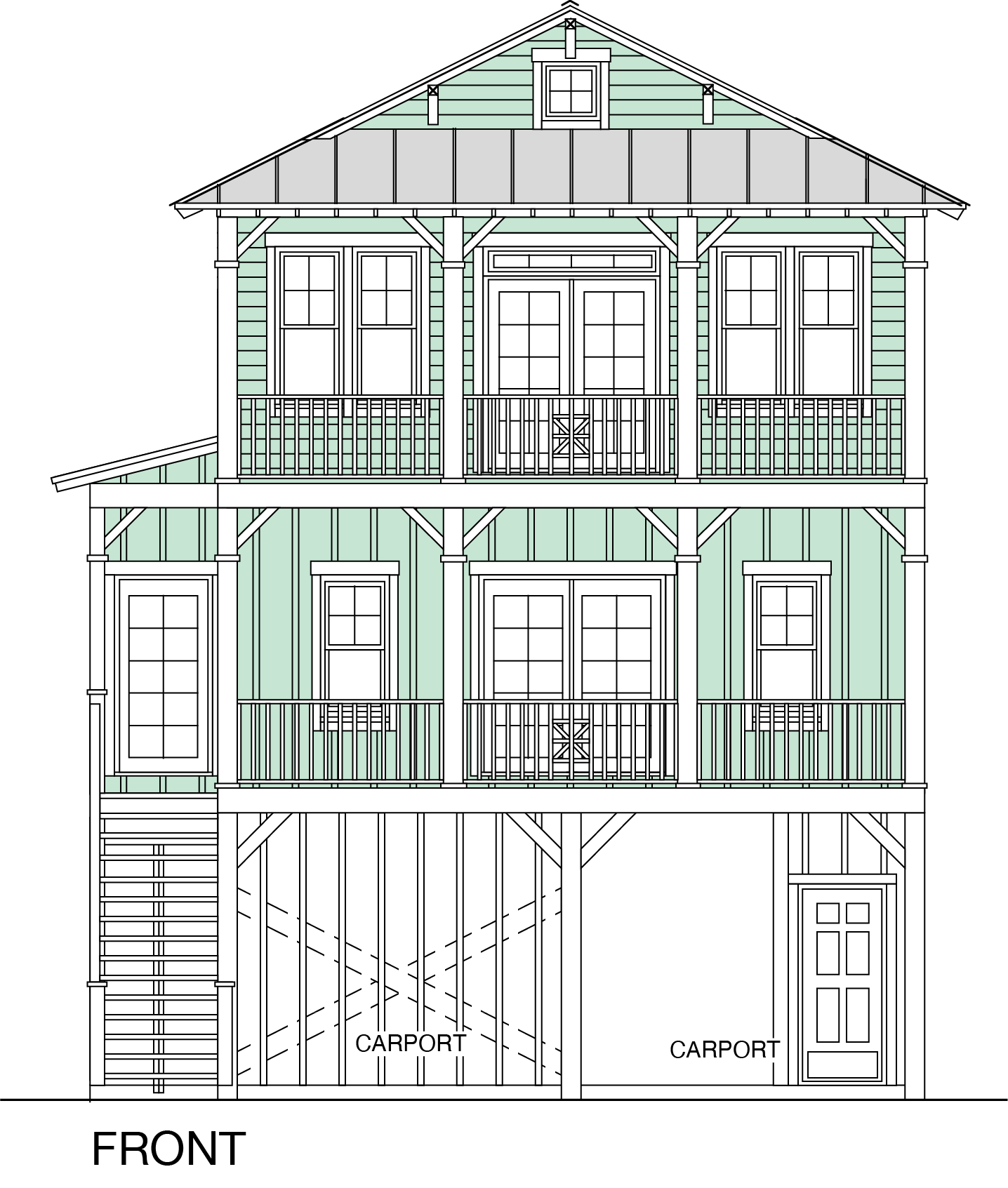

A detailed architectural drawing of a three-story house with a front porch, balcony, and various windows. The house has a gable roof, exterior siding, and multiple carports on the ground level.

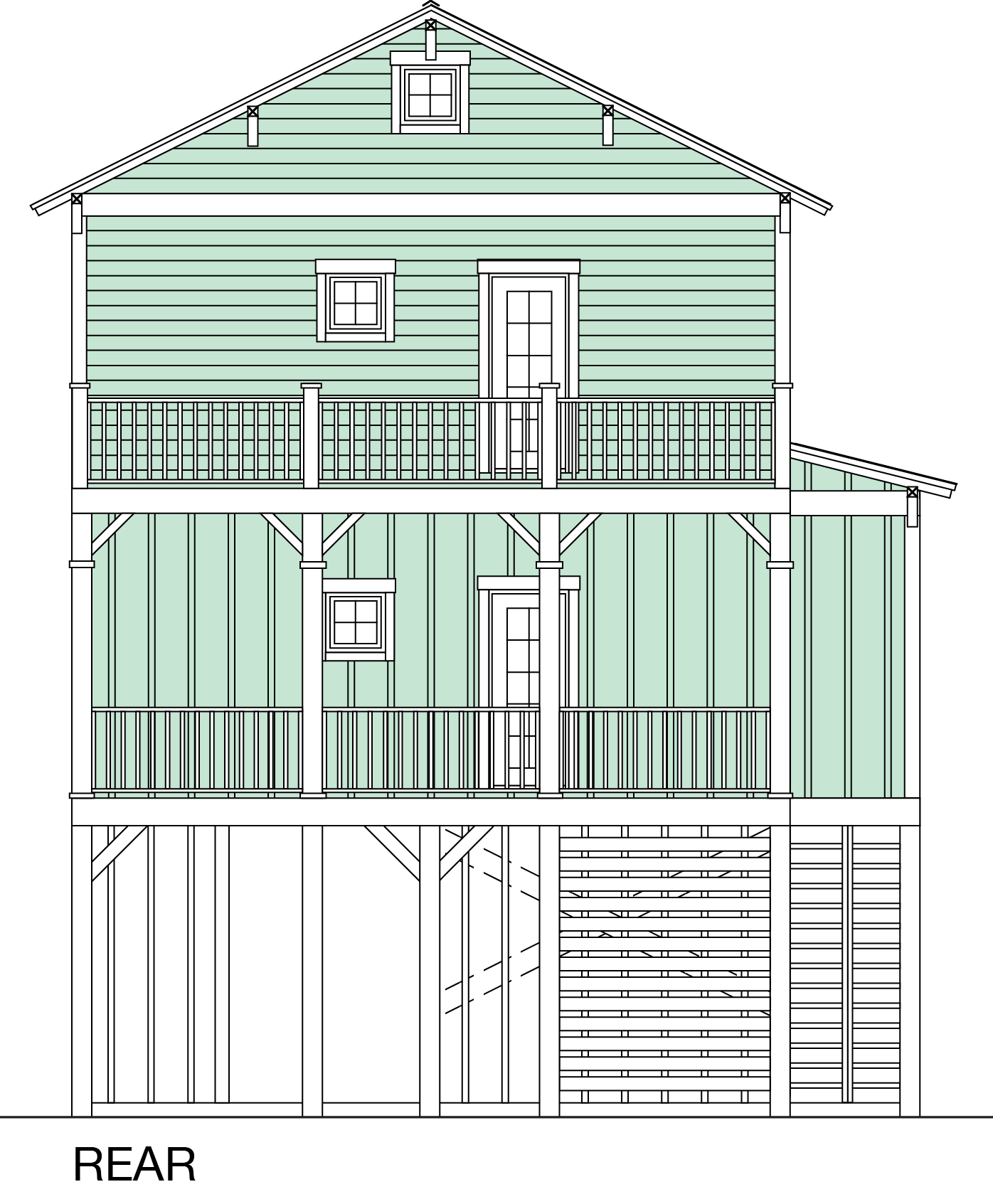

Blueprint drawing of a three-story house with a green exterior, balconies on the second and third floors, and a sloped roof. The house has multiple windows and doors, with the lower level showing an open framework for construction.
Architectural drawing of the right side of a three-story house with a sloped roof, featuring windows, balconies, and exterior wall paneling.

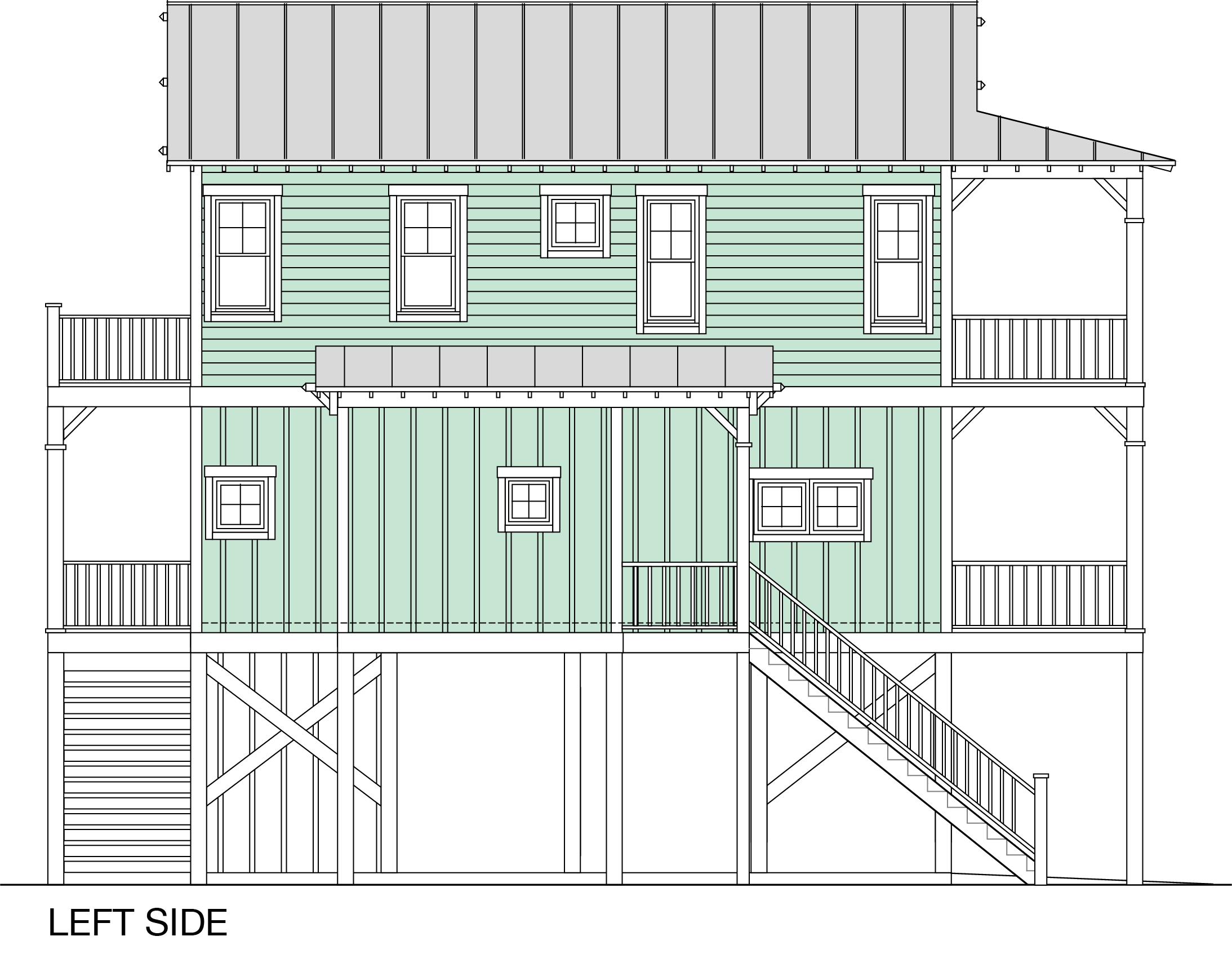

Architectural drawing of the left side of a two-story house with light green siding, a metal roof, multiple windows, and a staircase leading to the upper level.
Ground floor plan of a building featuring a two-car carport at the front, storage room, an optional rinse shower, and a staircase leading up, with dimensions and labels for different areas.

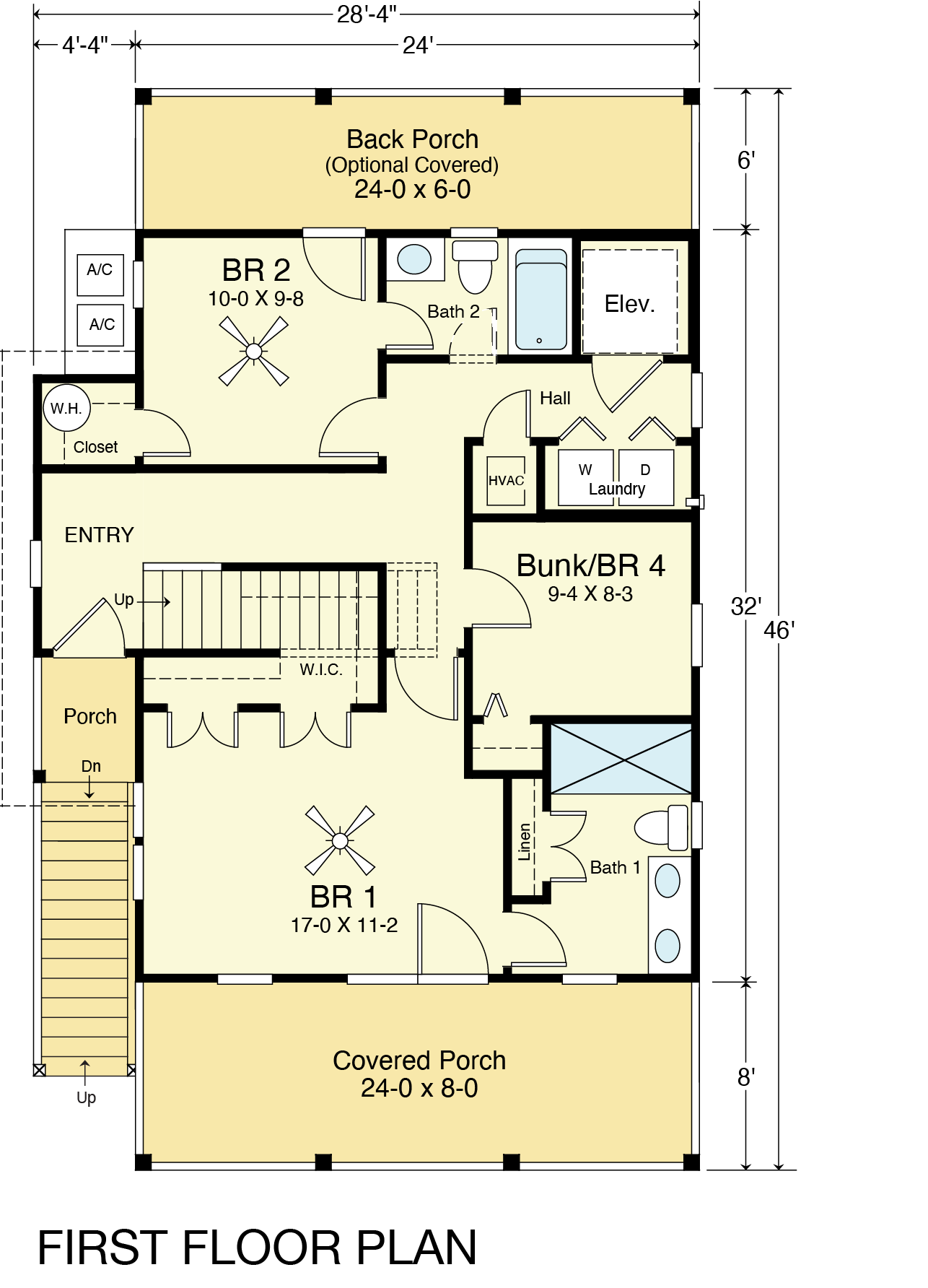

Detailed first floor plan of a house showing two porches, bedrooms, bathrooms, a kitchen, laundry, hallways, an elevator, and an optional covered back porch.

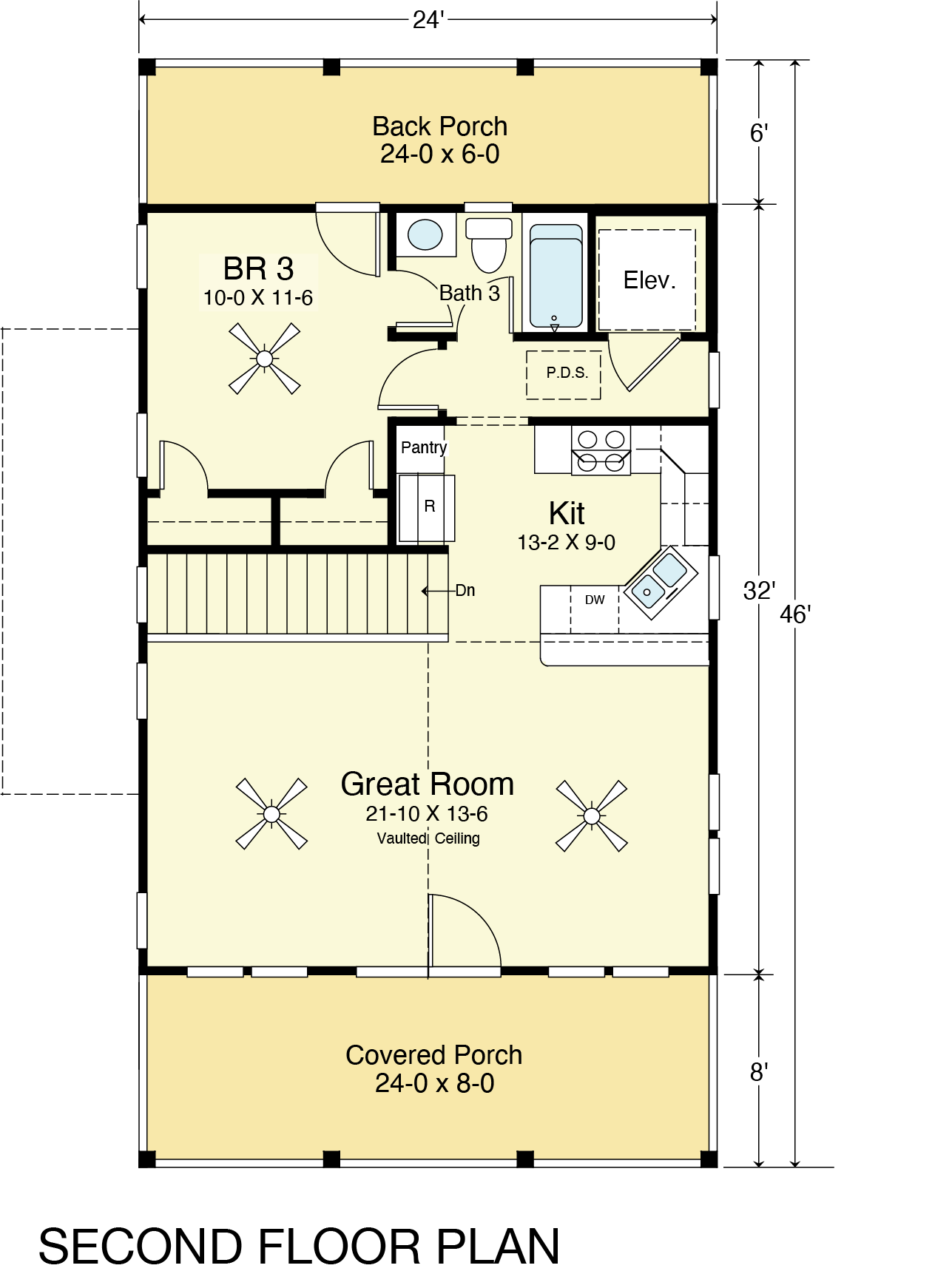

Second floor house plan showing a great room, kitchen, bedroom 3, bathroom 3, a back porch, and a covered porch, with dimensions and labels for each area.

Square Feet

1588

Elevation

37’-2”

Number of Floors

3

Elevator

Yes

Bathrooms

3

Bedrooms

4

Dimensions

24′-8″ wide x 46′-0″ deep x 37′-2″ high

Ground Floor Ceiling Height

8′-0″

First Floor Ceiling Height

9′-1.5″

Second Floor Ceiling Height

9′-1.5″

Third Floor Ceiling Height

N/A

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Surf 1588-4E is one of our cottage plans designed for homes under 2,000 square feet. It features four bedrooms, three bathrooms, and an elevator, making it a unique and sought-after choice for rentals.

Ground Floor: Includes a 4-car carport, storage, and the option for a rinse shower.

First Floor: The front has a covered porch, and the back has an optional covered porch. The main bedroom is located at the front, with an ensuite bathroom and walk-in closet. Additionally, there is a bunk room, a guest bedroom, a laundry closet in the hall, a shared bathroom, and an entry area.

Second Floor: This floor features a covered porch at the front and back, a great room with a vaulted ceiling, a kitchen, a pantry, a guest bedroom with two closets, and a shared bathroom.
