Ocean Ridge Tower 3351-5E

Over 2,000 Sq. Ft.

Architectural drawing of a multi-story house with a front staircase, garage doors, multiple windows with shutters, a balcony, and a tower with a weather vane on top.
Architectural drawing of a multi-story waterfront building with balconies, multiple windows, and a decorative weather vane on the roof.

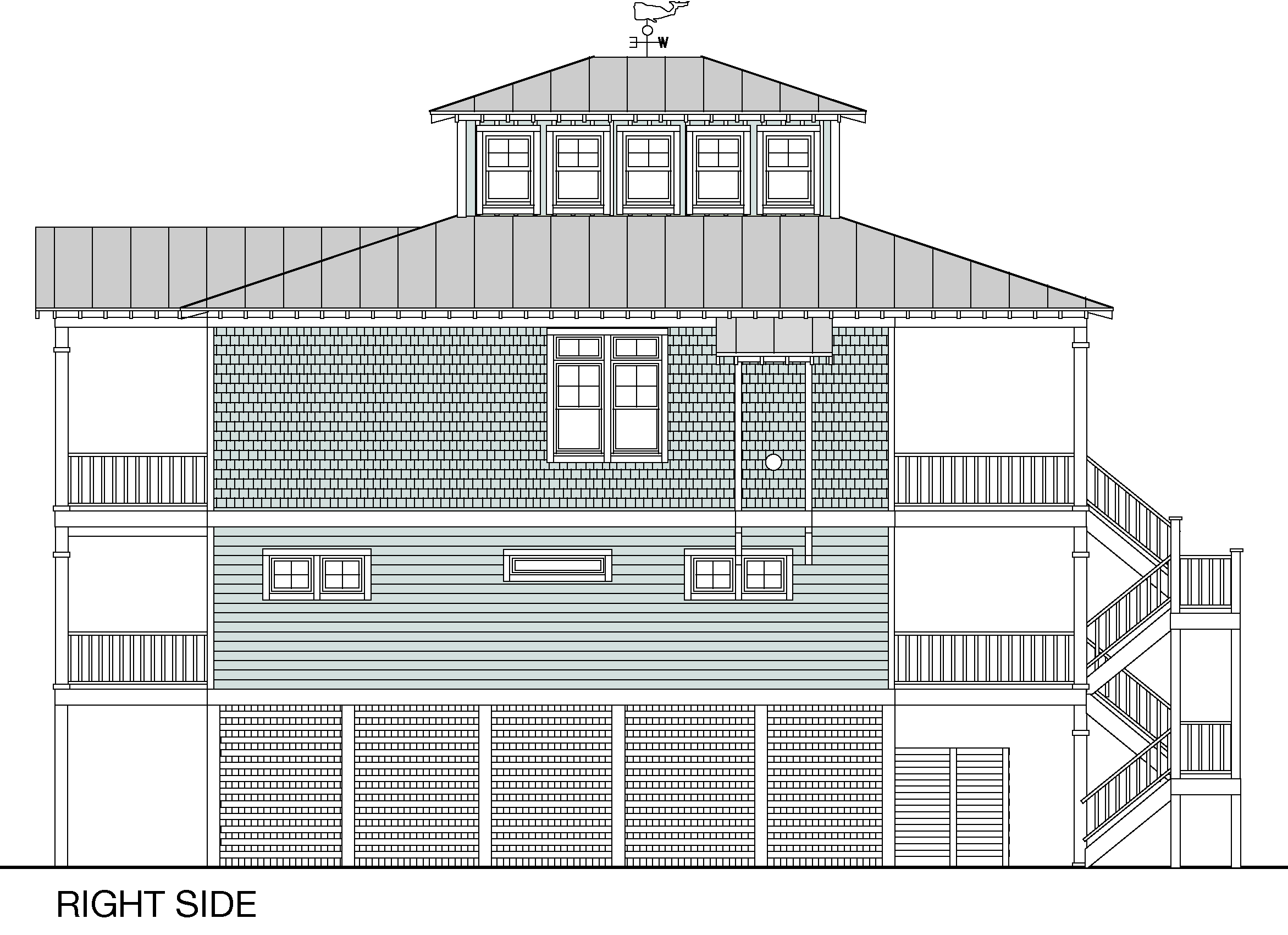

Architectural drawing of the right side of a multi-story house with a stairway on the exterior, a variety of window styles, and a roof with a wind direction indicator.

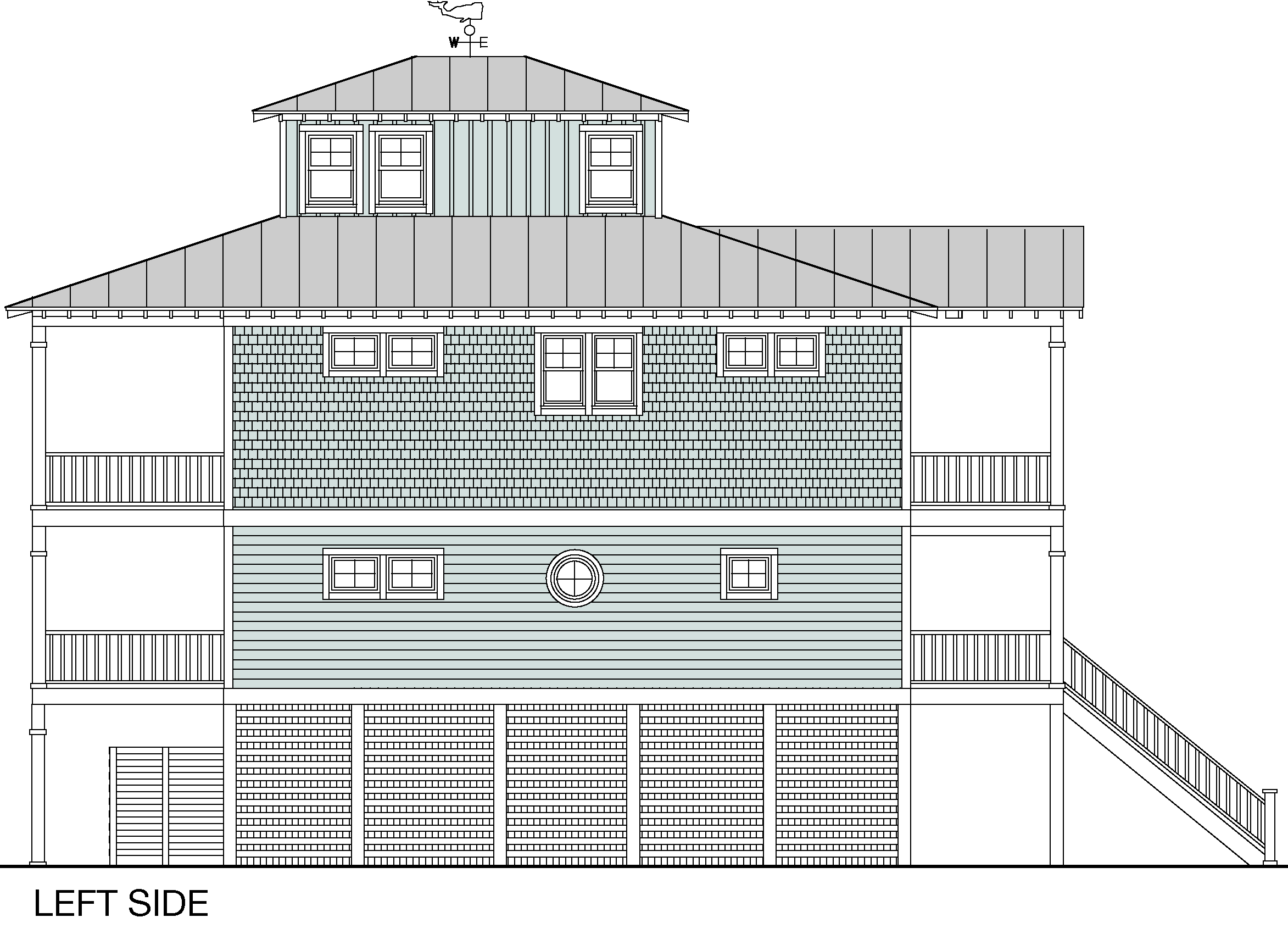

Line drawing of the left side elevation of a multi-story house with vinyl siding, shingle siding, and a gabled roof, featuring multiple windows, a spiral window, porches with railings, and a staircase on the right side.
Ground floor plan of a house with an entry porch, two driveways, two carports or garages, stairs, storage areas, an elevator, a bathroom with a shower, and additional storage rooms.

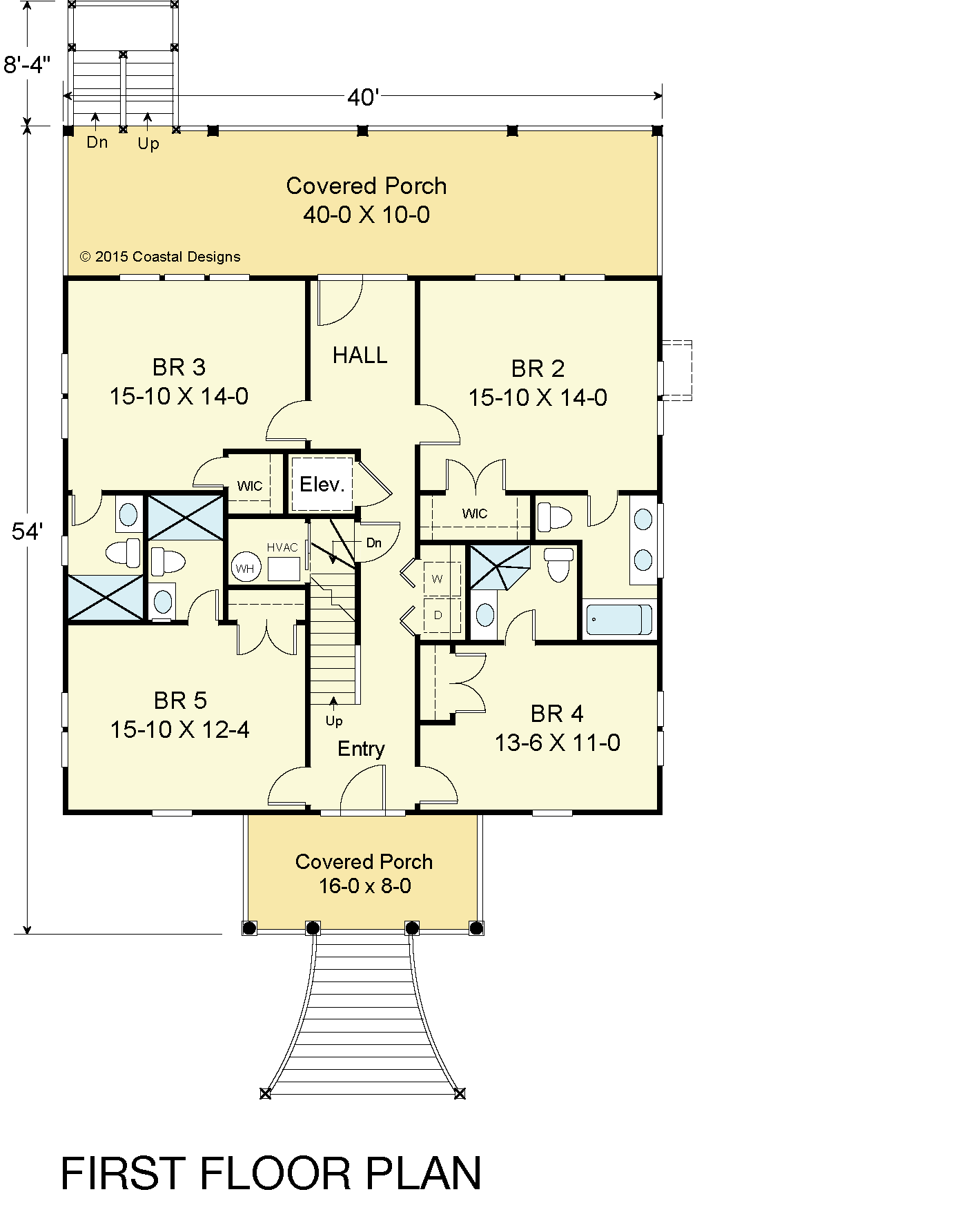

Floor plan of a house with a covered porch at the front leading into a central entryway. There are five bedrooms labeled BR 2, BR 3, BR 4, BR 5, and an additional bedroom, with associated bathrooms and walk-in closets. The house has a stairway, an el

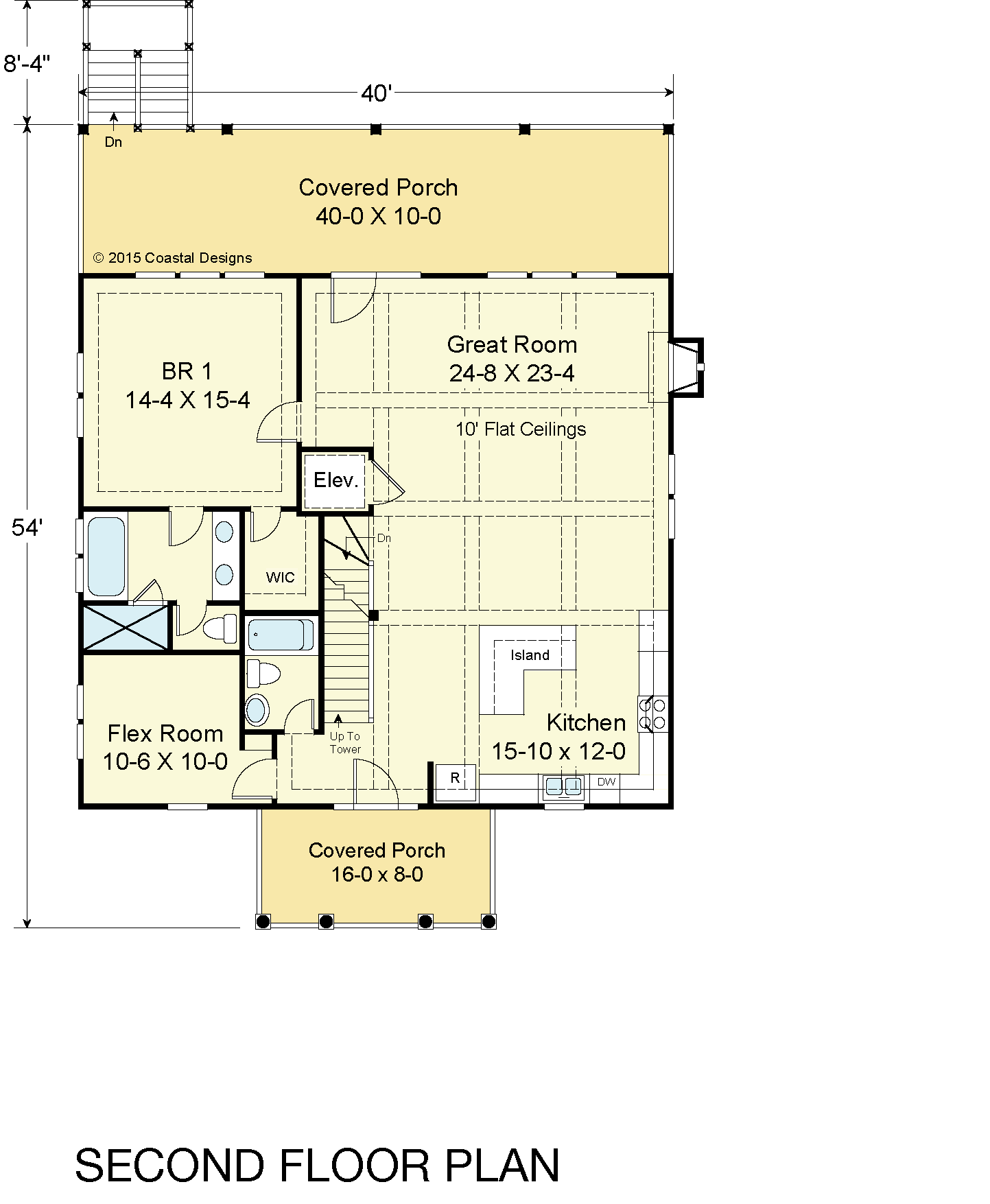

Floor plan of the second floor in a house, including a covered porch, great room, bedroom, flex room, kitchen, bathroom, walk-in closet, and staircases.

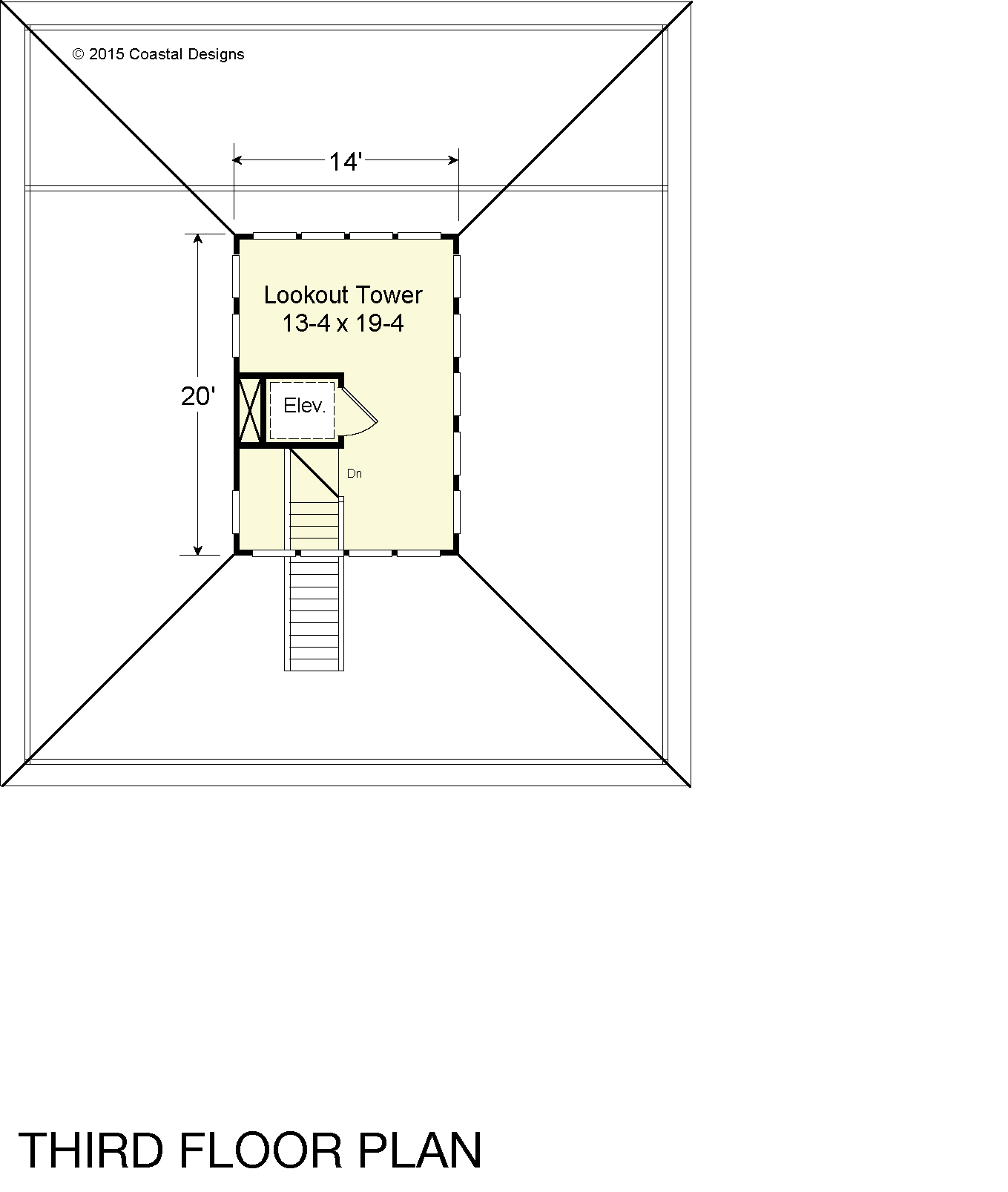

Floor plan of the third floor showing a lookout tower measuring 13 feet 4 inches by 19 feet 4 inches, with a staircase, elevator, and rooftop.

Square Feet

3351

Elevation

42’-8”

Number of Floors

4

Elevator

Yes

Bathrooms

5.5

Bedrooms

5

Dimensions

40’-0” wide x 54’-0” deep x 42’-8” high

Ground Floor Ceiling Height

8’-0”

First Floor Ceiling Height

8’-0”

Second Floor Ceiling Height

10’-0” Ceilings (Coffered)

Third Floor Ceiling Height

9’-0”

DOWNLOAD PLAN (PDF)

DESCRIPTION

The Ocean Ridge Tower 3351-5E is a popular plan, featuring four bedrooms on the 1st floor, a 2nd-floor great room with a kitchen that is excellent for retirees, and a small flex room in the back that could serve as a home office or craft room. An elevator to the tower allows total access. A similar plan, without the tower, is the Ocean Bluff 3163-6E. This plan is only 40’ wide and 54’ deep.
